Changing the labels of the plot axes

Sherpa datasets have set_xlabel and set_ylabel methods that let you customise the labels in plots. However, note that these labels used whatever the analysis setting (for PHA data) and may appear in screen output.

The following code loads in the same dataset three times and sets the same energy range for all of them:

from sherpa.astro import ui
from sherpa.utils.logging import SherpaVerbosity

with SherpaVerbosity("ERROR"):
    ui.load_pha(1, "3c273.pi")
    ui.load_pha(2, "3c273.pi")
    ui.load_pha(3, "3c273.pi")

ui.notice(0.5, 5)

The output of this is

dataset 1: 0.00146:14.9504 -> 0.4672:5.0224 Energy (keV)
dataset 2: 0.00146:14.9504 -> 0.4672:5.0224 Energy (keV)
dataset 3: 0.00146:14.9504 -> 0.4672:5.0224 Energy (keV)

The x label of the second dataset is set to "X axis [2]", and the x and y labels of the third dataset to "xx" and "yy" respectively with the following:

data2 = ui.get_data(2)
data3 = ui.get_data(3)

data2.set_xlabel("X axis [2]")
data3.set_xlabel("xx")
data3.set_ylabel("yy")

After changing the labels, the third dataset is changed to use "wavelength" units:

ui.set_analysis(3, "wave")

This creates the following output (note that the screen message uses the manually-specified units for the X axis rather than the expected "Angstrom" message, thanks to the set_xlabel call for this dataset:

dataset 3: 2.46862:26.5377 xx

The data plots generate the following three figures:

ui.plot_data(1)
ui.plot_data(2)
ui.plot_data(3)

Figure 1: The default labels

Figure 1: The default labels

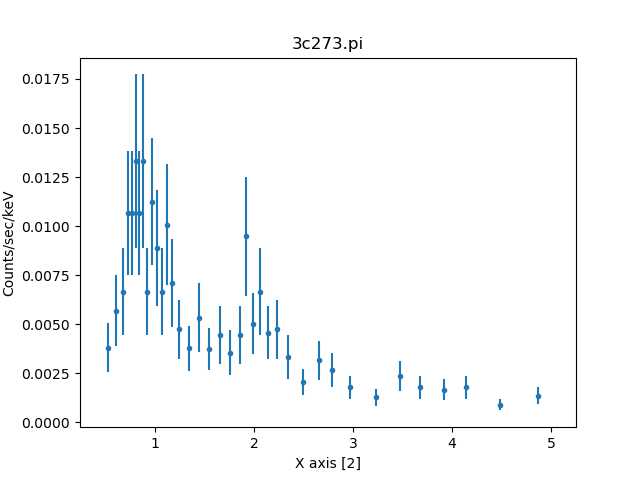

Figure 2: Only the X axis has been changed

Figure 2: Only the X axis has been changed

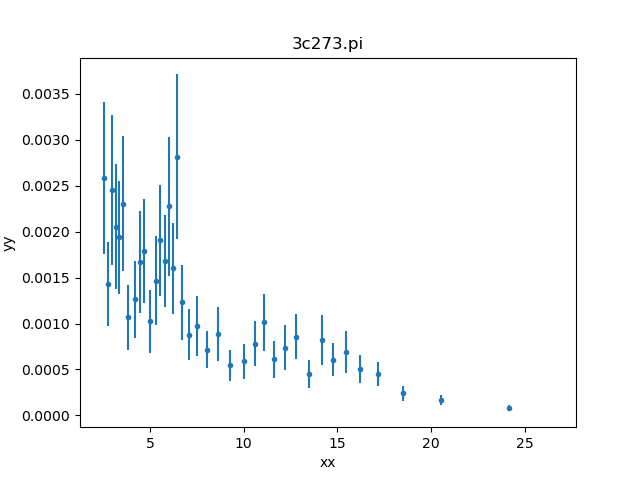

Figure 3: Changing both axis labels

Figure 3: Changing both axis labels
