Chapter 6
ACIS: Advanced CCD Imaging Spectrometer

6.1  Introduction & Layout

Figure 6.1: A schematic drawing of the ACIS focal plane; insight to the terminology is given in the lower left. Note the aimpoints: on S3 (the `+') and on I3 (the `x'). Note the differences in the orientation of the I and S chips, important when using subarrays (Section 6.13.1). Note also the (Y, Z) coordinate system and the target offset convention (see Chapter 3) as well as the SIM motion (+/−Z). This view is along the optical axis, from the sky toward the detectors, (-X). The numerous ways to refer to a particular CCD are indicated: chip letter+number, chip serial number, and ACIS chip number (CCD_ID); see also Table 6.1. As indicated, S3 and S1 are back-illuminated (BI) CCDs, and the rest are front-illuminated (FI) CCDs. The node numbering scheme and the row/column directions are illustrated lower center. The row and column pixel indices run from 0 to 1023. The row direction corresponds to CHIPX (1 to 1024 pixels). The column direction corresponds to CHIPY (1 to 1024 pixels); the row at CHIPY = 1 is closest to the frame store.

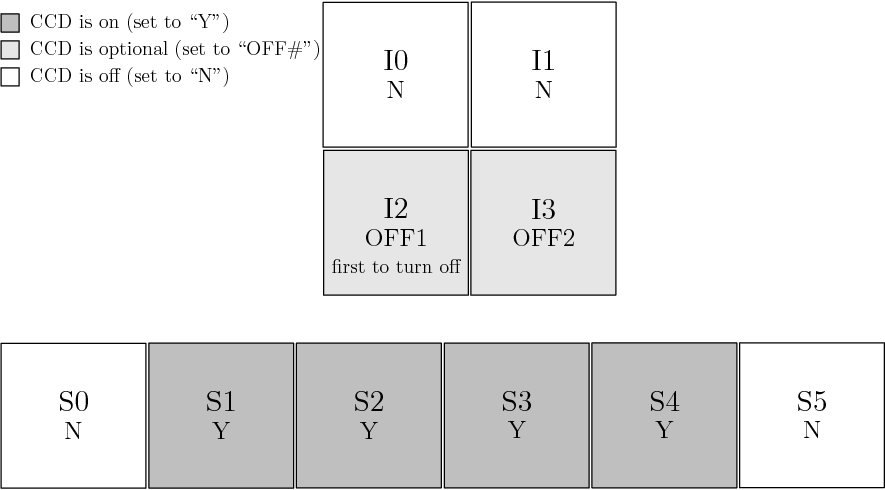

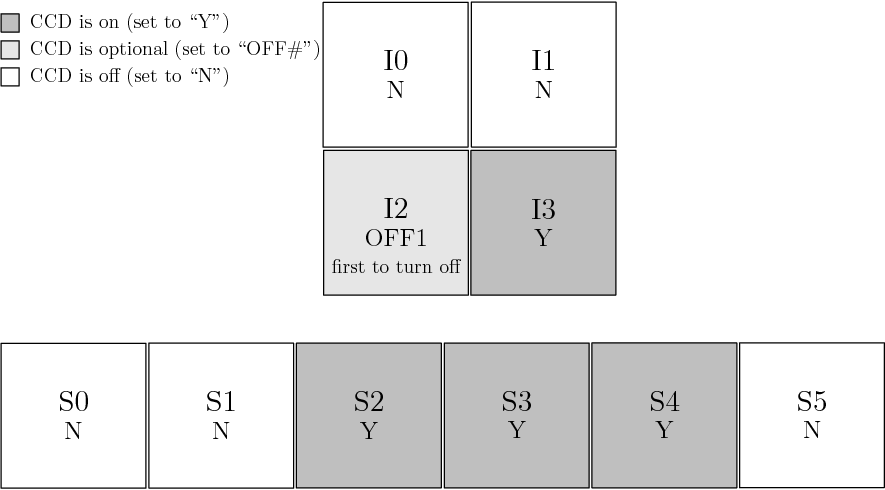

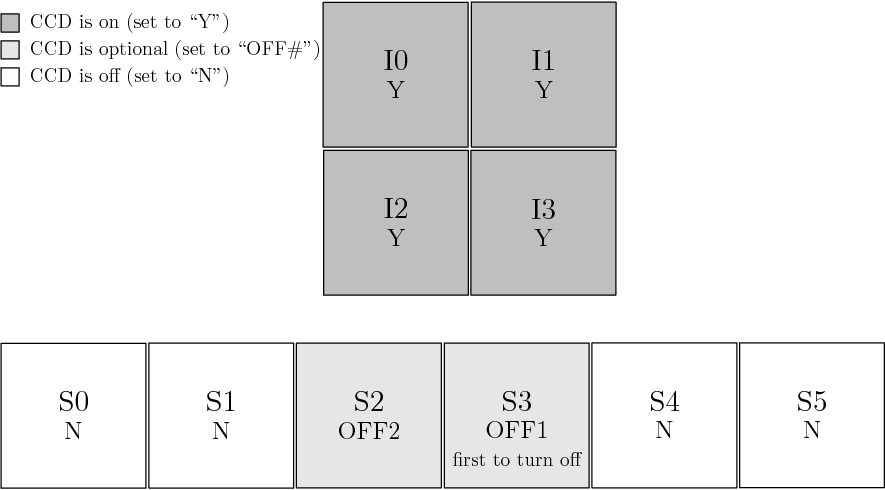

Figure 6.2: A schematic drawing of the ACIS focal plane, not to scale. The ACIS-I array consists of chips I0-I3 (shaded in the upper figure). The ACIS-S array consists of chips S0-S5 (shaded in the lower figure). The view is along the optical axis in each case, from the sky toward the detectors (−X); see also Figure 6.1 for more details. See the discussion in Section 6.20 for information on selecting CCDs.

6.2  Basic Principles

6.3  Optical Blocking Filter & Optical Contamination

6.4  Calibration

6.5  Quantum Efficiency and Effective Area

Figure 6.3: The quantum efficiency (convolved with the transmission of the appropriate optical blocking filter) of the FI CCDs (from a row nearest the read-out) and the two BI CCDs as a function of energy. S3 is somewhat thicker, hence more efficient, than S1. These curves include the effects of molecular contamination, as discussed in the text.

Figure 6.4: The HRMA/ACIS predicted effective area versus the energy on a log scale. The dashed line is for the FI CCD I3, and the solid line is for the BI CCD S3. These curves include the effects of molecular contamination, as discussed in the text.

Figure 6.5: The HRMA/ACIS predicted effective area versus the energy on a linear scale. The dashed line is for the FI CCD I3, and the solid line is for the BI CCD S3. These curves include the effects of molecular contamination, as discussed in the text.

Figure 6.6: Vignetting (the ratio of off-axis to on-axis effective area) as a function of energy for several off-axis angles in arcmin.

6.5.1  Molecular Contamination of the OBFs

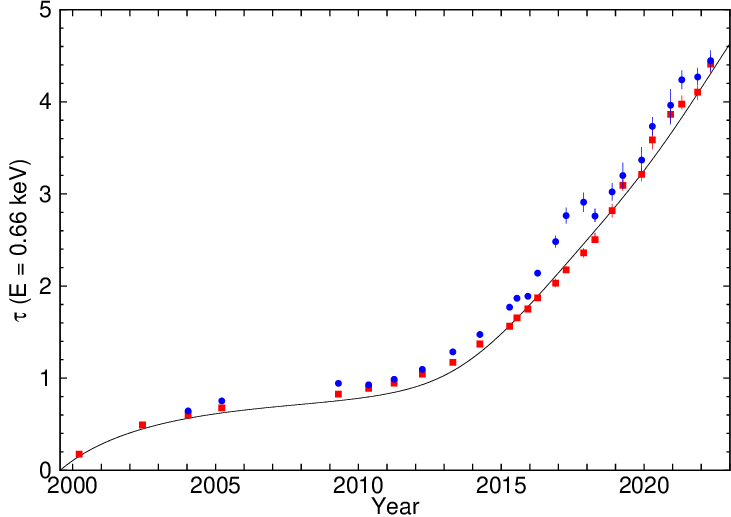

Figure 6.7: Optical depth of the contaminant measured at 0.66 keV from observations of the galaxy cluster Abell 1795. Red squares denote observations with the target on ACIS-S and blue disks denote observations with the target on ACIS-I. The solid curve shows the optical depth of the contaminant as modeled in the most recent contamination model.

Figure 6.8: ACIS-S spectrum of the galaxy cluster Abell 1795 at seven different epochs ranging from 2000 to 2023. The decreasing count rates in the spectrum of a stable calibration source demonstrate the loss of effective area due to the build-up of the contaminant on the ACIS OBF.

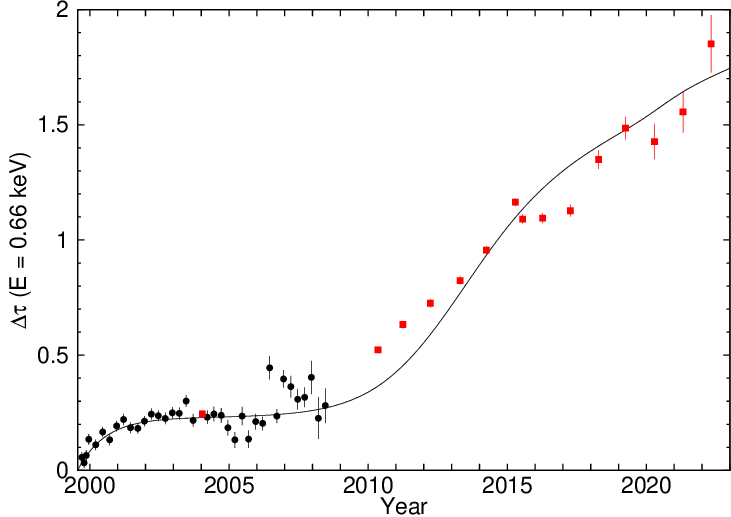

Figure 6.9: The difference between the optical depth at 0.66 keV measured near the center of the ACIS-S chip S3 and that measured near the readout at the edge of the same chip is shown against time. Black circles are measurements made using the ECS data and red squares are made from observations of the galaxy cluster Abell 1795. The solid curve shows the optical depth of the contaminant as modeled in the most recent contamination model.

Figure 6.10: The accumulation rate for C, O, and F over the Chandra mission using LETG/ACIS-S observations of blazars.

Figure 6.11: The ratio of the deposition rate in oxygen atoms and fluorine atoms per year to that for carbon over the Chandra mission as measured by LETG/ACIS-S observations of blazars.

6.6  Spatial Resolution, PSF, & Encircled Energy

Figure 6.12: The on-orbit encircled broad-band energy versus radius for an ACIS observation of point source PG1634-706 (ObsID 1269). The curve is normalized to unity at a radius of 5 arcsec. The statistical uncertainty is estimated to be 3%, and the systematic uncertainty due to power beyond 5 arcsec is 2%. The effective energy is 1 keV.

6.6.1  PSF Anomaly

Figure 6.13: The PSF anomaly illustrated with an ACIS-S observation of NGC 6397 for a number of sources near the aimpoint. The image has been derolled such that the spacecraft +Z is pointed downwards (see solid vertical downward arrow of length 5 arcsec). The nominal direction of the anomaly is indicated by the dashed arrow (also of length 5 arcsec). The data have been binned to 1/4 ×1/4 ACIS sky pixels, and a logarithmic intensity stretch has been applied. Notice that all the sources in the field have discernible asymmetries in the indicated direction.

6.6.2  ACIS PSF Broadening at Low Energies

6.7  Energy Resolution

Figure 6.14: The ACIS pre-launch energy resolution as a function of energy.

6.7.1  Correcting the Energy Resolution of the CCDs

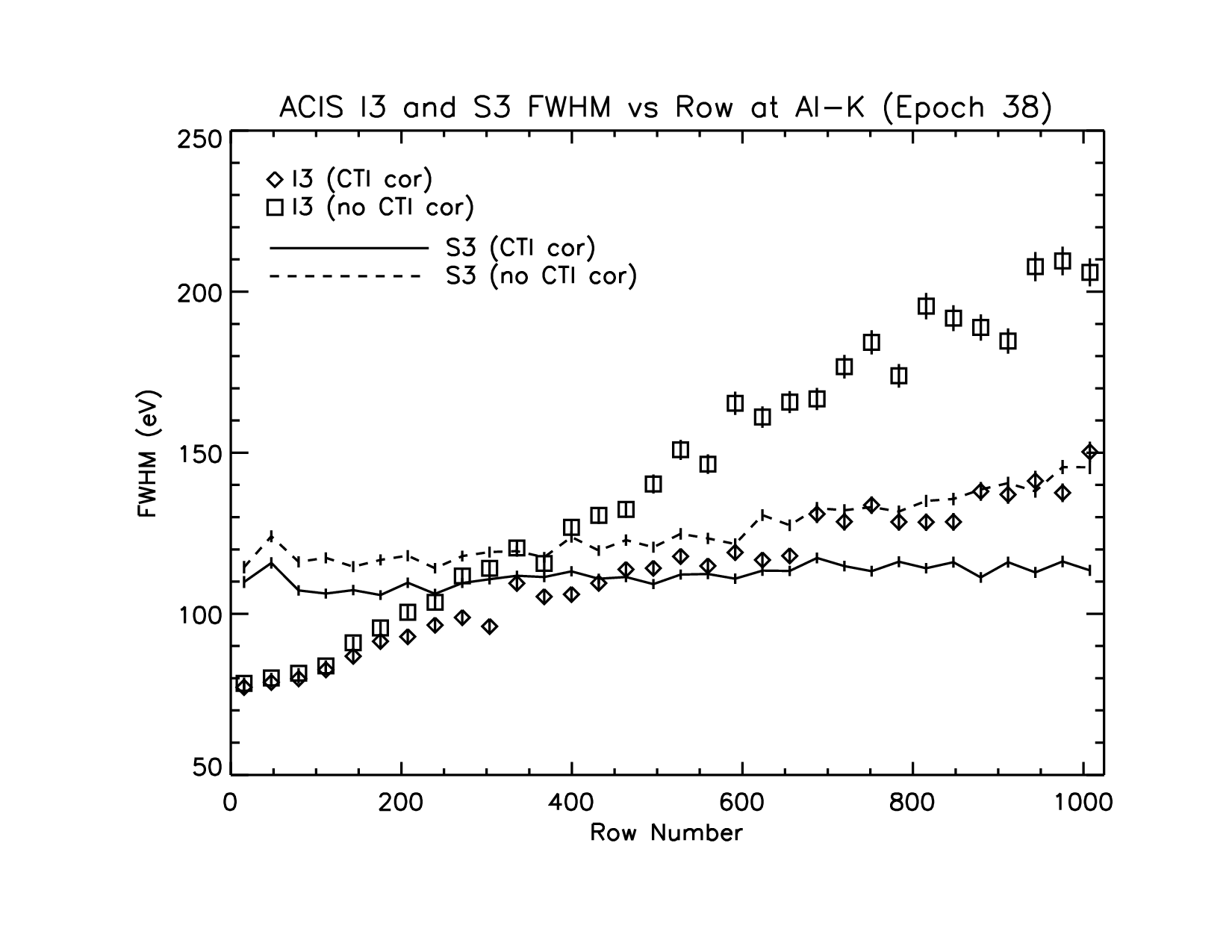

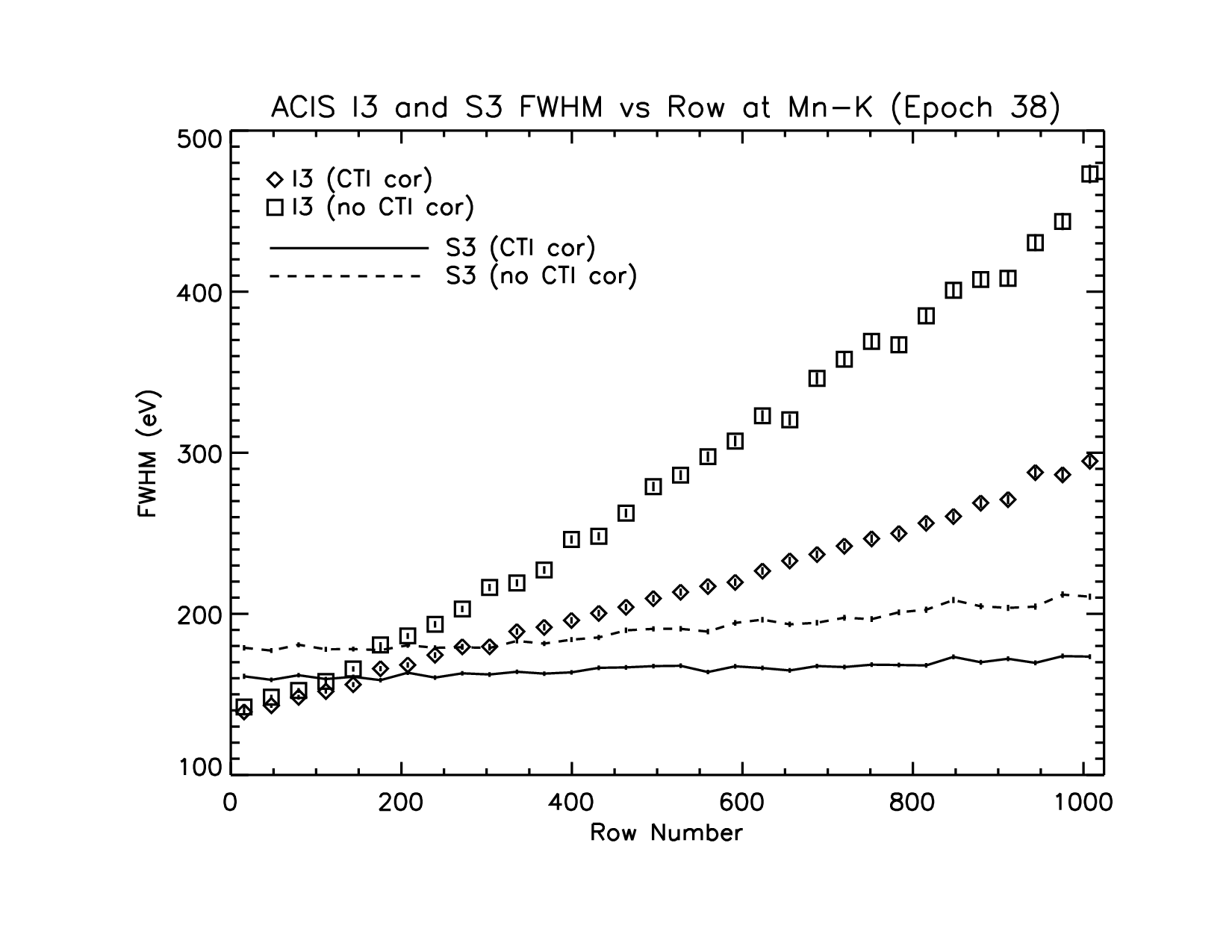

Figure 6.15: Energy resolution (FWHM in eV) versus row number (CHIPY) for several cases is plotted. The top plot shows Aluminum Kα (1.49 keV), while the bottom plot is for Manganese Kα (5.9 keV). The resolution of the I3 chip-with and without CTI correction-is shown by the black curves, and the S3 resolution is shown by the red curves.

6.7.2  Effect of the Focal Plane Temperature on CCD Energy Resolution

Figure 6.16: Energy resolution (FWHM in eV) versus row number (CHIPY) for Al-Kα and Mn-Kβ lines for both FI and BI CCDs for several different focal plane temperatures. The error bars are large at the warmest temperatures because of the relative lack of calibration data at these temperatures compared to lower temperatures.

1. minimizing the number of CCDs so as to reduce the potential for thermally-induced gain drifts that might broaden lines over long observations, and/or
2. locating targets near the frame store regions (low CHIPY) using offset pointing (see Chapter 3) to maximize energy resolution (see Figures 6.16 and 6.15), or,
3. using the BI S3 chip, which has a more spatially-uniform energy resolution across the CCD and significantly better energy resolution than the FI chips at high CHIPY values.

6.8  Detector Gain

1. The calibration team will transfer the gain calibration of ACIS from the ECS to two astronomical targets: the supernova remnant Cas A and the Perseus cluster of galaxies in 2023.
2. The Si emission line at 1.85 keV in Cas A will be used to calibrate the mid-energy ACIS gain and the Fe line at 6.6 keV in the Perseus cluster will be used to calibrate the high-energy gain.
3. Short observations of Cas A and Perseus placed in the middle of each chip will be carried out on the six imaging chips (ACIS-I0, I1, I2, I3, S2, S3) each year.
4. A Principal Component Analysis (PCA) of all the time-dependent gain correction files (tgain) generated over the course of the mission will be used to define the spatial structure in the tgain files.
5. One tgain file will be created each year with a spatial binning of 32×256 pixels using the Cas A and Perseus observations along with the PCA results to map the gain corrections across each of the six imaging chips.
6. A velocity map of Cas A will be developed to accurately calibrate the ACIS gain that accounts for emission line shifts due to bulk motions in Cas A. The Hitomi data for Perseus show that all of the gas in Perseus is at the redshift of the cluster.

1. The gain is currently calibrated on 32×128 (chipx×chipy pixel regions. This will be increased to 32×256 regions to improve the S/N.
2. The calibration team will be transitioning to a hybrid method to calibrate the ACIS gain over the next year using a combination of Cas A and ECS data. Cas A has a very bright Si emission line at 1.85 keV. However, the Fe-Kα line (6.7 keV) in Cas A is too faint to determine the energy-dependence of the gain correction. For this reason, the calibration team will continue to use the ECS Mn-Kα line at 5.9 keV, which is the brightest line in the ECS spectrum and should remain sufficiently bright until 2028, to determine the energy-dependence of the gain correction.
3. A Principal Component Analysis (PCA) of all the time-dependent gain correction files (tgain) generated over the course of the mission shows that the spatial structure in the tgain files can be accurately reproduced by the first four or five components. Thus, the hybrid method will use a single Cas A observation on the center of each chip, the PCA results to model the spatial variation in the gain, and the Mn Kα line from the ECS to generate tgain files for all ten chips.
4. Because Cas A is a young supernova remnant the emission lines are shifted due to bulk motions of the gas, which makes it improbable that a gain calibration uncertainty of 0.3% can be maintained. Initial studies show that the uncertainty of gain calibration will be increased to about 0.7% using Cas A data. The calibration team is presently investigating ways of reducing this uncertainty by developing velocity maps for the gas in Cas A.

6.9  Hot Pixels and Columns

6.10  Cosmic Ray Afterglows

6.11  Aimpoints

Figure 6.17: Approximate contours of constant 50% encircled energy at 1.49 keV when the ACIS-I  aimpoint is selected. The dotted circle is 1 arcsec. That is, the 50% encircled energy at 1.49 keV at any point on the dotted circle is 1 arcsec. Similarly, the dashed circle is 1.5 arcsec. The remainder are at 1 arcsec intervals. The thicker solid circles highlight the 5, 10, and 15 arcsec contours.

Figure 6.18: Approximate contours of constant 50% encircled energy at 1.49 keV when the ACIS-S aimpoint is selected. The dotted circle is 1 arcsec. That is, the 50% encircled energy at 1.49 keV at any point on the dotted circle is 1 arcsec. Similarly, the dashed circle is 1.5 arcsec. The remainder are at 1 arcsec intervals. The thicker solid circles highlight the 5, 10, 15, and 20 arcsec contours.

6.12  Dither

6.12.1  Gaps Between the CCDs, and Chip Tilts

6.13  Operating Modes

6.13.1  Timed Exposure (TE) Mode

T(msec) = 41.12×m + 0.040 ×(m×q) + 2.85×n − 32.99. As with full frames, selecting a frame time less than the most efficient value results in loss of observing efficiency. Frame times are rounded up to the nearest 0.1 sec, and can range from 0.2 to 10.0 sec. When operating with only one chip, subarrays as small as 100 rows are allowed (this permits 0.3 sec frame times which pay no penalty in dead time if q ≤ 200. Use the above equation to determine what the most efficient frame time is for the desired ACIS configuration. For multichip observations, the smallest allowed number of rows is 128. For small subarrays, the aiming uncertainties plus dither should be taken into account; see Section 6.11 and references therein. Furthermore, S3-only observations are now required to include an FI chip, as detailed in Section 6.20. Table 6.5: CCD Frame Time (sec) for Standard Subarrays Subarray ACIS-I (no. of chips) ACIS-S (no. of chips) 1 6 1 6 1 3.0 3.2 3.0 3.2 1/2 1.5 1.8 1.5 1.8 1/4 0.8 1.2 0.8 1.1 1/8 0.5 0.8 0.4 0.7 Figure 6.19: Examples of various subarrays. The heavy dot in the lower left indicates the origin. Trailed Images   It takes 40 μsec to transfer the charge from one row to another during the process of moving the charge from the active region to the frame store region. This has the interesting consequence that each CCD pixel is exposed not only to the region of the sky at which the observatory was pointing during the long (frame time) integration, but also, for 40 μsec each, to every other region in the sky along the column in which the pixel in question resides. Figure 6.20 is an example where there are bright features present so intense that the core of the PSF is suppressed because of pile-up (see Section 6.16), allowing the tiny contribution of the flux due to trailing to be stronger than the (piled-up) core of the direct exposure-hence the trailed image is clearly visible. Trailed images are also referred to as "read-out artifacts," "transfer smear," or "out-of-time images." The user needs to be aware of this phenomenon as it has implications for the data analysis, including estimates of the background. In some cases, the trailed image can be used to obtain an unpiled spectrum and can also be used to perform 40 microsec timing analysis of (extremely bright) sources. Figure 6.20: Trailed image of a strong X-ray source. The core of the image is faint due to pile-up. Most events here are rejected because of bad grades. The read-out direction is parallel to the trail. 6.13.2  Alternating Exposures In some instances, it is desirable to have both long and short frame times. If the exposure time is made very short, pile-up may be reduced, but the efficiency of the observation is greatly reduced by the need to wait for the full 3.2 sec (if six chips are clocked) for the frame-store array processing. In alternating exposure mode, all CCDs are clocked in unison, but have two exposure times. One (typically short) primary exposure of length 0.2 < tp < 10.0 sec is followed by k standard exposures ts (for example, 3.2 sec if six chips are clocked). Permissible values of k range from 1 to 15. The short exposures are used to reduce photon pile-up, and the long exposures are useful for studying the fainter objects in the field of view. For example, a typical choice of long and short exposure times might be 3.2 and 0.3 sec. If k = 3, ACIS would perform one 0.3 sec exposure, followed by three exposures of 3.2 sec, repeating until the total observing time expires. If the duty cycle of long exposures is 1:k (short:long), the observing efficiency η is then η = tp + k ts tp + ( k + 1 ) ts (6.2) for tp < 3.2 sec and ts ≥ 3.2 sec. 6.13.3  Continuous Clocking (CC) Mode The continuous clocking mode is provided to allow 3 msec timing at the expense of one dimension of spatial resolution. In this mode, one obtains 1 pixel × 1024 pixel images, each with an integration time of 2.85 msec. Details as to the spatial distribution in the columns are lost-other than that the event originated in the sky along the line determined by the length of the column. In the continuous clocking mode, data are continuously clocked through the CCD and frame store. The instrument software accumulates data into a buffer until a virtual detector of size 1024 columns by 512 rows is filled. The event finding algorithm is applied to the data in this virtual detector and 3×3 event islands are located and recorded to telemetry in the usual manner (Section 6.15.1). This procedure has the advantage that the event islands are functionally equivalent to data accumulated in TE mode, hence differences in the calibration are minimal. The row coordinate, called CHIPY in the Flexible Image Transport System (FITS) file, maps into time in that a new row is read from the frame store to the buffer every 2.85 msec. This does have some minor impacts on the data. For example, since the event-finding algorithm is looking for a local maximum centered in a 3×3 pixel area, it cannot find events on the edges of the virtual detector. Hence, CHIPX cannot be 1 or 1024, and CHIPY cannot be 1 or 512. In other words, events cannot occur at certain times separated by 512×2.85 msec or 1.4592 sec. Likewise, it is impossible for two events to occur in the same column in adjacent time bins. Event files for continuous-clocking mode data contain two time columns, TIME, and TIME_RO. The TIME_RO records the read-out times (effectively the time the virtual frame is processed to identify events). The TIME column is an estimate of the photon time of arrival at the detector, based on the read-out time, the aspect solution, and the specified sky location of the source. See the acis_process_events documentation for information on the generation of these columns. In order to ensure that the TIMEs are as accurate as possible, it is best to specify the source location to better than 0.5 arcsec. The read-out time can differ from the arrival time by about 2.9 to 5.8 s, depending on the nominal location of the source on the CCD and the dither of the spacecraft. 6.14  Bias Maps In general, the CCD bias-the amplitude of the charge in each pixel in the absence of external radiation-is determined at every change of instrumental parameters or setup when ACIS is in place at the focus of the telescope. These bias maps have proven to be remarkably stable and are automatically applied in routine data processing. The bias maps for continuous-clocking mode observations can be corrupted by cosmic rays. If a cosmic ray deposits a lot of charge in most of the pixels in one or more adjacent columns, the bias values assigned to these columns will be too large. As a result, some low-energy events that would have been telemetered will not be telemetered because they do not satisfy the minimum pulse height criterion and the spectrum of a source in the affected columns will be skewed to lower energies. The BI CCDs are relatively insensitive to the problem. A bias algorithm was implemented in Cycle 6 to mitigate the problem. Occasionally a cosmic ray produces an artifact in a bias map. The pipelines search for these artifacts, and, when found, replace the bias map with another from the same epoch. Work is in progress to use long-term average bias maps, either when there are artifacts in the observation-specific bias map, or for all observations. 6.15  Event Grades and Telemetry Formats 6.15.1  Event Grades In the first step in detecting X-ray events, the on-board processing examines every pixel in the full bias-subtracted CCD image (even in the continuous clocking mode (Section 6.13.3)) and selects as events those with values that both exceed the event threshold and are greater than all of their touching or neighboring pixels (i.e., a local maximum in a 3×3 pixel detection island). The pixel pattern, and thus the event grade, is determined by which of the outer pixels in a 3×3 grid centered on the initial pixel have values above the split-event threshold. Depending on the grade, the data are then included in the telemetry. On-board suppression of certain grades is used to limit the telemetry bandwidth devoted to background events (see Section 6.17.1). The grade of an event is thus a code that identifies which pixels within the 3×3 pixel island, centered on the local charge maximum, are above certain amplitude thresholds. The thresholds are listed in Table 6.2. Note that the local maximum threshold differs for the FI and the BI CCDs. A "Rosetta Stone" to help one understand the ACIS grade assignments is shown in Figure 6.21, and the relationship to the Advanced Satellite for Cosmology and Astrophysics (ASCA) grading scheme is given in Table 6.6. Figure 6.21: Schematic for determining the grade of an event. The grade is determined by summing the numbers for those pixels that are above their thresholds. For example, an event that caused all pixels to exceed their threshold is grade 255. A single pixel event is grade 0. Table 6.6: ACIS flight grades and ASCA Grades ASCA grade ASCA grade ACIS grades CC mode graded Other modes Description 0 0 0 Single pixel 64 65 68 69 2 2 Vertical split up 2 34 130 162 2 2 Vertical split down 8 12 136 140 3 3 Horizontal split left 16 17 48 49 4 4 Horizontal split right 72 76 104 108 6 6 "L" & square, upper left 10 11 138 139 6 6 "L" & square, lower left 18 22 50 54 6 6 "L" & square, lower right 80 81 208 209 6 6 "L" & square, upper right 1 4 32 128 1 1 2-pixel diagonal split 5 33 132 160 1 1 3-pixel diagonal split 36 129 1 1 3-pixel diagonal split 37 133 161 164 1 1 4-pixel diagonal split 165 1 1 5-pixel diagonal split 3 6 9 20 5 5 3-pixel "L" with corner 40 96 144 192 5 5 3-pixel "L" with corner 13 21 35 38 5 5 4-pixel "L" with corners 44 52 97 100 5 5 4-pixel "L" with corners 131 134 137 145 5 5 4-pixel "L" with corners 168 176 193 196 5 5 4-pixel "L" with corners 53 101 141 163 5 5 5-pixel "L" with corners 166 172 177 197 5 5 5-pixel "L" with corners 24 7 7 3-pixel horizontal split 66 2 7 3-pixel vertical split 255 7 7 All 9 pixels All other grades 7 7 It is important to understand that most, if not all, calibrations of ACIS are based on a specific subset of ACIS grades, called g02346. This standard set comprises ASCA grades 0,2,3,4, and 6. In the absence of pile-up, this particular grade selection appears to optimize the signal-to-background ratio, but this conclusion depends on the detailed spectral properties of the source. Further, most of the scientifically important characteristics of ACIS (effective area, sensitivity, point spread function, energy resolution, etc.) are grade- and energy-dependent. 6.15.2  Telemetry Formats There are a number of telemetry formats available. Specifying a format determines the type of information that is included in the telemetry stream. The number of bits per event depends on which mode and which format is selected. The number of bits per event, in turn, determines the event rate at which the telemetry will saturate and data will be lost until the on-board buffer empties. The formats available depend on which mode (Timed Exposure or Continuous Clocking) is used. The modes, associated formats, and approximate event rates at which the telemetry saturates and one begins to limit the return of data, are listed in Table 6.7. The formats are described in the following paragraphs. Event "arrival time" is given relative to the beginning of the exposure. Table 6.7: Telemetry Saturation Limits Mode Format Bits/event Events/sec* Number of Events in full buffer CC Graded    58 375.0 128,000 CC Faint 128 170.2    58,099 TE Graded    58 375.0 128,000 TE Faint 128 170.2    58,099 TE Very Faint 320    68.8    23,273 *(includes a 10% overhead for housekeeping data) Faint   Faint format provides the event position in detector coordinates, an arrival time, an event amplitude, and the amplitude of the signal in each pixel in the 3×3 event island that determines the event grade. The bias map is telemetered separately. Note that certain grades may be not be included in the data stream (Section 6.17.1). Graded   Graded format provides event position in detector coordinates, an event amplitude, the arrival time, and the event grade. Note that certain grades may be not be included in the data stream (Section 6.17.1). Very Faint   Very Faint (VF) format provides the event position in detector coordinates, the event amplitude, an arrival time, and the pixel values in a 5×5 island. As noted in Table 6.7, this format is only available with the Timed Exposure mode. Events are still graded by the contents of the central 3×3 island. Note that certain grades may be not be included in the data stream (Section 6.17.1). This format offers the advantage of reduced background after ground processing (see Section 6.17.2) for applicable observations with count rates sufficiently low as to avoid both telemetry saturation and event pile-up. Studies (see https://cxc.harvard.edu/cal/Acis/Cal_prods/vfbkgrnd) of the ACIS background have shown that for weak or extended sources, a significant reduction of background at low and high energies may be made by using the information from 5×5 pixel islands, i.e. very faint mode, instead of the faint mode 3×3 island. This screening results in a 1-2% loss of good events after ground processing. CIAO 2.2 and later provides a tool to utilize the VF mode for screening background events. Please note that the Redistribution Matrix File (RMF) generation is the same for very faint mode as it is for faint mode. See the "Why Topic" https://cxc.harvard.edu/ciao/why/aciscleanvf.html. The very faint mode screening also reduces the nonuniformity of the non-X-ray background (see Section 6.17.1). It is important to realize that VF mode uses more telemetry; the limit is  ∼ 68.8 events/s (all telemetered grades), which includes the target flux and the full background from all chips. Check the calibration web page (https://cxc.harvard.edu/cal/Acis/Cal_prods/bkgrnd/current/background.html) for a discussion of background flares and the telemetry limit. In particular, review Section 1.3 of the memo "General discussion of the quiescent and flare components of the ACIS background" by M. Markevitch. Starting with Cycle 11, the default upper energy cutoff has been decreased from 15 keV to 13 keV. To reduce the total background rate and the likelihood of telemetry saturation, VF mode observers should consider using no more than 4 CCDs and an energy filter with a 12 keV upper cutoff. If the target is brighter than 5-10 cts/s, either turning off more chips or using Faint mode may be necessary, depending on the total telemetered background included for the operating chips (see Table 6.10). See Section 6.22.1 for more information on selection of required and optional CCDs. 6.16  Pile-Up Pile-Up results when two or more photons are detected as a single event. The fundamental impacts of pile-up are: (1) a distortion of the energy spectrum-the apparent energy is approximately the sum of two (or more) energies; and (2) an underestimate as to the correct counting rate-two or more events are counted as one. A simple illustration of the effects of pile-up is given in Figure 6.22. There are other, somewhat more subtle, impacts discussed below (Section 6.16.1). The degree to which a source will be piled can be roughly estimated using PIMMS. Somewhat more quantitative estimates can be obtained using the pile-up models in XSPEC, Sherpa and the Interactive Spectral Interpretation System (ISIS ). If the resulting degree of pile-up appears to be unacceptable given the objectives, then the proposer should employ some form of pile-up mitigation (Section 6.16.3) as part of the observing strategy. In general, pile-up should not be a problem in the observation of extended objects, the Crab Nebula being a notable exception, unless the source has bright knots or filaments. Figure 6.22: The effects of pile-up at 1.49 keV (Al Kα) as a function of source intensity. Data were taken during HRMA-ACIS system level calibration at the XRCF. Single-photon events are concentrated near the pulse height corresponding to the Al Kα line ( ∼ 380 ADU), and events with 2 or more photons appear at integral multiples of the line energy. 6.16.1  Other Consequences of Pile-Up There are other consequences of pile-up in addition to the two principal features of spurious spectral hardening and underestimating the true counting rate by under counting multiple events. These additional effects are grade migration and pulse saturation, both of which can cause distortion of the apparent PSF. Grade migration   Possibly the most troubling effect of pile-up is that the grade distribution for X-ray events may change. The change of grade introduced by pile-up has come to be referred to as "grade migration." Table 6.8 shows an example of grade migration due to pile-up as the incident flux is increased. In this simple test, which involved only mono-energetic photons, the largest effect is the depletion of G0 events and the increase of G7 events. In general, as the incident flux rate increases, the fraction of the total number of events occupying a particular event grade changes as photon-induced charge clouds merge and the resulting detected events "migrate" to other grades which are not at all necessarily included in the standard (G02346) set. If one applies the standard calibration to such data, the true flux will be under-estimated. Table 6.8: ASCA Grade Distributions for different incident fluxes at 1.49 keV (Al Kα, based on data taken at the XRCF during ground calibration using chip I3) Incident Flux* G0 G1 G2 G3 G4 G5 G6 G7 9 0.710 0.022 0.122 0.053 0.026 0.009 0.024 0.035 30 0.581 0.057 0.132 0.045 0.043 0.039 0.029 0.073 98 0.416 0.097 0.127 0.052 0.050 0.085 0.064 0.108 184 0.333 0.091 0.105 0.040 0.032 0.099 0.077 0.224 *arbitrary units Pulse Saturation   One consequence of severe instances of pile-up is the creation of a region with no events! In this case, the pile-up is severe enough that the total amplitude of the event is larger than the on-board threshold (typically 13 keV) and is rejected. Holes in the image can also be created by grade migration of events into ACIS grades (e.g. 255) that are filtered on-board. PSF distortion   Obviously the effects of pile-up are most severe when the flux is highly concentrated on the detector. Thus, the core of the PSF suffers more from pile-up-induced effects than the wings. Figure 6.23 illustrates this point. Because the core is suppressed, the PSF profile appears less peaked and (apparently) broader than would be the case if pile-up were negligible. 6.16.2  Pile-Up Estimation It is clearly important in preparing a Chandra observing proposal to determine if the observation will be impacted by pile-up, and if so, to decide what to do about it (or convince the peer review why the specific objective can be accomplished without doing anything). There are two approaches to estimating the impact of pile-up on the investigation. The most sophisticated uses the pile-up models in XSPEC, Sherpa, and ISIS  to create a simulated data set which can be analyzed in the same way as real data. A less sophisticated, but very useful, approach is to use the web version of PIMMS to estimate pile-up, or to use Figures 6.23 and 6.24. Figure 6.23: The effects of pile-up on the radial distribution of the PSF are illustrated. These data were taken during ground calibration at the XRCF. The specific "OBSIDs," the counting rate per CCD frame ("c/f"), and the "pile-up fraction" as defined in Section 6.16.2 are given in the inset. Figure 6.24: The pile-up fraction as a function of the the counting rate (in the absence of pile-up in units of photons/frame). The solid line is for on-orbit, the dashed line and the data points are for, and from, ground-based data respectively. The difference between the ground and flight functions are a consequence of the improved PSF on-orbit, where gravitational effects are negligible-see Chapter 4. Note that when pile-up occurs there are two or more photons for each event, so the fraction of events with pile-up is always less than the fraction of photons with pile-up. Figure 6.25: MARX simulations of the effect of pile-up on the shape of the spectrum. The true (solid line) and the detected (dotted line) spectra are shown for four different viewing angles. The corresponding "pile-up fractions"-see Section 6.16.2-are 46%, 40%, 15%, and 2% as the image is moved progressively further off-axis. Simple Pile-Up Estimates   The pile-up fraction is the ratio of the number of detected events that consist of more than one photon to the total number of detected events. An estimate of the pile-up fraction can be determined from Figure 6.24. The algorithm parametrizes the HRMA+ACIS PSF in terms of the fraction of encircled energy that falls within the central 3×3 pixel event detection cell, and assumes that the remaining energy is uniformly distributed among the 8 surrounding 3×3 pixel detection cells. The probabilities of single- and multiple-photon events are calculated separately for the central and surrounding detection cells and subsequently averaged (with appropriate weighting) to obtain the pile-up fraction as a function of the true count rate-the solid line in Figure 6.24. The model was tested against data taken on the ground under controlled conditions-also shown in Figure 6.24. As a general guideline, if the estimated pile-up fraction is > 10%, the proposed observation is very likely to be impacted. The first panel (upper left) in Figure 6.25 qualitatively illustrated the effect on a simulated astrophysical X-ray spectrum. However, the degree of pile-up that is acceptable will depend on the particular scientific goals of the measurement, and there is no clear-cut tolerance level. If one's scientific objective demands precise flux calibration, then the pile-up fraction should probably be kept well below 10%. The PIMMS tool provides the pile-up fraction using the algorithm described here, both for direct observation with ACIS and also for the zeroth-order image when a grating is inserted. Simulating Pile-Up   John Davis developed an algorithm for modeling the effects of pile-up on ACIS spectral data. The algorithm has been implemented as of XSPEC V11.1 and Sherpa V2.2. The algorithm can be used to attempt to recover the underlying spectrum from a source, or to simulate the effects of pile-up for proposal purposes. The algorithm has been tested by comparing CCD spectra with grating spectra of the same sources. Care should be taken in applying the algorithm-for example, using the appropriate regions for extracting source photons and avoiding line-dominated sources. A description of the algorithm can be found in Davis 2001 (Davis, J.E. 2001, ApJ, 562, 575). Details on using the algorithm in Sherpa are given in a Sherpa "thread" as of CIAO V2.2 on the CXC CIAO web page: https://cxc.harvard.edu/ciao/. 6.16.3  Reducing Pile-Up Various methods that can be used to reduce pile-up are summarized in this section. • Shorten exposure time: By cutting back on CCD exposure time, the probability of pile-up decreases. The user is advised to select the best combination of a subarray and frame time to avoid losing data as discussed in Section 6.13.1. • Use the Alternating Exposure option: This option simply alternates between exposures that are subject to pile-up and those that are not. The capability was originally developed for use with certain grating observations to allow one to spend some time obtaining useful data from a zeroth order image, which would otherwise be piled up. See Section 6.13.2. • Use CC mode If two-dimensional imaging is not required, consider using CC mode (Section 6.13.3). • Insert a transmission grating: Inserting either the HETG (Chapter 8) or the LETG (Chapter 9) will significantly decrease the counting rate as the efficiency is lower. The counting rate in the zero order image may then be low enough to avoid pile-up. • Offset point: Performing the observation with the source off-axis spreads out the flux and thus decreases the probability of pile-up at the price of a degraded image. Figure 6.25 illustrated the impact. • Defocus: The option is only listed for completeness, the option is not recommended or encouraged. 6.17  On-Orbit Background There are three components to the on-orbit background. The first is that due to the cosmic X-ray background (a significant fraction of which resolves into discrete sources during an observation with Chandra). The second component is commonly referred to as the charged particle background. This arises both from charged particles, photons, and other neutral particle interactions that ultimately deposit energy in the instrument. The third component is the "read-out artifact" which is a consequence of the "trailing" of the target image during the CCD read-out; it is discussed in Section 6.13.1. The background rates differ between the BI and the FI chips, in part because of differences in the efficiency for identifying charged particle interactions. Figure 6.26 illustrates why. Figure 6.26: Enlarged view of an area of a FI chip I3 (left) and a BI chip (right) after being struck by a charged particle. There is far more "blooming" in the FI image since the chip is thicker. The overlaid 3×3 detection cells indicate that the particle impact on the FI chip produced a number of events, most of which end up as ASCA Grade 7, and are thus rejected with high efficiency. The equivalent event in the BI chip, is much more difficult to distinguish from an ordinary X-ray interaction, and hence the rejection efficiency is lower. 6.17.1  The Non-Celestial X-ray Particle Background Beginning in 2002-Sep and continuing until 2012-Jun, observations have been carried out with the ACIS in the stowed position, shielded from the sky by the SIM structure, and collecting data in normal imaging TE VF mode at −120 °C. Chips I0, I2, I3, S1, S2, S3 were exposed. The SIM position was chosen so that the on-board calibration source did not illuminate the ACIS chips. This allowed characterization of the non-celestial contribution to X-ray background (i.e., of the effects of charged particles). The resulting spectra from different chips are shown in Figure 6.27. Chip S2 is similar to the ACIS-I chips (denoted I023 in the figure) and not shown for clarity. In addition, in July-September 2001, Chandra performed several short observations of the dark Moon, which blocks the cosmic X-ray background. The dark Moon and stowed background spectra were indistinguishable (except for short periods of flares and variable Oxygen line emission in the Moon observations). No background flares have been observed in the stowed position. Thus, the ACIS-stowed background is a good representation of the quiescent non-X-ray background in the normal focal position and can be used for science observations. Figure 6.27: Energy spectra of the charged particle ACIS background with ACIS in the stowed position (a 50 ks exposure taken in 2002-Sep; standard grade filtering, no VF filtering). Line features are due to particle-induced fluorescence of material in and surrounding the focal plane. The "I023" points are from combined I0, I2, and I3 data. The flight-grade distributions in early measurements of the non-X-ray background for the two types of CCDs are shown in Figure 6.28. Although subsequent to these early measurements the CCD temperature has been lowered and the FI devices suffered the effects of the radiation damage, the background is still dominated by the same grades. Based on these data, events from flight grades 24, 66, 107, 214, and 255 are routinely discarded on-board. The total rate of the discarded events is available in the data stream. The remaining non-X-ray events telemetered to the ground are still dominated (70-95%) by other bad grades. They are not discarded on-board because some of them may turn out to be valid X-ray events after ground processing. For data taken using the VF telemetry format (Section 6.15.2), the non-X-ray background can be reduced in data processing by screening out events with significant flux in border pixels of the 5×5 event islands. This screening leaves the data from faint sources essentially the same while reducing the FI background at different energies: a factor of 1.4 (E > 6 keV); 1.1 (1−5 keV); and 2 (near  ∼ 0.5 keV). For the BI chips the reductions are: 1.25 (E > 6  keV); 1.1 (1−5 keV); and 3 (near 0.3 keV). In addition, the spatial nonuniformity of the non-X-ray background may be reduced by VF screening; see the background uniformity memo at https://cxc.harvard.edu/cal/Acis/detailed_info.html#background. The screening algorithm has been incorporated into the CIAO tool acis_process_events. Further discussion may be found at https://cxc.harvard.edu/cal/Acis/Cal_prods/vfbkgrnd/index.html. Proposers should be aware that telemetry saturation occurs at lower count rates for observations using the VF format, so they may need to take steps to limit the total ACIS count rate (see Section 6.17.2). Proposers should also be aware that if there are bright point sources in the field of view, the screening criterion discussed above is more likely to remove source events due to pile-up of the 5×5 pixel event islands. Point sources should have count rates significantly less than 0.1 cts/sec to be unaffected. However, there is no intrinsic increase of pile-up in VF data compared to Faint mode, and the screening software can be selectively applied to regions, excluding bright point-like sources. Thus the use of VF mode is encouraged whenever possible. Figure 6.28: Fraction of ACIS background events as a function of grade from early in-flight data for an FI chip (S2) (top) and a BI chip (S3) (bottom). 6.17.2  The Total Background In sky observations, two more components to the background come into play. The first is the cosmic X-ray background which, for moderately long ( ∼ 100 ks) observations, will be mostly resolved into discrete sources (except for the diffuse component below 1 keV) but, nevertheless, contributes to the overall counting rate. The second is a time-variable "flare" component caused by any charged particles that may forward-scatter from the HRMA mirrors and have sufficient momentum so as not to be diverted from the focal plane by the magnets included in the observatory for that purpose, or from secondary particles (Section 6.17.3). Figure 6.29 compares flare-free ACIS-S3 spectra of the non-X-ray (dark Moon) background and a relatively deep pointing to a typical region of the sky away from bright Galactic features. Figure 6.29: ACIS-S3 spectrum of the non-X-ray background (large crosses) overlaid on the quiescent blank sky spectrum. Small crosses show the total sky spectrum, while squares show the diffuse component left after the exclusion of all point sources detectable in this 90 ks exposure. Standard grade filtering and VF filtering are applied. The background and blank-sky spectra are normalized to the same flux in the 10-12 keV band. Estimates for the mid-2019 quiescent detector+sky background counting rates in various energy bands and for the standard good grades are given in Table 6.9. Insertion of the gratings makes little measurable difference in the background rates, but it does block the background flares. The lower-energy rates are very approximate as they vary across the sky. The rates are slowly changing on the timescale of months, so Table 6.9 can only be used for rough sensitivity estimates. Table 6.10 gives total background count rates for each type of chip, including all grades that are telemetered (see Section 6.15.1 and 6.17.1), and can aid in estimating the probability of telemetry saturation. ACIS Background rates (cts/s/chip) Energy Band (keV) I0 I1 I2 I3 S1 S2 S3 S4  0.3-10.0 0.31 0.32 0.31 0.34 2.35 0.45 1.21 0.44  0.5-2.0  0.05 0.05 0.05 0.06 0.21 0.08 0.18 0.09  0.5-7.0  0.18 0.19 0.19 0.20 0.64 0.26 0.47 0.25  5.0-10.0 0.17 0.17 0.16 0.18 1.64 0.25 0.73 0.23 10.0-12.0 0.07 0.07 0.07 0.08 1.34 0.15 0.93 0.14 Table 6.9: Approximate on-orbit standard grade background counting rates (2019, averaged April to September). The rates are cts/s/chip, using only ASCA grades 02346, no VF filtering, excluding background flares and bad pixels/columns and celestial sources identifiable by eye. These values can be used for sensitivity calculations. (See https://cxc.harvard.edu/cal/Acis/detailed_info.html#background for the most recent version of this table.) Period 1999-Aug 2000-2003 2009 2023 Upper E cutoff 15 keV 15 keV 15 keV 15f keV 13 keV 12 keV 10 keV Chip S2 (FI) 10 6.3 10.7 5.4 4.5 4.4 4.0 Chip S3 (BI) 11 7.7 14.7 8.9 6.0 5.5 4.0 fBeginning in Cycle 11 (late 2009) the default high energy limit was changed from 15 keV to 13 keV. 13 kev/15 keV conversion factors of 0.82 for S2 and and 0.68 for S3. These factors were determined from observations with fairly constant background rates between 2009-Apr and 2009-Jul when the onboard high energy limit was set either to 15 keV or to 13 keV. Table 6.10: Typical total quiescent background rates (cts/s/chip; 2023, averaged 2023 January through mid-October), including all grades that are telemetered (and not just standard ASCA "good" grades), by chip type and upper energy cutoff. (See https://cxc.harvard.edu/cal/Acis/detailed_info.html#background for the most recent version of this table.) The trend in background rates follows approximately the inverse of the solar cycle with a lag of about a year; see Figures 6.30 and 9.21. The recent peak appears to be mid-2020. The rates have been declining much more rapidly starting in 2022 (compared to the decline from 2010 to 2013); the decline is more like that at the beginning of the mission (late-1999 to mid-2000). The 2023 rate is at or below the level of the  ∼ 2014 minimum and even the 2000-2004 minimum, with no signs yet of reaching a plateau. For this cycle, the quiescent background rates are likely to remain close to the current values. Figure 6.30: Total telemetered background rates (including all grades and the upper event cutoff at 15 keV) for chips S2 (FI) and S3 (BI) as a function of time. Vertical dashed lines are year boundaries. Data are plotted through mid-October, 2023. Beginning in Cycle 11 (late 2009) the default high energy limit was changed from 15 keV to 13 keV. Subsequent 15 keV rate estimates were scaled from 13 keV rates using 13 kev/15 keV conversion factors of 0.82 for S2 and and 0.68 for S3. These factors were determined from observations with fairly constant background rates between 2009-Apr and 2009-Jul when the onboard high energy limit was set either to 15 keV or to 13 keV. (See https://cxc.harvard.edu/cal/Acis/detailed_info.html#background for the most recent version of this figure.) For aid in data analysis and planning background-critical observations, the CXC has combined a number of deep, source-free, flare-free exposures (including all components of the background) into background event files for different time periods. These blank-sky datasets, along with the detector-only (ACIS-stowed) background files (Section 6.17.1), can be found in the CALDB. H. Suzuki et al. (2021, Astronomy & Astrophys. 665, 116) examined the individual ACIS-stowed observations, and developed models describing the spatial and time variation of the background. A tool for generating background spectral models is available at https://github.com/hiromasasuzuk/mkacispback. 6.17.3  Background Variability In general, the background counting rates are stable during an observation. Furthermore, the spectral shape of the non-X-ray background has been remarkably constant during 2000-2023 for FI chips and, to a lower accuracy, for BI chips, even though the overall background rate showed secular changes by a factor of 1.5. (For chip S3, the shape has been constant during 2000-2005, but a small change has been observed since late 2005.) When the quiescent background spectra from different observations are normalized to the same rate in the 10-12 keV interval, they match each other to within ±3% across the whole Chandra energy band. The previous discussion assumes that the upper threshold is set to 13 keV. Occasionally, however, there are large variations (flares), as illustrated in Figure 6.31. Figure 6.32 shows the frequency of such variations when compared to the quiescent background. An average fraction of the exposure affected by flares above the filtering threshold used for the blank-sky background datasets (a factor of 1.2 above the nominal rate) was about 6% for FI chips and up to 1/3 for BI chips during the first few years of the mission. The average fraction of exposure affected by flaring has declined with time, and was practically zero for a long stretch. Recently, the flare frequency has been increasing, but at present it has not reached the frequency seen early in the mission. Thus, given that the quiescent background in FI chips is also lower than that in S3, background-critical observations may best be done with ACIS-I. Several types of flares have been identified, including flares that are seen only in the BI chips, and flares that are seen in both the FI and BI chips. Figure 6.33 shows the spectra of two of the most common flare species. Both flares have spectra significantly different from the quiescent background. In addition, the BI flares have spatial distribution very different from that of the quiescent background. The BI flares produce the same spectra in S1 and S3. Users should note that the total counting rate can significantly increase during a flare (although flare events are almost exclusively good-grade so the total rate does not increase by as large a factor as the good-grade rate; details can be found at https://cxc.harvard.edu/cal/Acis/Cal_prods/bkgrnd/current). If the probability of telemetry saturation is significant, users of ACIS-I might consider turning off the S3 chip. However, if ACIS-S is used in imaging mode, and flaring is a concern, the CXC recommends for extended sources appreciably filling S3 that both BI chips be turned on if thermal constraints permit (see Sections 6.20 and 6.22). The advantage is that for most types of flares S1 can be used to determine the flare spectrum which can then be subtracted from the spectrum obtained with S3. Figure 6.31: An example of the ACIS background counting rate versus time for a BI chip (S3; top curve) and an FI chip (I2; bottom curve). These are for the standard grades and the band from 0.3 - 10 keV. Figure 6.32: An estimate of the cumulative probability that the ratio of the background counting rate to the quiescent background counting rate is larger than a given value. The upper plot is for a representative FI chip (S2) and the lower plot is for a representative BI chip (S3). The vertical dotted line is a limiting factor 1.2 used in creating the background data sets. These probabilities are relevant for the archival data from the first 2-3 years of the mission. After declining with time to almost zero for a number of years, the amount of flaring has increased with solar maxima, but there has been less flaring than was seen in the first few years of the mission. Figure 6.33: Spectra of different background flares in chip S3. Thick crosses show a common flare species that affects only the BI chips. Thin crosses show one of the several less common flare species that affect both the BI and FI chips. Note how both these spectra are different from the quiescent spectrum (see Figure 6.29). 6.17.4  Background in Continuous Clocking Mode Apart from compressing the data into one dimension (Section 6.13.3), there is essentially no difference in the total background in CC mode and that encountered in the timed exposure mode. The background per-sky-pixel, however, will be 1024 times larger, since the sky-pixel is now 1 × 1024 ACIS pixels. 6.18  Sensitivity The sensitivity for detecting objects is best estimated using the various proposal tools such as PIMMS, MARX, etc. The "Chandra Proposal Threads" web page gives detailed examples of how to use these tools (https://cxc.harvard.edu/proposer/threads). 6.19  Bright Source X-ray Photon Dose Limitations Pre-Flight radiation tests have shown that  ∼ 200 krads of X-ray photon dose will damage the CCDs. The mechanism for the damage is the trapped ionization in the dielectric silicon oxide and nitride separating the gates from the depletion region. Since the charge is trapped, the damage is cumulative. Because the structure of the BI CCDs differs significantly from that of the FI CCDs, the two types of chips have different photon dose limitations. Specifically, the BI CCDs are more than 25 times as tolerant to a dose of X-ray photons as compared to the FI CCDs since the former have  ∼ 40 μm of bulk Si protecting the gate layer. Simulations of astrophysical sources have yielded a very conservative, spectrally-averaged, correspondence of 100 cts/pix = 1 rad. In this context `counts' means all photons that impinged on the detector, whether or not they were piled-up or discarded on-board. In consultation with the instrument principal investigator (IPI) team, the CXC has adopted the following mission allowances, per pixel of the two types of chips:        FI chips:   25 krads    2,500,000 cts/pix        BI chips: 625 krads  62,500,000 cts/pix If an observation calls for observing a bright point-like source close to on-axis, it is suggested that the MARX simulator (with the parameter DetIdeal=yes & dither, typically, on) be used to calculate whether the observation may reach 1% of the above mission limits in any one pixel. If so, please contact the CXC HelpDesk  (https://cxc.harvard.edu/helpdesk/) to custom design an observational strategy which may accommodate the science aims, while maintaining the health & safety of the instrument. 6.20  Limitations on the Number of Required and Optional CCDs As of 2022-Jan, the ACIS threshold-crossings ("txings") algorithm is now the primary radiation monitor aboard Chandra. The txings rates on FI chips are much higher than on BI chips, and the FI chips are accordingly more sensitive to radiation. Thus, at least one FI chip is required for all ACIS observations. This change has the greatest impact for observers interested in achieving short frame times using a subarray on S3. The increase in frame time is largest for an observation which would have been performed on S3-only with a 128-row subarray, but which now requires an additional chip. In this case, the minimum frame time increases from 0.4 s to 0.5 s. If a proposer's science goals are incompatible with the addition of an FI chip, after the proposal has been selected the observer may consult with their Uplink-Suport Scientist to request an S3-only observations. Many of the spacecraft components have been reaching higher temperatures over the course of the mission because of changes in the insulating layers on the exterior surfaces of the Chandra spacecraft. The ACIS electronics and Focal Plane (FP) temperatures can reach their operational limits depending on the orientation of the spacecraft and the number of operating CCDs. The number of operating CCDs and/or the duration of observations is limited owing to more restrictive thermal constraints. Starting in Cycle 21, the proposal submission software allows the proposer to specify a maximum of 4 required CCDs. If a 5th and/or 6th CCD are desired by the proposer, they must be specified as optional at the time of proposal submission. This restriction is made necessary due to the difficulty in meeting the thermal constraints. Please note that the solar pitch restrictions specified here, while they correspond to the pitch range boundaries given in other CXC documents, are practical representations of more complex physical behavior and should be understood as approximate. Several components on the Chandra spacecraft have reached elevated temperatures at a variety of pitch angles. Figure 6.34 displays approximate pitch ranges and the components sensitive in those ranges. Within ACIS, the Power Supply and Mechanism Controller (PSMC) heats at pitch angles less than 60° and the Focal Plane (FP), Detector Electronics Assembly (DEA), and Digital Processing Assembly (DPA) heat at angles larger than 130°. Observations at pitch angles larger than about 120°, longer than about 30 ks, and with 5 or 6 CCDs operating are likely to approach or exceed the DPA and DEA thermal limits (Figures 6.36 and 6.37). Finally, the ACIS FP temperature is now most often several degrees above the desired operating temperature of −119.7 °C, particularly for observations with pitch angles larger than 130°. Each of these operating temperatures is reduced by powering fewer CCDs. Therefore, the Operations team will turn off optional CCDs as required to optimize ACIS performance and balance thermal constraints (see section 6.22.1). For this reason, observations must employ 4 or fewer (required on) CCDs whenever possible. Figure 6.35 illustrates the increase in PSMC temperature for observations at low pitch angles. Observations using 6 chips are plotted as green triangles, 5 chips as red circles, and 4 chips as blue crosses. Variations in the maximum temperature at a particular pitch angle and chipset correspond primarily to variations in the starting temperatures for the observations. The yellow and red lines indicate the yellow and red limits for the PSMC temperature. It is evident from Figure 6.35 that using one fewer CCD can reduce the temperature by a few degrees. In tail-Sun orientations (pitch angles larger than 130°), the ACIS FP temperature, the DEA temperature, and the DPA temperature can warm outside of the desired range. Each of these temperatures can be reduced by using fewer chips. Roughly speaking, reducing the number of chips used by one will reduce the asymptotic temperature by a few to several degrees. Figure 6.36 displays the DPA temperature as a function of pitch angle for 4, 5, and 6 CCD configurations, and Figure 6.37 shows the corresponding data for the DEA. The ACIS PSMC, DEA, DPA and FP temperatures are kept within operational limits through the use of thermal models which predict the temperature for a given week, given the mix and timing of observations. If the predicted temperatures exceed the planning limits, adjustments are made such as turning off more optional CCDs, splitting an observation, or rescheduling an observation at a more favorable pitch angle. Figure 6.34: Pitch sensitivity of spacecraft components. Please see Chapter 3 for additional information about the various spacecraft component pitch sensitivities. Figure 6.35: ACIS PSMC temperature as a function of spacecraft pitch angle. 6 CCD observations are indicated by green-filled triangles, 5 CCD observations by red-filled circles and 4 CCD observations are indicated by blue ×s. Figure 6.36: DPA temperature as a function of spacecraft pitch angle. 6 CCD observations are indicated by green-filled triangles, 5 CCD observations by red-filled circles and 4 CCD observations are indicated by blue ×s. Figure 6.37: DEA temperature as a function of spacecraft pitch angle. 6 CCD observations are indicated by green-filled triangles, 5 CCD observations by red-filled circles and 4 CCD observations are indicated by blue ×s. 6.21  Observing Planetary and Solar System Objects with ACIS Chandra has successfully observed several solar system objects, including Venus, the Moon, Mars, Jupiter and several comets. Observations of planets and other solar system objects are complicated because these objects move across the celestial sphere during an observation and the optical light from the source can produce a significant amount of charge on the detectors (this is primarily an issue for ACIS-S observations). Some information regarding observation planning and data processing is given here. Users are encouraged to contact the CXC for more detailed help. 6.21.1  The Sun, Earth, and the Moon Chandra cannot observe the Sun for obvious reasons. Chandra has conducted observations of the Moon earlier in the mission, but observations of the Moon with ACIS are currently not allowed. The concern is that the bright flux of optical and ultraviolet (UV) photons could potentially polymerize the contaminant on the ACIS filters. Observations of the dark portion of the Moon are not allowed since there is a risk that the Sun-illuminated portion of the Moon might encroach upon the FOV during the observation. For similar reasons, ACIS  observations of Earth (including the dark portion) are not allowed. See Section 3.3.2 in Chapter 3 and Chapter 5 for further discussion on avoidances and constraints. 6.21.2  Observations with ACIS-I Any solar system object other than the Sun, Earth, the Moon, and Mercury can be observed with ACIS-I, subject to the avoidances discussed in Section 3.3.2 and Chapter 5. Previous solar system observations with ACIS-I have not revealed significant contamination from optical light. However, proposers are encouraged to work with the CXC when planning the specifics of a given observation. Since the source moves across the celestial sphere in time, an image of the event data will exhibit a "streak" associated with the source. The CIAO tool sso_freeze can be used to produce an event data file with the motion of the source removed. 6.21.3  Observations with ACIS-S Any solar system object other than the Sun, Earth, the Moon, and Mercury can be observed with ACIS-S, subject to the avoidances discussed in Section 3.3.2 and Chapter 5. The ACIS-S array can be used with or without a grating. The BI CCDs are more sensitive to soft X-rays than the ACIS-I array CCDs, but the entire ACIS-S array suffers from the disadvantage that its OBF is thinner than for ACIS-I and may transmit a non-negligible flux of visible light onto the CCDs. It is thus necessary to estimate the amount of charge produced in the CCDs due to the optical light. More detailed information can be found at https://cxc.harvard.edu/cal/Hrma/UvIrPSF.html and from the CXC via HelpDesk  (https://cxc.harvard.edu/helpdesk/). If the optical light leak is small enough, it can be mitigated by simply shortening the frame time. This leads to a linear drop in the number of ADU due to optical light. If possible, VF mode should be used, since in this mode the outer 16 pixels of the 5×5 region allows a "local" bias to be subtracted from the event to correct for any possible light leakage. However, see the warnings in Section 6.15.2. The optical light also invalidates the bias taken at the beginning of the observation if a bright planet is in the field. It is therefore desirable to take a bias frame with the source out of the field of view. This bias map is useful even when processing 5×5 pixels in VF mode since it can be employed as a correction to the local average "bias" computed from the 16 outer pixels, thereby correcting for hot pixels, cosmetic defects etc. A more sophisticated approach to dealing with excess charge due to optical light is to make an adjustment to the event and split thresholds. Event grades are described in more detail in Section 6.15.1. Excess charge (in ADU) due to optical light will be added to the event and split counters on-board. Without an adjustment to the thresholds (or a large enough threshold), many of the X-ray events may have all nine pixels of a 3×3 pixel event detection cell above the split threshold, in which case the event will not be telemetered to the ground. If the adjustment is too large, X-ray events may not be detected because they may not exceed the event threshold. Users should be aware that if the detection thresholds are adjusted, standard CXC processing of planetary data will give inaccurate estimates of event pulse heights and grades. To analyze such data, a thorough understanding of the energy calibration process and manual massaging of the data will be required. 6.22  Observing with ACIS-the Input Parameters This section describes the various inputs that either must be, or can be, specified to perform observations with ACIS. The subsections are organized to match the Chandra Proposal Software (CPS) form and includes implications of the possible choices. As emphasized at the beginning of the Chapter, ACIS is moderately complex and the specific characteristics of the CCDs and their configuration in the instrument lead to a number of alternatives for accomplishing a specific objective-detailed trade-offs are the responsibility of the observer. For example, it might seem obvious that observations of a faint point source may be best accomplished by selecting the ACIS-S array with the aim point on S3, the BI device that can be placed at the best focus of the telescope, and the CCD with the best average energy resolution. On the other hand, perhaps the science is better served by offset pointing (by a few arcmin) the target onto S2, very near to the frame store, where the FI energy resolution is better than that of S3. Or, if the object is very faint-so that the total number of photons expected is just a handful (not enough to perform any significant spectroscopy)-the advantage of S3 may not be so obvious considering the smaller field of view and its higher background rate, and perhaps the ACIS-I array, which would optimize the angular resolution over a larger field, may be more attractive. 6.22.1  Required Parameters Some ACIS input parameters must be specified: the number and identity of the CCDs to be used, the Exposure Mode, and the Event Telemetry Format. If pile-up and telemetry saturation are not expected to be a problem for the observation, then these are the only parameters that need to be specified. Number and Choice of CCDs   The CPS requires the observer to specify the desired aimpoint and to identify the CCDs they want to use. Prior to Cycle 13, the use of 6 CCDs was encouraged to facilitate serendipitous detections. Starting in Cycle 20, the CPS limits the number of CCDs that may be specified as required to a maximum of 4 for thermal reasons. The proposer may specify 1 or 2 additional optional CCDs to bring the total of required plus optional CCDs to as many as 6 CCDs, but the proposer should be aware that optional CCDs may be turned off. If the science objectives of the proposal require 5 or 6 CCDs, the proposer must work with their Chandra Uplink Support Scientist after the proposal is selected in order to specify a 5th or 6th CCD as required. But proposers should be aware that 5 or 6 CCD observations are more difficult to schedule and are more likely to be split into multiple short observations if the exposure is long. Using fewer CCDs is beneficial in keeping the ACIS electronics and the ACIS focal plane (FP) temperatures within the required operating ranges. See Section 6.20 for further information on thermal limitations and selection requirements for ACIS and the number of operating CCDs. The selection of CCDs on the CPS form is discussed in the next section. Choosing Optional CCDs & Optional CCD Policy   The observer may specify that a given CCD must be on for an observation by entering "Y" for that CCD at the appropriate place in the CPS form. If there are CCDs that the observer does not require for their science, they should enter "N." If there are CCDs that the observer would prefer to have turned on should thermal conditions allow it, the rank-ordered designations "Off1," "Off2," up to "Off5" should be used. The CCD designated as "Off1" would be the first one to be turned off, and the CCD designated as "Off5" would be the last that would be turned off. Even if the science requires 5 or 6 CCDs, the observer must set the designation for the four most useful as "Y" and the least useful CCD(s) to optional status "Off1" ("Off2"). In these instances, the proposer should include a comment in the CPS form that 5 or 6 CCDs are required for the science. If the proposal is accepted, the observer may work with their Chandra Uplink Support Scientist to change "Off1" ("Off2") to "Y." The CXC will make its best effort to try to schedule the observation under the appropriate thermal conditions. The observer should discuss the configuration with Uplink Support and, if there are difficulties in assessing which CCDs should be optional, please contact the CXC HelpDesk (https://cxc.harvard.edu/helpdesk/) Should it be possible to accommodate the observer's request for 5 or 6 CCDs, the observation will most likely take place at solar pitch angles less than 130°. Recommended Chip Sets   Observers should specify the chip set that is best for their primary science. The following suggestions have proven to be popular, and would facilitate a more useful and homogeneous archive. Given the current thermal performance of the spacecraft, it is possible that one (or both) optional CCDs would be turned off. Some Recommended Chip Sets: ACIS-I Aimpoint (Imaging)   The rationale for the first ACIS-I imaging configuration (Figure 6.38) is that, in the unlikely event of major background flares, telemetry might saturate more rapidly if S3 were on. In addition, since S2 is further from the ACIS-I aimpoint on I3, data on S2 may provide nearby local (FI) background if the target contains diffuse emission which does not extend as far as S2. For the second ACIS-I imaging configuration (Figure 6.39), the rationale is that S3 is generally more sensitive and closer to the ACIS-I aimpoint, and so more sensitive to serendipitous source detection. The rationale for the third ACIS-I imaging configuration (Figure 6.40) is that it is desired to have both S2 and S3 on, but it is not required. The CCD specified "OFF1" would be the first to be turned off. Some Recommended Chip Sets: ACIS-S Aimpoint (Imaging)   For deciding on chipsets for ACIS-S imaging, several factors come into play. In general, chips closest to the S3 aimpoint would be selected as required, while those farthest from the aimpoint (where the PSF is degraded) would be selected as optional. The first ACIS-S imaging configuration (Figure 6.41) is the basic default ACIS-S configuration. The aimpoint is on S3, a BI chip. If a BI chip is used, it is required that an FI chip also be on in order to provide more reliable monitoring of the radiation environment. S2 has several advantages as an FI chip to be used with the S3 aimpoint, notably that is closest to the S3 aimpoint, providing relatively good imaging performance. With only two required CCDs powered on, the focal plane heating is reduced. If a larger field of view is needed, up to two additional required chips can be specified, and up to two additional optional chips (tagged as "OFF1" and "OFF2"). As noted above, thermal constraints may require that one or both optional chips be turned off. The rationale for the second ACIS-S imaging configuration (Figure 6.42) is that the optional S1 and S4 allow for the possibility of a larger imaging area, and S4 is preferred over S1 if one chip must be dropped: if necessary, S1 will be turned off first. Thermal constraints may require one or both of the optional chips be turned off. The rationale for the third ACIS-S imaging configuration (Figure 6.43) is that the optional S1 and S4 allow for the possibility of larger imaging area. As having S1 on allows the S3 background spectrum to be modeled if diffuse emission covers all or part of S3, S1 is preferred over S4 in the situation that thermal constraints require a single chip must be dropped. If it important to the science that S1 be available for this purpose, the user should instead specify a configuration with three required chips (S3+S2+S1). The rationale for the fourth ACIS-S imaging configuration (Figure 6.44) is that the optional I2 allows for the possibility of larger imaging area. S1 will have a higher count rate than an FI CCD in the event of a background flare and thus it might be desirable to turn S1 off. The rationale for the fifth ACIS-S imaging configuration (Figure 6.45) is that the observer may want to use S1 to model the background on S3, and it is desirable to have S4 turned off. S4 also has significant noise streaks with resulting decreased sensitivity, so some users may prefer to specify I2 as optional instead of S4. The rationale for the sixth ACIS-S imaging configuration (Figure 6.46) is that for this observation it would be desirable to have 6 CCDs on. It is probable that one or two optional CCDs would be turned off. Recommended Chip Set: ACIS-S Aimpoint (Spectroscopy)   The optimum ACIS-S spectroscopy chip set depends strongly on the expected spectrum of the target. Typically the maximum signal is desired, so the HETG and LETG observer is most likely to request 6 ACIS-S chips (with at most 4 specified specified "ON"). If the science does depend strongly on the flux received on the S0 and S5 CCDs, the observer would need to work with their Chandra Uplink Support Scientist to specify all 6 ACIS-S CCDs as required on (see Figure 6.47). However, the observer should be aware that the amount of useful flux on S0 and S5 with the LETG is typically quite low given they are both FI CCDs (see Figure 9.6) and also because of the loss due to the optical blocking filter contamination layer. ACIS Counts Information   Proposers not using gratings are asked for the maximum number of counts expected from the brightest source to be analyzed in their observation. This answer is used by mission planners to schedule observations during the proper thermal conditions for the perceived science goals. If the proposer is interested in the optimal spectral performance of the ACIS CCDs, they should seriously consider using the minimum number of CCDs necessary for their science goals. See also Section 6.22.5 for information on "warm" ACIS operations. Figure 6.38: ACIS-I imaging, nominal I3 aimpoint (4 Required CCDs, 1 Optional CCD) Figure 6.39: ACIS-I imaging, nominal I3 aimpoint (4 Required CCDs, 1 Optional CCD) Figure 6.40: ACIS-I imaging, nominal I3 aimpoint (4 Required CCDs, 2 Optional CCDs) Figure 6.41: ACIS-S imaging, nominal S3 aimpoint (2 Required CCDs) Figure 6.42: ACIS-S imaging, nominal S3 aimpoint (2 Required CCDs, 2 optional CCDs) Figure 6.43: ACIS-S imaging, nominal S3 aimpoint (2 Required CCDs, 2 optional CCDs) Figure 6.44: ACIS-S imaging, nominal S3 aimpoint (4 Required CCDs, 1 Optional CCD) Figure 6.45: ACIS-S imaging, nominal aimpoint (4 Required CCDs, 1 Optional CCD) Figure 6.46: ACIS-S imaging, nominal aimpoint (4 Required CCDs, 2 Optional CCDs) Figure 6.47: ACIS-S spectroscopy, nominal aimpoint (4 Required CCDs, 2 Optional CCDs) Optional Parameters that affect Pile-Up   See Section 6.13.1 for information on how the selection of the number of operating CCDs and the size and position of the subarray affects the minimum frame time. In general, using fewer CCDs will permit a faster read-out. For example, using the smallest subarray of 128 rows in the middle of I-array CCDs gives a minimum frame time of 0.5 s with 1 CCD operating and a minimum frame time of 0.7 s with 6 CCDs operating. In almost all cases, the observer should leave the parameter on the CPS target form that asks if the most efficient frame time should be used at the default value of "Y." This parameter should be changed only if the observer fully understands the impact on efficiency of their observation. Please contact the CXC HelpDesk (https://cxc.harvard.edu/helpdesk/) if you are considering a non-default setting and are unsure of the CCD selection and CCD Frame exposure time to use. Exposure Mode   There are only two choices: Timed Exposure (TE) mode (see Section 6.13.1) or Continuous Clocking (CC) mode (see Section 6.13.3). Timed Exposure Mode   The Timed Exposure (TE) mode with the default nominal (and optimal) frame time of 3.2s is the typical mode for ACIS observations. Note that the option of selecting frame times shorter than nominal reduces observing efficiency, and hence the number of photons collected for a given observation time. (Note that the value of the nominal frame time can differ a bit from 3.2s depending on how many CCDs are used; see Section 6.13.1.) Continuous Clocking Mode   The Continuous Clocking (CC) mode is useful when timing data are so critical and/or pile-up is such a problem that the sacrifice of one dimension of spatial data is warranted. The use of continuous clocking may also lead one to consider specifying a particular satellite roll orientation (see Chapter 3) to avoid having two different sources produce events in the same CCD column. (See also Section 6.22.4 below.) 6.22.2  Optional Parameters Alternating Exposures   This option applies only to Timed Exposure (TE) mode. The parameters specifying an alternating exposure are: the number of secondary exposures per primary exposure (1-15) the primary exposure frame time Frame times and efficiencies in TE mode are discussed in Section 6.13.1, and the Alternating Exposure option is discussed in Section 6.13.2. Energy Filtering   It is possible to remove events from the telemetry stream, and thus avoid telemetry saturation, by specifying an energy acceptance filter within which detected events will be telemetered. The default discards events above 3250 ADU (nominally 13 keV). The total per-chip background rates for different upper energy cut-offs are in Table 6.10. Starting 2006-Sep, a new energy to PHA conversion is used for observations with energy filters. Two sets of conversions are used, depending on the aimpoint of the observation. Observations with ACIS-S at the aimpoint use a conversion tailored for the BI CCDs and those with ACIS-I at the aimpoint use FI CCD-specific conversions. The BI and FI specific conversions are more accurate for each type of CCD than the conversion used in previous cycles. The assumption is that it is desirable to have the most accurate gain conversion for the CCD on which the HRMA default aimpoint falls. Note that the conversion only impacts the on-orbit energy filtering. Ground data processing will always apply the appropriate PHA to energy conversion. The observer should be aware that for observations which mix CCD types (i.e. both BI and FI CCDs on), the selected conversion (based on aimpoint as above), will nevertheless apply to all selected CCDs. This will not affect the observation if the low energy threshold for the energy filter (the "Event filter: Lower" parameter) is 0.5 keV or less, as the use of either conversion at these energies results in essentially no difference in the number of accepted events. However, for selection of a low energy threshold above 0.5 keV, the conversions are significantly different. Proposers who need an energy filter lower limit above 0.5 keV are encouraged to contact the CXC HelpDesk (https://cxc.harvard.edu/helpdesk/) to discuss their plans with an instrument scientist. Spatial Windows    A more sophisticated approach to removing data from the telemetry stream, and thus avoiding telemetry saturation, is by the use of a Spatial Window. This option offers a good deal of flexibility. One may define up to 6 Spatial Windows per CCD. Each window can be placed anywhere on the chip. Note there is a significant difference between a Spatial Window and a Subarray (Section 6.13.1): Subarrays affect the transmission of CCD data to the on-board ACIS processors; Spatial Windows select events detected by the processors and only telemeters a filtered subset of events. The user may also specify the window energy threshold and energy range. Spatial windows can specify the sample rate for events inside them. A sample rate of 0 excludes all events; the default rate of 1 includes all events; a rate of n > 1 telemeters one out of every n events in the window. As one example of a use case, a spatial window could be used to eliminate a bright, off-axis source that would otherwise overwhelm the telemetry stream. The order in which the spatial windows are specified is important if they overlap. The first specified window which includes a given pixel will be applied to events at that pixel. 6.22.3  Non-ACIS Parameters Relevant to an Observation with ACIS There are a small number of additional parameters that need to be considered in specifying an observation with ACIS: (1) the off-axis pointing (if required), which reduces the flux, and spreads out the image; (2) the roll angle (Chapter 4); (3) time constraints (if any); and (4) time monitoring intervals (if any). 6.22.4  Choosing CC Mode for Bright Source Observation The Continuous Clocking (CC) mode (see Section 6.13.3) can be used, with or without gratings, to mitigate pile-up of very bright sources (see Section 6.16.2). CC mode has two standard telemetry formats: "faint" and "graded." Faint mode retains the event-island information needed for the application of the CTI correction but requires a larger data volume per event compared to graded mode. Thus, graded mode is less likely to saturate telemetry but spectral features needing CTI correction cannot be recovered. Note, however, that gratings can be used to further reduce throughput while also preserving discrete spectral structures such as emission and absorption lines and edges in the dispersed spectrum regardless of telemetry format. The calibrations of TE and CC modes are very similar and only small differences are present with respect to ACIS gain, response, and integrated grade distribution, with CC faint mode versus CC graded mode choice resulting in less than 3% differences at the most. Starting in 2009-Nov, the CC faint and graded modes have been altered to include some of the flight grades that were previously rejected on-board: ACIS now telemeters all flight grades except 24, 107, 127, 214, 223, 248, 251, 254, and 255. It is recommended to use graded mode only in extreme cases. See Section 8.5.2 in Chapter 8 for for recommended ACIS modes, CCD choices, subarrays, etc; that section also discusses some aspects of analyzing the data. 6.22.5  Warm ACIS Observations As ACIS continues to experience focal plane temperatures above −120 °C, proposers whose science goals include imaging spectroscopy should consider minimizing the number of CCDs so as to reduce the potential for thermally-induced gain drifts that might broaden lines over long observations locating targets near the frame store regions (low CHIPY) using offset pointing (see Chapter 3) to maximize energy resolution (see Figures 6.14 and 6.15) and/or using the BI chip S3 which has a more spatially-uniform energy resolution across the CCD and better energy resolution than the FI chips at high CHIPY values. Warm FP temperatures do not affect ACIS imaging capabilities. Thus, proposed science goals that do not require precision spectroscopy need not be concerned with FP temperature. Since 2020, Mission Planners have used the user-supplied source count information to help identify proposed observations that do not have high precision spectroscopy as a science goal and thus may be observed at warmer focal plane temperatures, which can reduce the need to split an observation. For observations using HETG (or LETG) and ACIS the impact of higher FP temperatures is insignificant since the energy calibration is based on the position of the event in the dispersed spectrum. Accordingly, HETG observations may also be conducted at warm FP temperatures. (Note, however, imaging spectroscopy for the zero-order will be affected by warmer temperatures.) PREVIOUS INDEX NEXT
