MTA Monitoring Report 05/29/26 - 06/04/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels		(110,18) (266,210)
Current Warm Pixels			(99,899) (803,225) (178,149) (526,66)	(21,95) (811,637)			(335,412)	(275,393)
Flickering Warm Pixels	(154,9) (786,117)	(910,239) (802,665) (427,125)	(726,537) (665,25)	(680,391)	(877,408) (161,206) (641,669) (258,797) (226,202) (233,102) (669,577) (367,511) (369,376) (728,340) (233,227) (263,317) (282,385) (357,303)	(670,387) (360,249) (884,31) (287,164) (849,169)		(541,41) (838,239) (447,769) (182,474) (597,187) (295,978) (136,65) (220,813)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 512 510		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
148.05	-104.05	1.53
149.00	-112.75	0.22
149.84	-111.57	0.59
150.92	-109.82	0.60
152.10	-115.99	0.43
153.48	-98.80	0.92

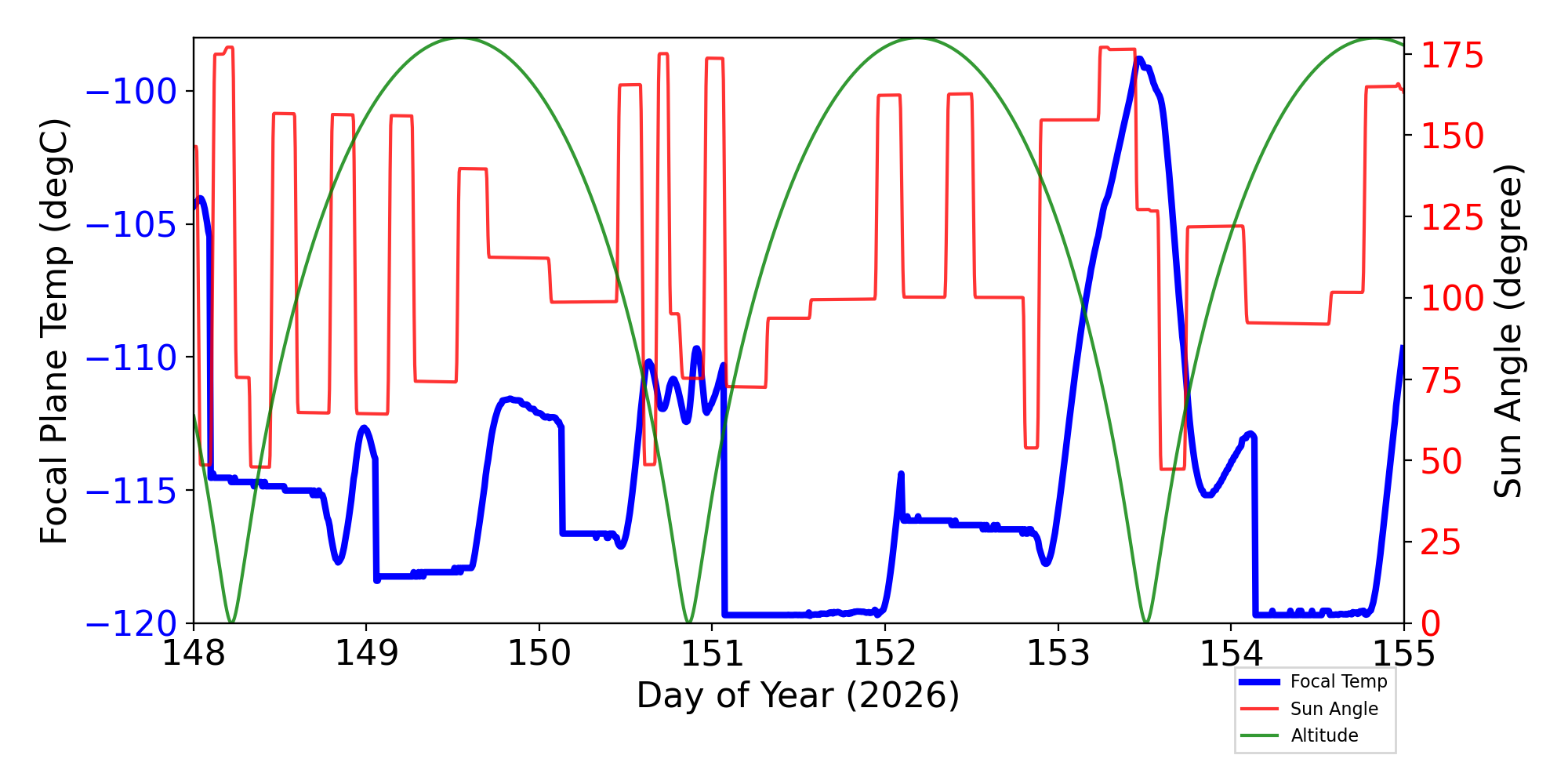

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

8 TSC moves this period

weekly average time/step	0.00142 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	05/29/26	05/30/26	05/31/26	06/01/26	06/02/26	06/03/26	06/04/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT				677.96	677.96	677.96	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC				(61.19)	(35.58)	(76.63)	(84.38)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT		310.04	310.68	309.19		309.60		(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI							(-3.43)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI					(-3.43)		(-3.43)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR					(0.00)	(0.00)		(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
HRMAAVG		(304.31)	(304.58)		(304.10)	(304.09)	(304.52)	(306.0) 308.0	(305.0) 309.0	K	AVG OF HRMA METRICS
MZOBACONE	312.81				308.94	315.90	313.84	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	304.44				303.66		305.00	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG					308.71			(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.66	4.42	4.59	4.32		4.49	4.66	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	308.86	312.44	313.12	312.20		311.99	309.54	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCYZ_RW6	(277.17)	(276.44)	(276.07)					(288.15) 363.15	(278.15) 404.15	K	RWA -6 TEMP (RWA CRNR COMP)
TFTERANGE	47.98	48.91	48.92		47.89		47.19	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

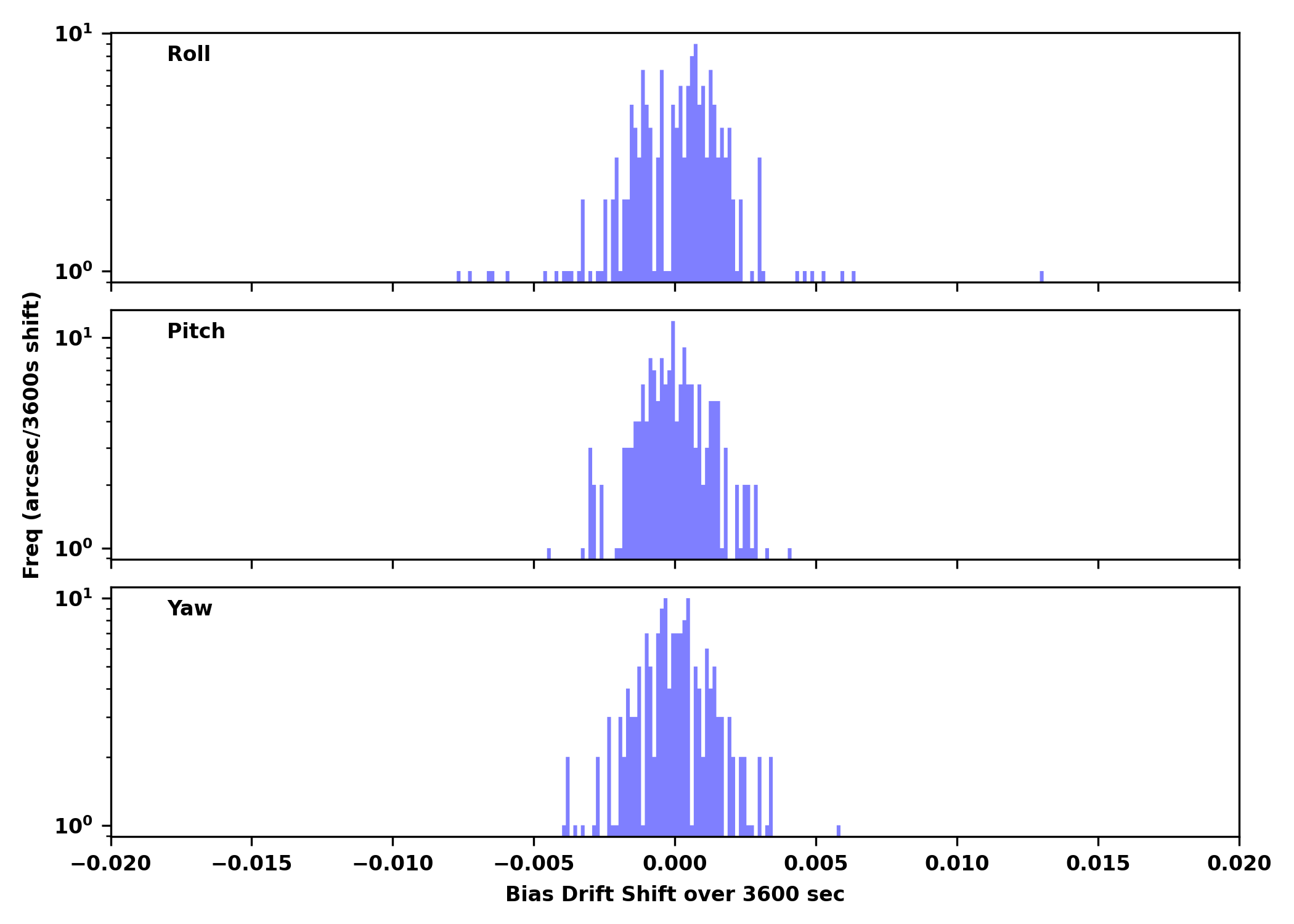

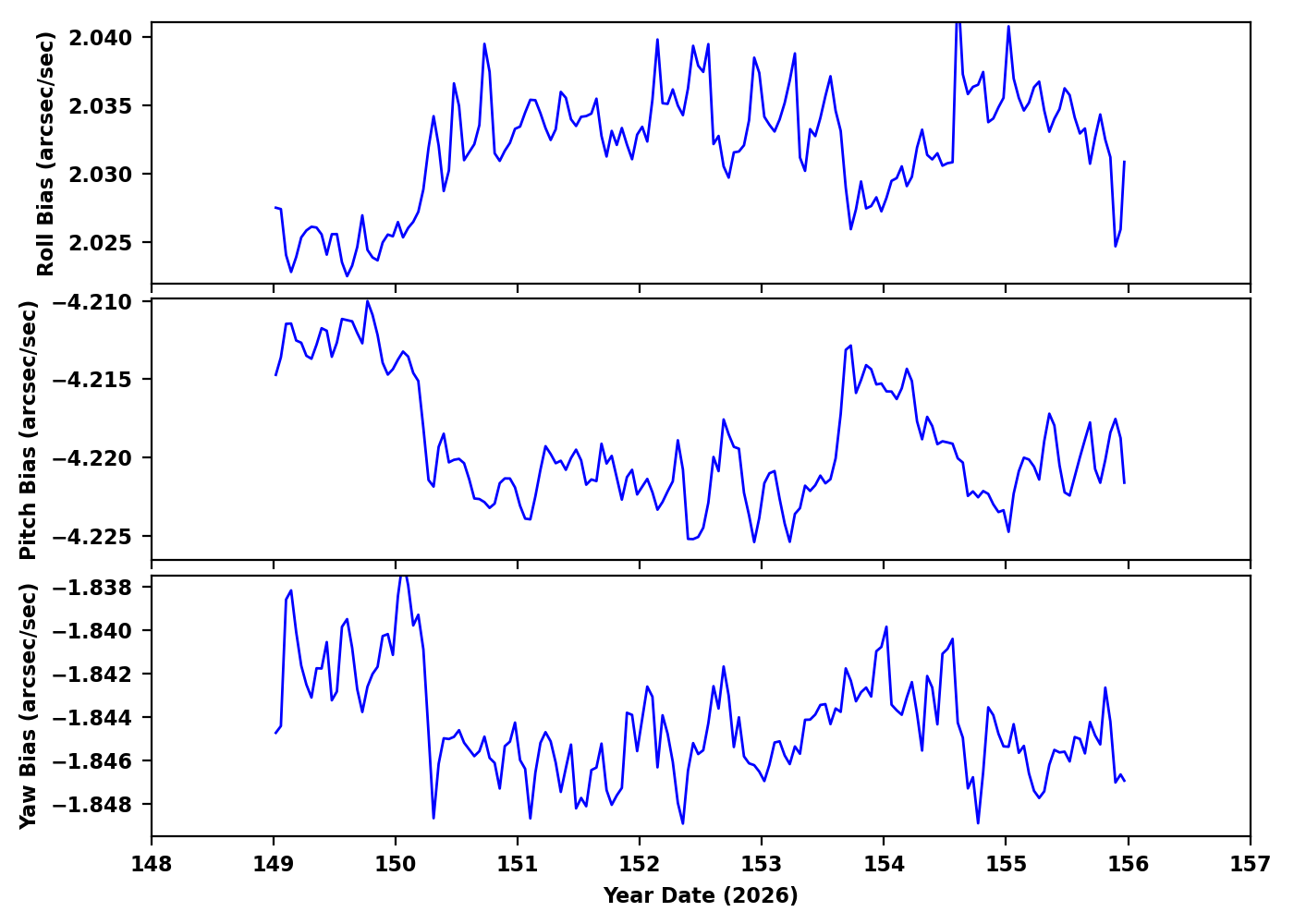

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
32361	ACIS-67	NONE	NGC5728	OK	OK
30398	ACIS-5678	NONE	ZwCl 0857.9+2107	OK	OK
32362	ACIS-67	NONE	NGC5728	OK	OK
29860	ACIS-67	NONE	Leo A	OK	OK
32363	ACIS-5678	NONE	ZwCl 0857.9+2107	OK	OK
32365	ACIS-0123	NONE	Abell 3558 SE	OK	OK
30170	ACIS-3678	NONE	NGC4540	OK	OK
30952	ACIS-2367	NONE	Kepler's SNR	OK	OK
31523	ACIS-456789	HETG	V444 Cyg	OK/NA	OK
32359	ACIS-67	NONE	Leo A	OK	OK
32366	ACIS-0123	NONE	Abell 2255	OK	OK
30126	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
31522	ACIS-5678	HETG	V444 Cyg	OK/NA	OK
32242	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
32368	ACIS-3678	NONE	EP260302a	OK	OK
32377	ACIS-3678	NONE	EP260302a	OK	OK
31449	ACIS-67	NONE	6dFJ0421194-313805	OK	OK
30535	ACIS-678	NONE	PWN J1631-4721	OK	OK
29982	ACIS-67	NONE	IIZW083	OK	OK
31146	ACIS-5678	NONE	SN2026hkg	OK	OK
29885	ACIS-2567	NONE	SDSS J112728.73+195112.2	OK	OK
32375	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
30263	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32376	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
30119	ACIS-0123	NONE	PSR J1015-5719	OK	OK

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
eb1v	off	-0.020	1.304e-04	32.44 +/- 0.19	-0.01 +/- 0.00	V	BATT 1 VOLTAGE
	on	-0.046	0.007	32.20 +/- 0.67	0.01 +/- 0.00	V	BATT 1 VOLTAGE
eb2ci	off	-0.004	7.386e-05	0.33 +/- 0.07	-(5.73+/-11.58)e-4	AMP	BATT 2 CHARGE CURRENT
	on	0.007	0.005	0.43 +/- 0.30	-0.00 +/- 0.00	AMP	BATT 2 CHARGE CURRENT
eb2v	off	-0.019	1.342e-04	32.43 +/- 0.19	-0.01 +/- 0.00	V	BATT 2 VOLTAGE
	on	-0.047	0.009	32.17 +/- 0.67	0.01 +/- 0.00	V	BATT 2 VOLTAGE
ecnv3v		-0.002	1.638e-05	15.30 +/- 0.02	-(5.56+/-6.05)e-5	V	CONV 3 +15V OUTPUT
eepa5v		-9.398e-05	1.866e-04	5.24 +/- 0.16	(3.71+/-0.23)e-10	V	+5V RCTU_EP A

S/C Main Temperatures

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
tape2pst		0.613	0.002	(2.91+/-0.05)e2	0.04 +/- 0.04	K	PEA-2 POWER SUPPLY TEMP
tapea1t		0.544	0.002	(3.02+/-0.05)e2	0.04 +/- 0.04	K	PEA-1 CASE TEMP
tcylaft1		1.986	0.006	(3.07+/-0.17)e2	0.21 +/- 0.13	K	CNT CYL TEMP:16-IN FWD OF SC-TS FIT-1
tpc_ese		1.178	0.008	(2.87+/-0.09)e2	0.04 +/- 0.21	K	ESE TEMP
tsamyt	on	-0.079	0.039	(3.19+/-0.03)e2	0.01 +/- 0.05	K	-Y WING SOLAR ARRAY TEMP
	off	-0.005	0.002	(3.19+/-0.02)e2	-0.03 +/- 0.02	K	-Y WING SOLAR ARRAY TEMP
tsapyt	on	-0.043	0.039	(3.19+/-0.03)e2	0.02 +/- 0.05	K	+Y WING SOLAR ARRAY TEMP
	off	0.030	0.002	(3.19+/-0.02)e2	-0.02 +/- 0.02	K	+Y WING SOLAR ARRAY TEMP

S/C Anc Temperature

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
tatecdrt	0.623	0.002	(2.90+/-0.05)e2	0.06 +/- 0.04	K	TEC DRIVER RDNT TEMP
trspmtpc	1.598	0.006	(2.98+/-0.14)e2	0.09 +/- 0.14	K	RAD SHR PNL TEMP:TTWN MUPS AND PCAD
tsctsf1	1.931	0.005	(3.04+/-0.16)e2	0.17 +/- 0.10	K	SC-TS FITTING -1 TEMP
tsctsf2	0.848	0.003	(2.80+/-0.07)e2	0.03 +/- 0.05	K	SC-TS FITTING -2 TEMP
