MTA Monitoring Report 03/13/26 - 03/19/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8	CCD9
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)	(910,239)	(178,149) (99,899) (803,225) (526,66) (104,31) (837,378)	(811,637) (21,95) (394,80) (680,391)
Flickering Warm Pixels	(692,141) (171,937) (283,278)	(370,70) (427,125) (271,24) (787,181)	(726,537) (353,201) (345,12) (665,25)	(931,553) (617,159) (318,53)		(670,387) (1000,214) (884,31) (849,169)	(335,412)	(275,393)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					510 512 1022		512 1022		40
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 3 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
072.91	-110.61	1.28
073.58	-110.18	0.42
076.79	-101.50	2.28

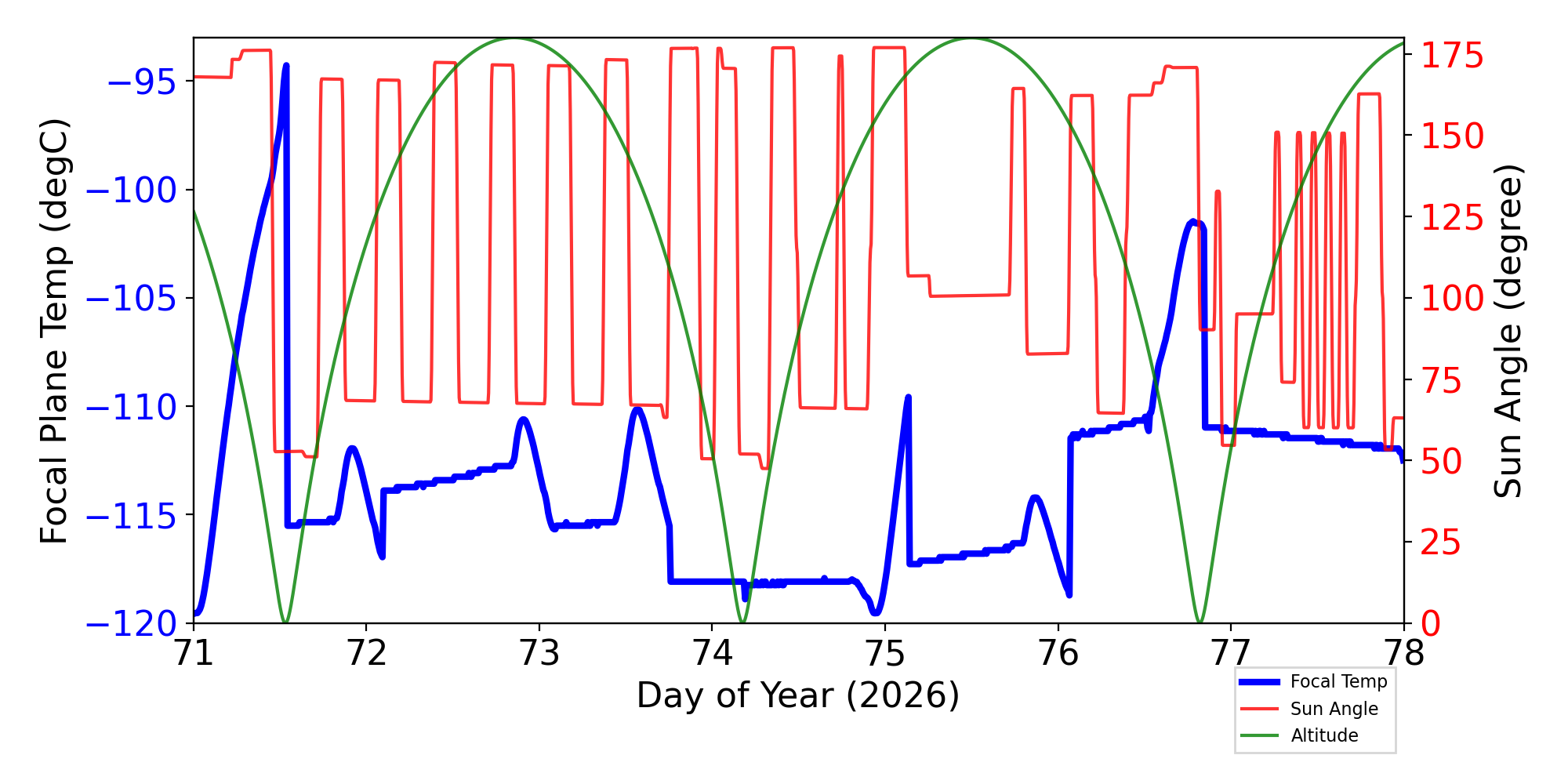

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

12 TSC moves this period

weekly average time/step	0.00143 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	03/13/26	03/14/26	03/15/26	03/16/26	03/17/26	03/18/26	03/19/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AWD1TQI						(-3.39)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI		(-3.43)			(-3.43)	(-3.43)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)		(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
HRMACAV			295.71		295.79			(293.4) 294.8	(292.8) 295.5	TEMP	HRMA CAVITY AVG TEMP
MZOBACONE				311.35	312.15	311.02	309.95	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG				302.59	303.38	302.83	301.77	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG	303.40	302.99	302.39	308.05	308.90			(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.73	4.77	4.87	4.70	4.69	4.85	4.69	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
TCYZ_RW1							(276.07)	(288.15) 363.15	(278.15) 404.15	K	RWA -1 TEMP (RWA CRNR COMP)
TFTERANGE	45.05			47.90	47.39	47.34	45.50	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

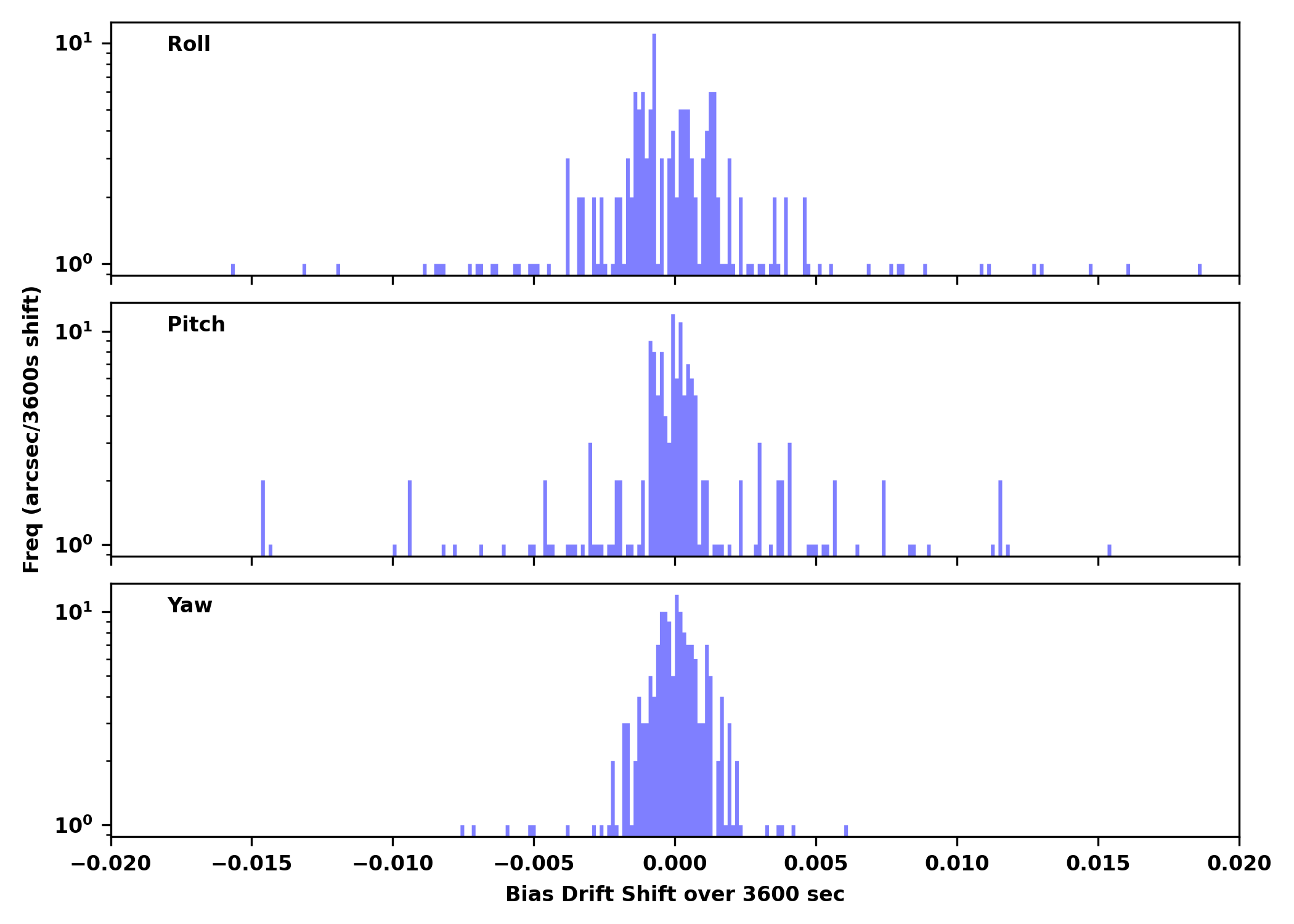

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30342	ACIS-01236	NONE	Perseus cluster W	OK	OK
32214	ACIS-67	NONE	SDSS J105432.03+122851.9	OK	OK
32217	ACIS-01236	NONE	Perseus cluster W	OK	OK
32215	ACIS-67	NONE	SDSS J105432.03+122851.9	OK	OK
32203	ACIS-67	NONE	SDSSJ110540.09+064225.6	OK	OK
30356	ACIS-01236	NONE	Perseus cluster S	OK	OK
32206	ACIS-67	NONE	Mrk732_s1	OK	OK
32218	ACIS-01236	NONE	Perseus cluster S	OK	OK
32204	ACIS-67	NONE	Mrk732	OK	OK
30362	ACIS-01236	NONE	Perseus cluster E	OK	OK
32207	ACIS-0123	NONE	IC 0678	OK	OK
32219	ACIS-0123	NONE	Perseus cluster E	OK	OK
29896	ACIS-0123	NONE	Cloverleaf ORC	OK	OK
30366	ACIS-0123	NONE	Perseus cluster E	OK	OK
32211	ACIS-0123	NONE	Cloverleaf ORC	OK	OK
32212	ACIS-0123	NONE	Cloverleaf ORC	OK	OK
32220	ACIS-0123	NONE	Perseus cluster E	OK	OK
31957	ACIS-0123	NONE	PSR J1459-6053	OK	OK
30479	ACIS-23678	NONE	PWN J1631-4721	OK	OK
31257	ACIS-67	NONE	M 87	OK	OK
31125	ACIS-67	NONE	PSR J1813-1749	CC	OK
29659	ACIS-3678	NONE	NGC4548	OK	OK
30360	ACIS-01236	NONE	Perseus cluster E	OK	OK
32225	ACIS-3678	NONE	NGC4548	OK	OK
31066	HRC-I	NONE	HD 29419	OK	OK
30429	ACIS-0123	NONE	Abell 2255	OK	OK
31380	ACIS-01	NONE	Cas A	OK	OK
31379	ACIS-01	NONE	Cas A	OK	OK
31381	ACIS-23	NONE	Cas A	OK	OK
32226	ACIS-3678	NONE	NGC4548	OK	OK
31378	ACIS-23	NONE	Cas A	OK	OK
32233	ACIS-0123	NONE	Perseus cluster E	OK	OK
29652	ACIS-3678	NONE	NGC3626	OK	OK
32234	ACIS-0123	NONE	Perseus cluster E	OK	OK
32223	ACIS-3678	NONE	NGC3626	OK	OK
32235	ACIS-01236	NONE	Perseus cluster E	OK	OK
32222	ACIS-3678	NONE	NGC3626	OK	OK
30363	ACIS-01236	NONE	Perseus cluster E	OK	OK

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
eb1v	off	-0.020	1.318e-04	32.44 +/- 0.20	-0.01 +/- 0.00	V	BATT 1 VOLTAGE
	on	-0.046	0.007	32.20 +/- 0.67	0.01 +/- 0.00	V	BATT 1 VOLTAGE
eb2ci	off	-0.004	7.514e-05	0.33 +/- 0.07	-(7.02+/-11.87)e-4	AMP	BATT 2 CHARGE CURRENT
	on	0.007	0.005	0.43 +/- 0.30	-0.00 +/- 0.00	AMP	BATT 2 CHARGE CURRENT
eb2v	off	-0.019	1.365e-04	32.44 +/- 0.19	-0.01 +/- 0.00	V	BATT 2 VOLTAGE
	on	-0.047	0.009	32.17 +/- 0.67	0.01 +/- 0.00	V	BATT 2 VOLTAGE
ecnv3v		-0.002	1.659e-05	15.30 +/- 0.02	-(8.84+/-6.12)e-5	V	CONV 3 +15V OUTPUT
eepa5v		-1.076e-04	1.900e-04	5.24 +/- 0.16	(3.41+/-0.23)e-10	V	+5V RCTU_EP A

S/C Main Temperatures

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
tape2pst		0.613	0.002	(2.91+/-0.05)e2	0.02 +/- 0.04	K	PEA-2 POWER SUPPLY TEMP
tapea1t		0.543	0.002	(3.02+/-0.05)e2	0.02 +/- 0.04	K	PEA-1 CASE TEMP
tcylaft1		1.974	0.006	(3.07+/-0.16)e2	0.16 +/- 0.13	K	CNT CYL TEMP:16-IN FWD OF SC-TS FIT-1
tpc_ese		1.178	0.008	(2.87+/-0.09)e2	0.04 +/- 0.21	K	ESE TEMP
tsamyt	on	-0.079	0.039	(3.19+/-0.03)e2	0.01 +/- 0.05	K	-Y WING SOLAR ARRAY TEMP
	off	-7.219e-04	0.002	(3.19+/-0.02)e2	-0.00 +/- 0.02	K	-Y WING SOLAR ARRAY TEMP
tsapyt	on	-0.043	0.039	(3.19+/-0.03)e2	0.02 +/- 0.05	K	+Y WING SOLAR ARRAY TEMP
	off	0.034	0.002	(3.19+/-0.02)e2	0.01 +/- 0.02	K	+Y WING SOLAR ARRAY TEMP

S/C Anc Temperature

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
tatecdrt	0.622	0.002	(2.90+/-0.05)e2	0.03 +/- 0.04	K	TEC DRIVER RDNT TEMP
trspmtpc	1.589	0.006	(2.98+/-0.14)e2	0.03 +/- 0.15	K	RAD SHR PNL TEMP:TTWN MUPS AND PCAD
tsctsf1	1.921	0.005	(3.04+/-0.16)e2	0.12 +/- 0.10	K	SC-TS FITTING -1 TEMP
tsctsf2	0.841	0.003	(2.80+/-0.07)e2	0.01 +/- 0.05	K	SC-TS FITTING -2 TEMP

If you have any questions, please contact: swolk@head.cfa.harvard.edu
