MTA Monitoring Report 10/02/26 - 10/08/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (283,278) (786,117) (910,239) (427,125) (99,899) (178,149) (837,378) (104,31) (665,25) (526,66) (803,225) (21,95)     (670,387) (335,412)
Flickering Warm Pixels (154,9) (171,937) (787,181) (802,665) (370,70) (726,537) (353,201) (144,50) (394,80) (811,637) (680,391) (617,159)   (233,227) (357,303) (161,206) (282,385) (263,317) (728,340) (233,102) (369,376) (669,577) (367,511) (258,797) (1000,214) (849,169) (884,31) (126,856)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 510 1022   512 1022
Flickering Warm column candidates         243

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

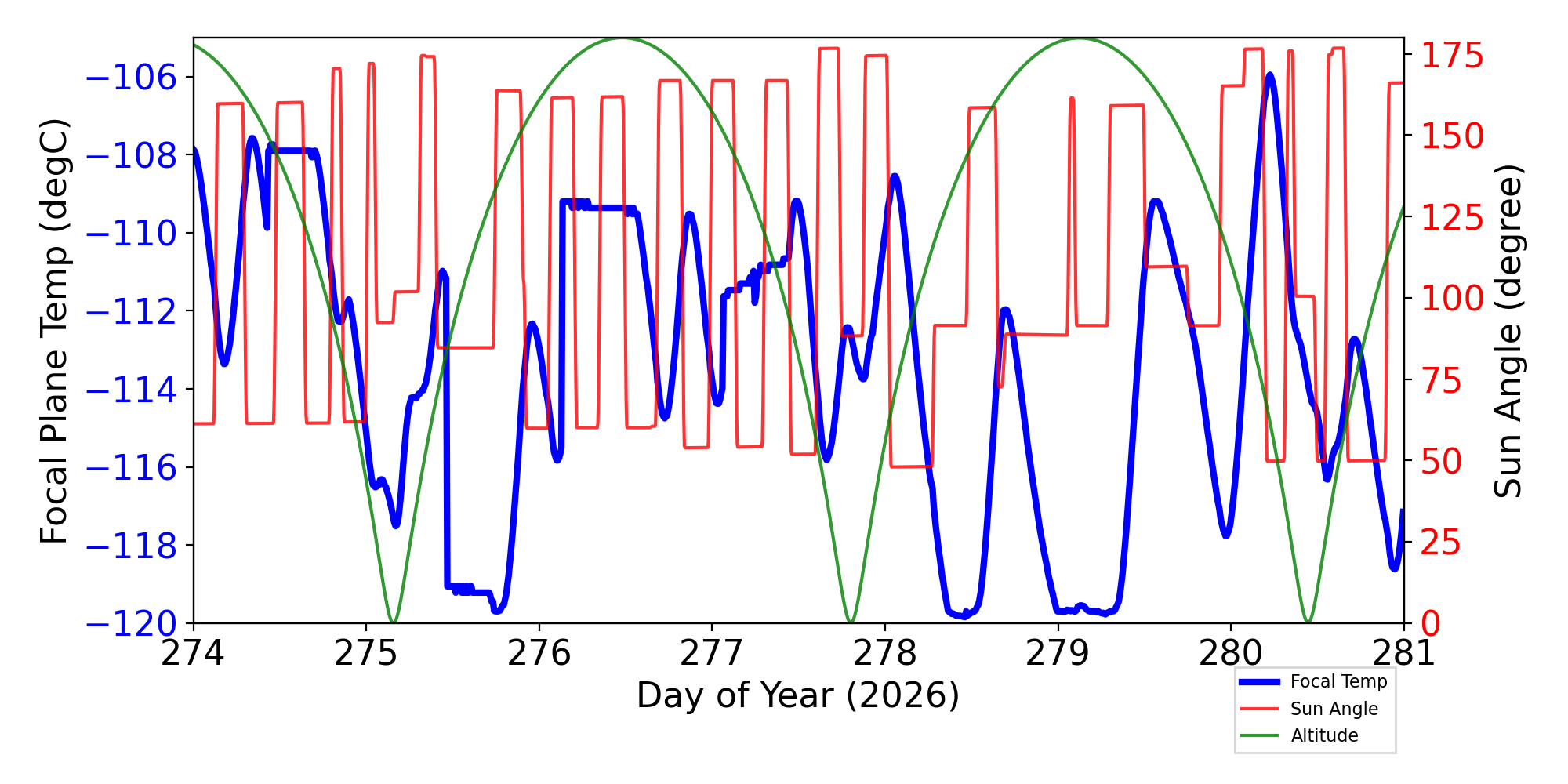

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

8 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 10/02/26 10/03/26 10/04/26 10/05/26 10/06/26 10/07/26 10/08/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
1CRBT 677.96 498.70 485.53 677.96 677.96 677.96 493.43 (136.15)
183.15		 (131.15)
193.15		 KCOLD RADIATOR TEMP. B
1CRBTC (97.31) (89.55) (86.96) (84.38) (84.38) (76.63) (84.38) (136.15)
183.15		 (131.15)
193.15		 CCOLD RADIATOR TEMP. B
AFTBLKHDT         308.31     (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI       (-3.39)   (-3.35)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD4TQI         (-3.43)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 4 TORQUE CURRENT
AWD6TQI       (-3.43) (-3.43) (-3.43) (-3.43) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV         (0.00)     (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR         (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
IMHBLV             (0.00) (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 313.41 310.66   312.22 314.81 311.73 311.80 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 304.35 302.50   303.08   305.00 303.22 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG     303.63 308.65       (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.73 4.66 4.70 4.96 4.58 4.62 4.58 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 309.08       310.61 309.85   (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TFTERANGE 46.90 45.19   47.57   47.70 48.56 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

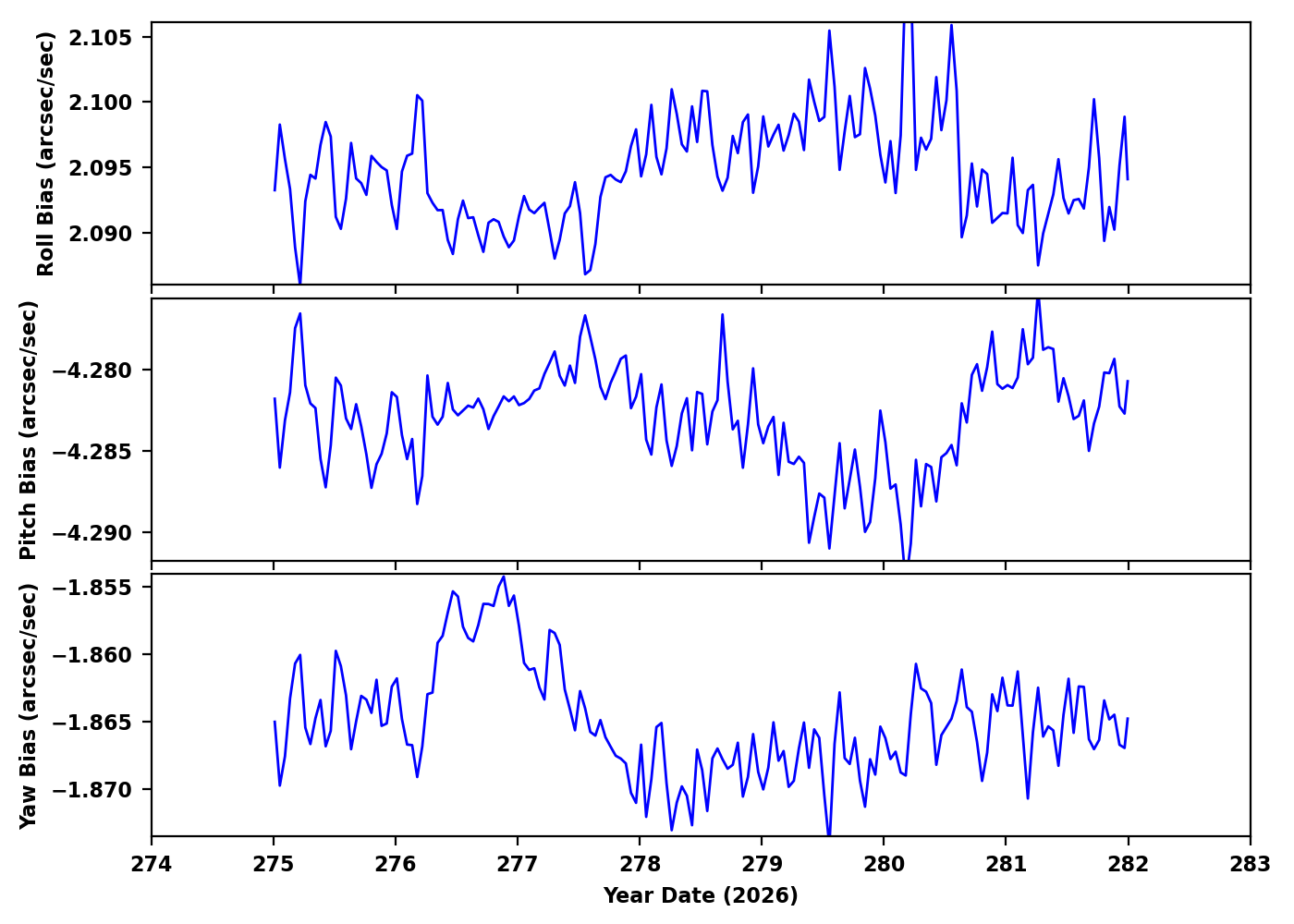

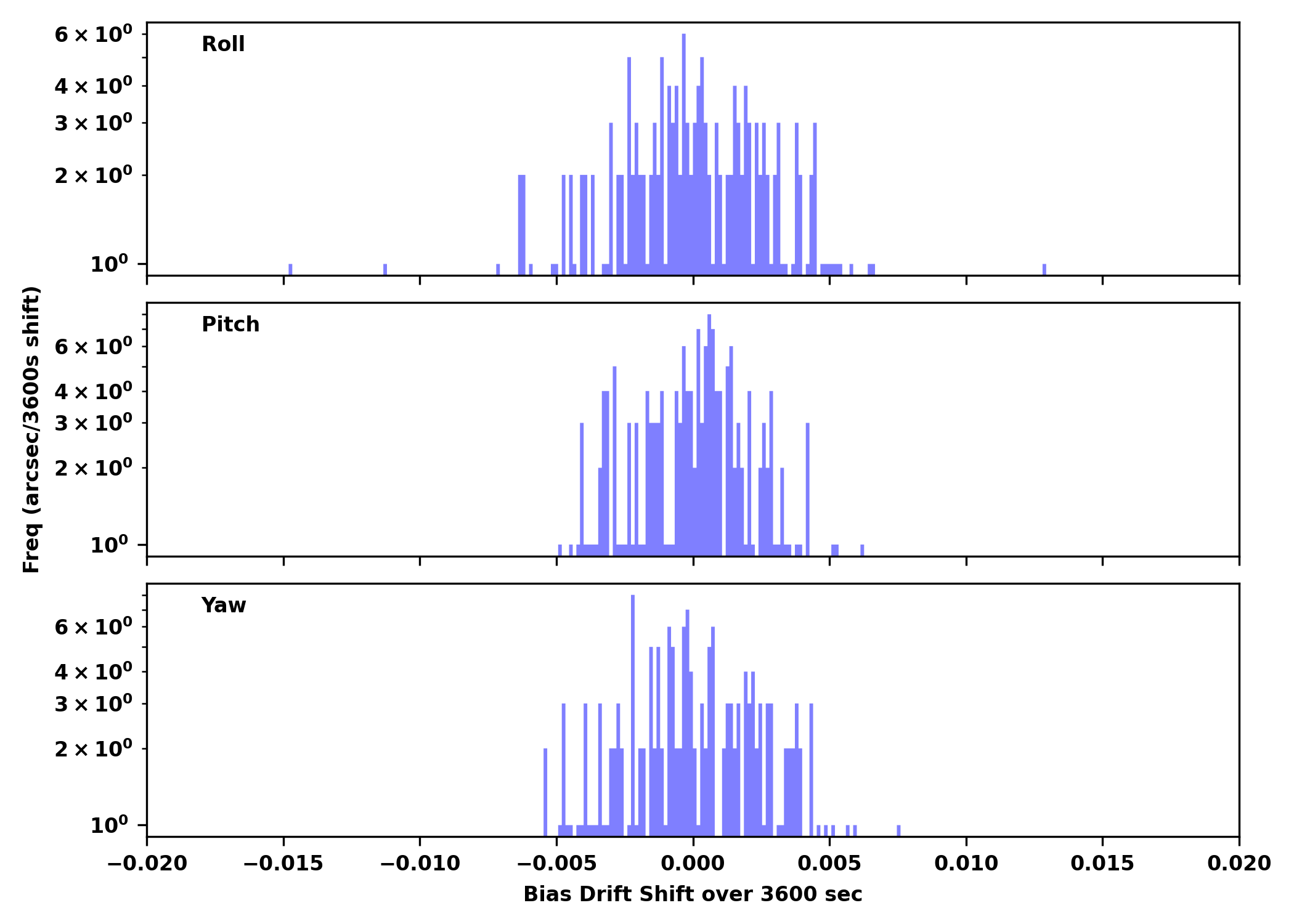

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
33456 ACIS-01236 NONE [MWE2019] 1-435 OK OK
30448 HRC-I NONE G29-38 OK OK
33462 ACIS-0123 NONE PSR J1101-6101 OK OK
30432 ACIS-0123 NONE Abell 2255 OK OK
33457 ACIS-0123 NONE PSR J1015-5719 OK OK
33463 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
31682 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
30413 ACIS-0123 NONE MACS J0018.5+1626 OK OK
33458 ACIS-0123 NONE PSR J1015-5719 OK OK
33451 ACIS-67 NONE SDSSJ110011.85+451349.4 OK OK
33466 ACIS-67 NONE SDSSJ110011.85+451349.4 OK OK
33459 ACIS-0123 NONE MACS J0018.5+1626 OK OK
33460 ACIS-0123 NONE MACS J0018.5+1626 OK OK
30480 ACIS-0123 NONE Hoinga OK OK
31653 ACIS-0123 NONE BOSS0210E OK OK
31122 HRC-I LETG SNR 1987A OK/NA OK
31595 ACIS-67 NONE Kes 73 OK OK
31505 HRC-I LETG SNR 1987A OK/NA OK
33472 ACIS-0123 NONE BOSS0210E OK OK
33467 ACIS-67 NONE 1RXS J052437.4-084200 OK OK
31673 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
31506 HRC-I LETG SNR 1987A OK/NA OK
31675 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
33468 ACIS-0123 NONE Hoinga OK OK
31955 ACIS-3678 NONE AM0126-525 OK OK
31686 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
33471 HRC-I LETG SNR 1987A OK/NA OK
33438 ACIS-01236 NONE Abell 2108 OK OK

Trending

This week's focus is EPHIN

Last reported on Jul 23.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
5eiot 0.0860.020(3.37+/-0.17)e20.13 +/- 0.34KEIO TEMP
5ephint 2.1040.009(3.22+/-0.19)e2-0.10 +/- 0.16KEPHIN TEMP
teio 1.4690.017(3.19+/-0.19)e20.16 +/- 0.35KEPHIN ELECTRONICS HOUSING TEMP
tephin 2.0830.009(3.22+/-0.19)e2-0.01 +/- 0.16KEPHIN SENSOR HOUSING TEMP

If you have any questions, please contact: swolk@head.cfa.harvard.edu
