MTA Monitoring Report 07/17/26 - 07/23/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels		(910,239)	(104,31) (178,149) (803,225) (526,66)			(849,169)	(335,412)
Flickering Warm Pixels	(283,278) (786,117)	(370,70) (787,181) (700,242) (427,125)	(353,201) (99,899) (665,25) (837,378) (726,537)	(680,391) (931,553) (318,53) (394,80) (21,95) (811,637) (617,159)	(263,317) (369,376) (357,303)	(1000,214) (670,387) (884,31)		(220,813) (139,109) (136,65) (838,239) (541,41) (275,393) (182,474) (597,187)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 512 510		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 11 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
196.25	-117.45	0.66
197.48	-109.68	0.86
197.89	-109.52	0.42
198.57	-102.33	0.77
199.11	-110.53	0.38
199.84	-110.04	0.74
200.23	-109.97	0.36
200.55	-111.07	0.35
201.00	-114.58	0.17
201.21	-100.97	0.56
202.86	-110.48	1.53

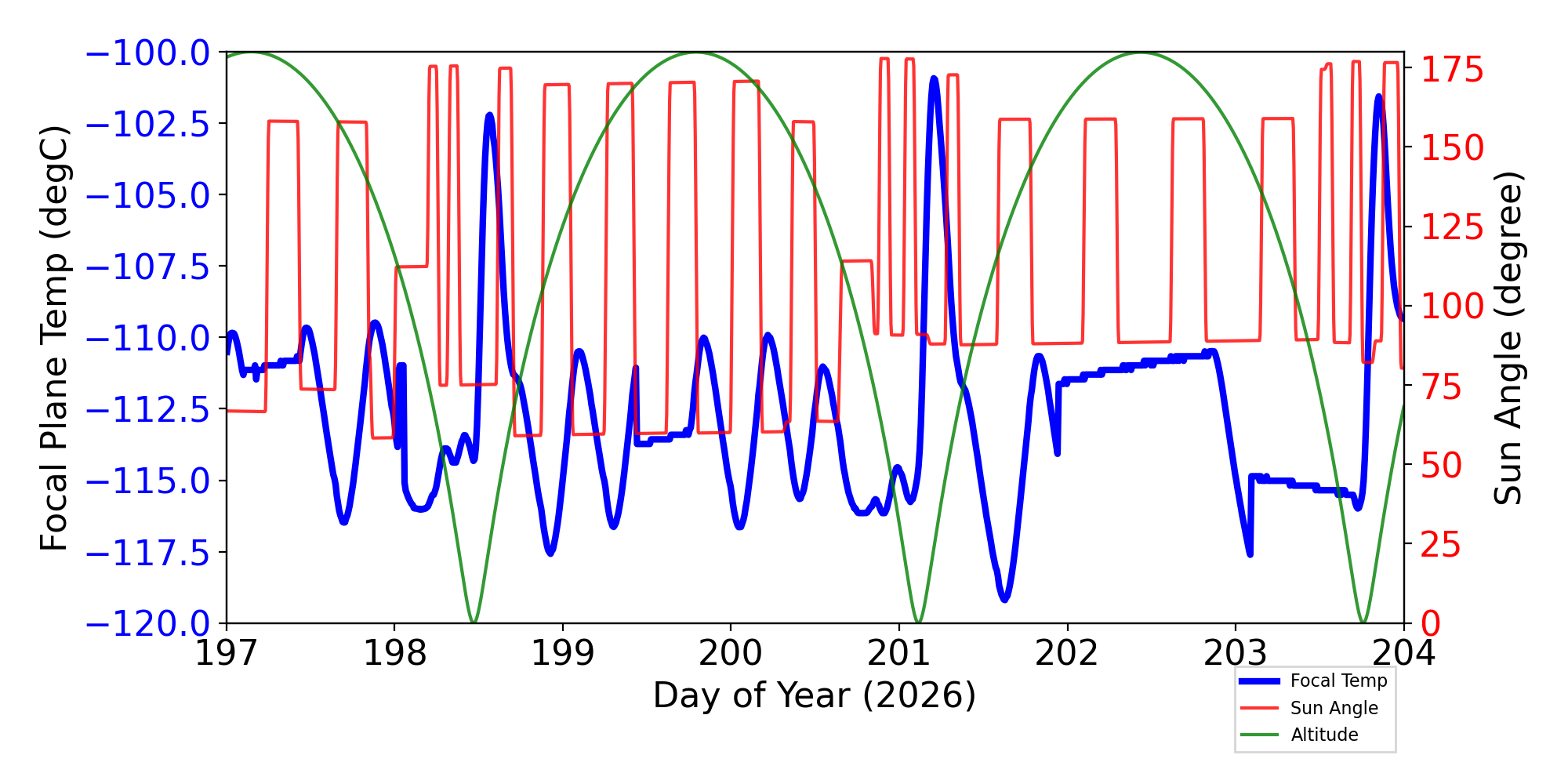

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

13 TSC moves this period

weekly average time/step	0.00137 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	07/17/26	07/18/26	07/19/26	07/20/26	07/21/26	07/22/26	07/23/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	677.96	677.96	677.96	677.96	677.96	677.96	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(7.62)	(20.30)	(22.84)	(10.15)	(33.03)	(12.69)	(27.93)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AWD1TQI	(-3.39)					(-3.39)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.43)					(-3.47)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR		(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
ESAMYI			(0.06)			(0.06)		(5.63) 30.15	(5.3) 33.0	AMP	S/A -Y CURRENT
ESAPYI			(0.14)			(0.14)		(5.54) 30.15	(5.2) 33.0	AMP	S/A +Y CURRENT
MZOBACONE	311.22			310.38	312.30	312.87	311.16	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	302.76			302.02	303.64	304.19	302.66	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG		304.41	304.93					(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.49	4.55	4.65	4.72	4.68	4.61	4.75	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE					308.06	308.66		(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE	47.68		46.77	47.50		48.06	46.93	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3			(268.06)				(268.79)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

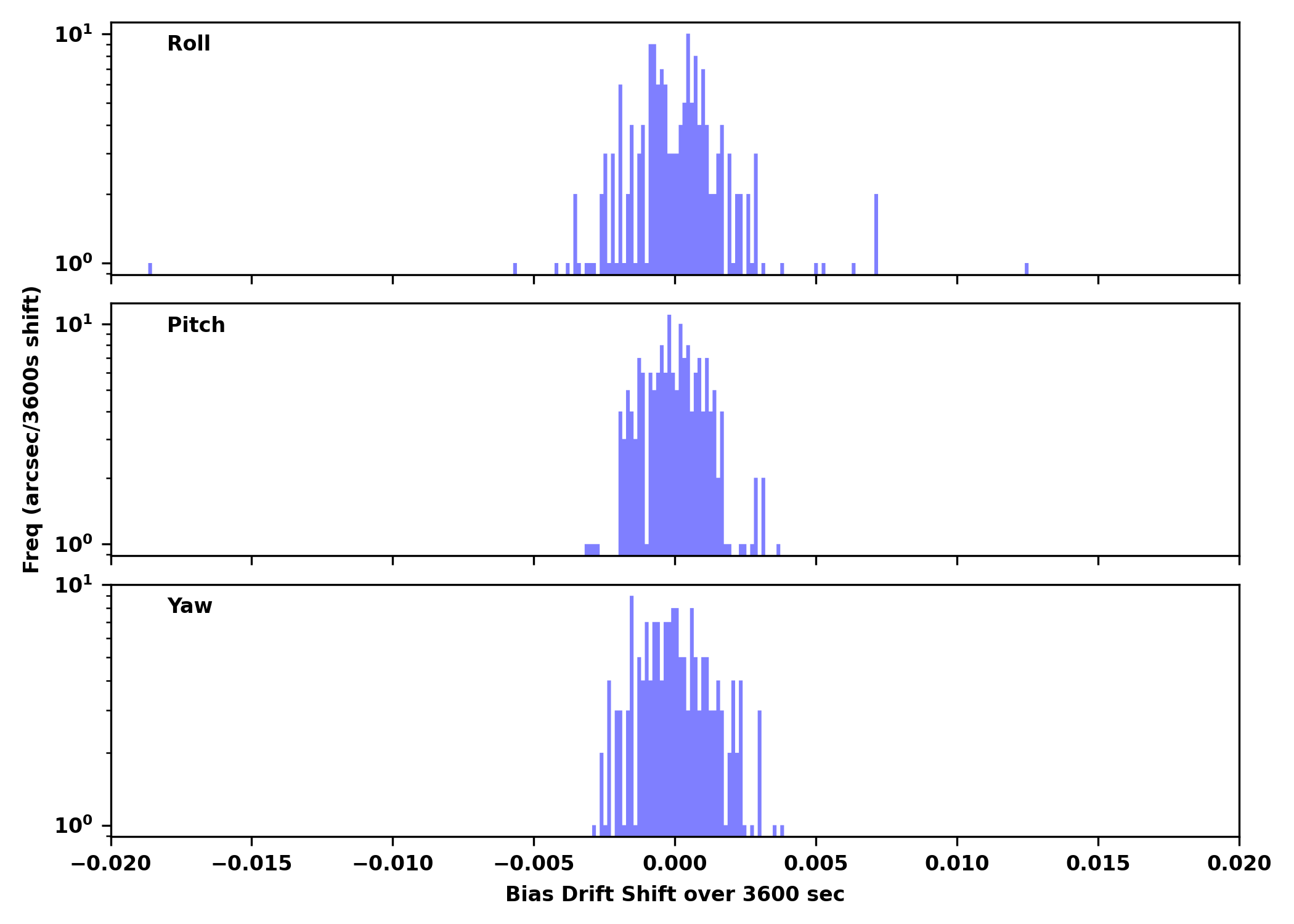

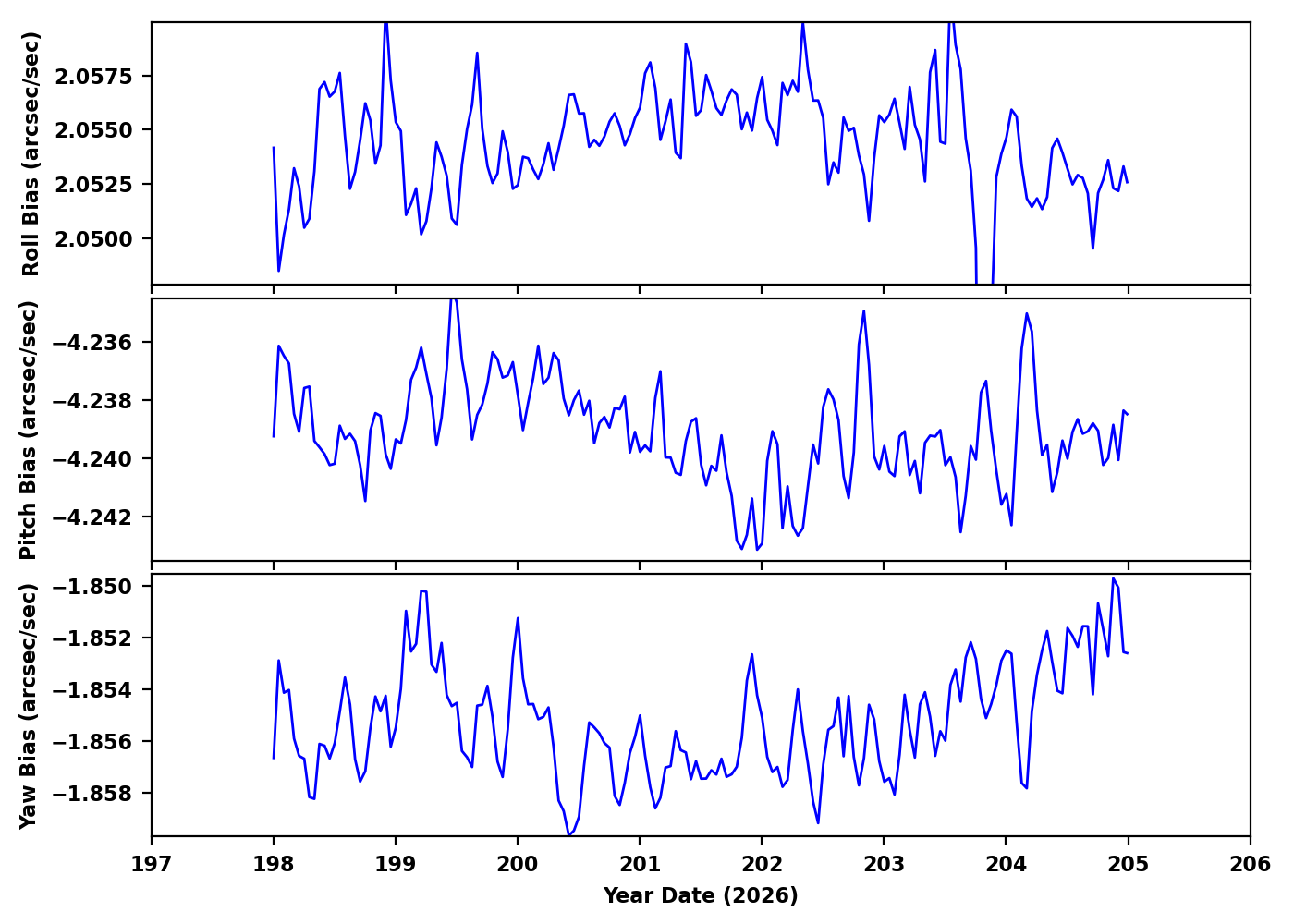

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30330	ACIS-0123	NONE	Perseus cluster N	OK	OK
32442	ACIS-67	NONE	Kes 73	OK	OK
31090	ACIS-67	NONE	sn2010da	OK	OK
31662	ACIS-3678	NONE	PSO J308.0416-21.2339	OK	OK
32435	ACIS-01236	NONE	Perseus cluster N	OK	OK
32443	ACIS-67	NONE	PSO J308.0416-21.2339	OK	OK
30345	ACIS-01236	NONE	Perseus cluster W	OK	OK
32436	ACIS-0123	NONE	Perseus cluster W	OK	OK
32444	ACIS-67	NONE	PSO J308.0416-21.2339	OK	OK
30368	ACIS-0123	NONE	Perseus cluster E	OK	OK
32445	ACIS-367	NONE	PSO J308.0416-21.2339	OK	OK
32437	ACIS-01236	NONE	Perseus cluster E	OK	OK
32432	ACIS-3678	NONE	NGC4298	OK	OK
32440	ACIS-0123	NONE	V4641 Sgr N1	OK	OK
32438	ACIS-67	NONE	sn2010da	OK	OK
30022	ACIS-67	NONE	ClG J0242-2132	OK	OK
29983	ACIS-67	NONE	WGD2038-4008	OK	OK
32450	ACIS-67	NONE	WGD2038-4008	OK	OK
30401	ACIS-67	NONE	ClG J0242-2132	OK	OK
30220	ACIS-67	NONE	WGD2038-4008	OK	OK
30405	ACIS-67	NONE	ClG J0242-2132	OK	OK
32451	ACIS-67	NONE	WGD2038-4008	OK	OK
32457	ACIS-67	NONE	ClG J0242-2132	OK	OK
32458	ACIS-3567	NONE	ClG J0242-2132	OK	OK
30221	ACIS-67	NONE	WGD2038-4008	OK	OK
30029	ACIS-0123	NONE	SPT-CLJ0446-4606	OK	OK
30338	ACIS-0123	NONE	Perseus cluster W	OK	OK
32452	ACIS-67	NONE	WGD2038-4008	OK	OK
30339	ACIS-0123	NONE	Perseus cluster W	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
5eiot	0.086	0.021	(3.37+/-0.17)e2	0.15 +/- 0.34	K	EIO TEMP
5ephint	2.118	0.009	(3.22+/-0.19)e2	-0.13 +/- 0.16	K	EPHIN TEMP
teio	1.472	0.017	(3.19+/-0.19)e2	0.16 +/- 0.35	K	EPHIN ELECTRONICS HOUSING TEMP
tephin	2.097	0.009	(3.22+/-0.19)e2	-0.03 +/- 0.16	K	EPHIN SENSOR HOUSING TEMP
