MTA Monitoring Report 09/26/25 - 10/02/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels         (177,147)
Current Warm Pixels (786,117) (910,239) (985,393) (802,665) (837,378) (726,537) (99,899) (178,149) (803,225) (526,66) (104,31) (21,95)     (849,169) (335,412)
Flickering Warm Pixels   (427,125) (90,859) (665,25) (811,637) (680,391) (617,159)     (670,387) (1000,214) (368,231) (838,239) (234,69) (136,65) (597,187) (881,53) (139,109)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 1022 510   512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

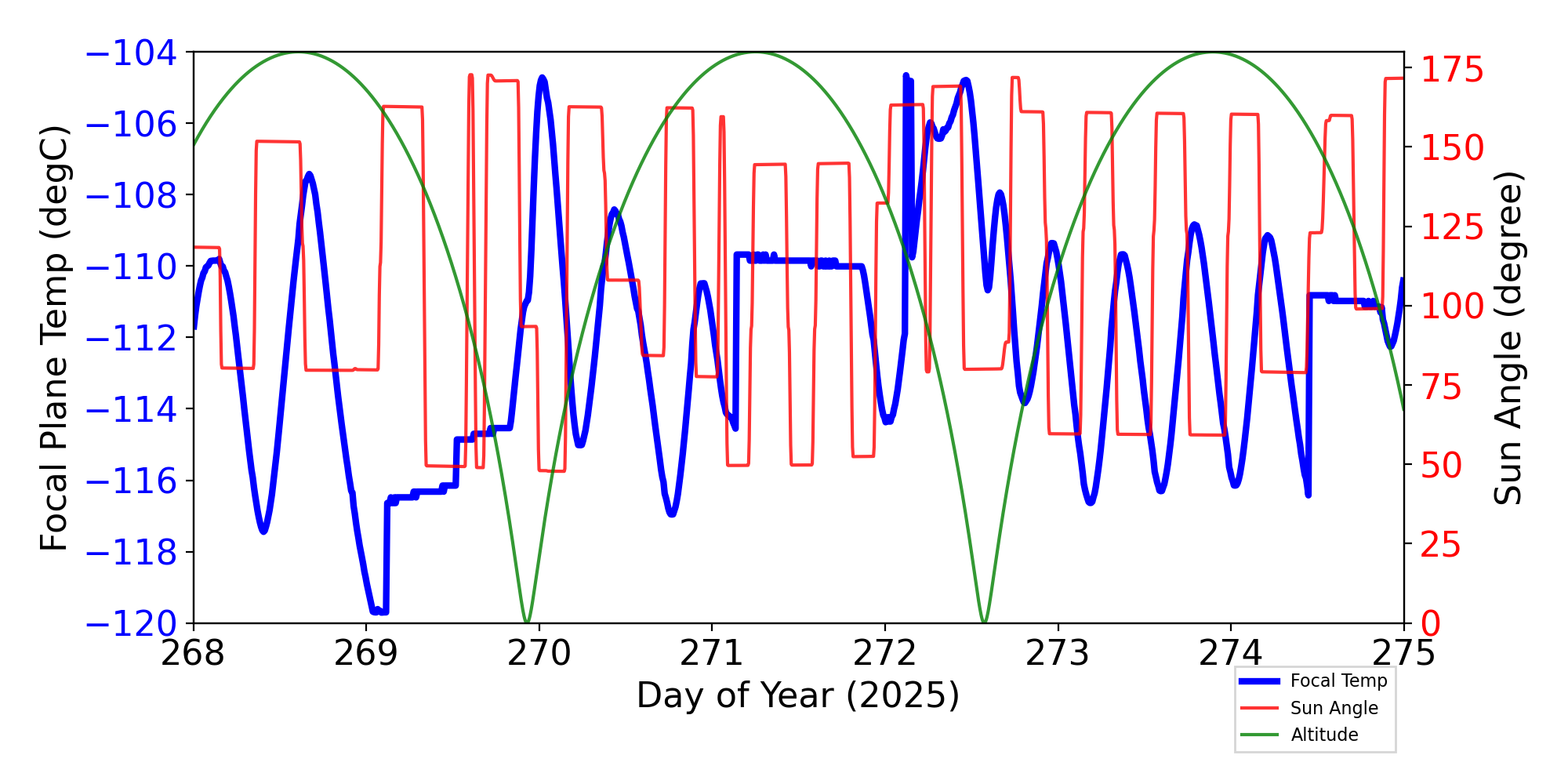

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

12 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 09/26/25 09/27/25 09/28/25 09/29/25 09/30/25 10/01/25 10/02/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AWD1TQI (-3.39)         (-3.35)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI (-3.43)         (-3.43)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV (0.00)             (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
IMHBLV   (0.00)           (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 313.38 309.03       308.56 311.99 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 304.34           303.52 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG 309.97 305.90   304.64 303.33 305.80   (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.66 4.83 4.30 4.81 4.54 4.91 4.74 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 308.99             (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCM_TX1             (268.43) (283.15)
348.15		 (269.15)
404.15		 KTRANSPONDER-1 EXT BPL TEMP
TFTERANGE 46.58 47.45 47.34 45.96 45.45 48.18 49.08 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3         (268.06) (268.43) (267.70) (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP
img_fit_chisq           6060.12   (0.0)
5.0		 (0.0)
20.0		 Image fit chi^2 worst case


IRUs

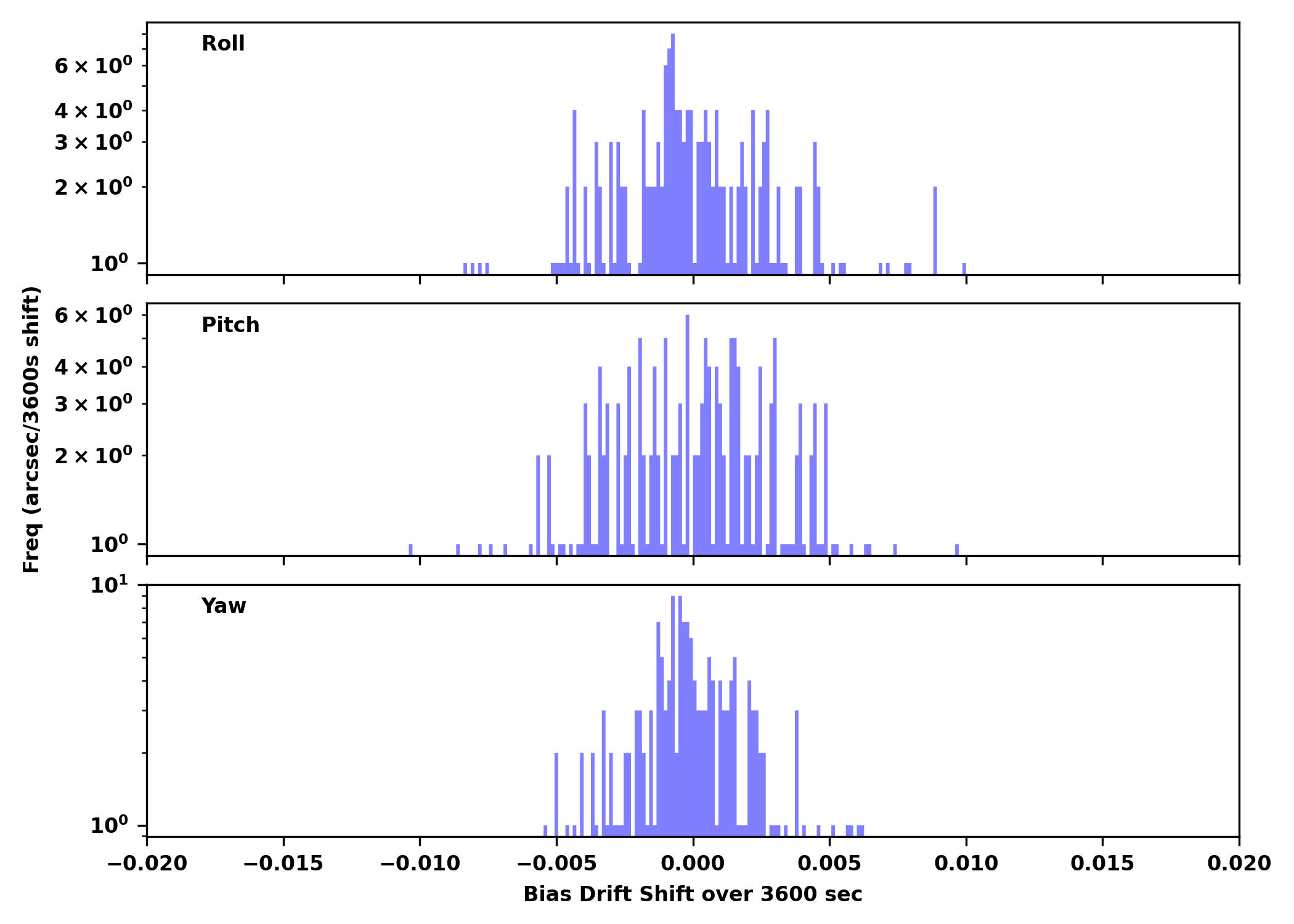

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
31893 HRC-I HETG 4U 1626-67 OK/NA OK
30489 ACIS-0123 NONE PSZ2G085.23+39.42 OK OK
31129 ACIS-67 NONE SN 2003gk OK OK
31888 ACIS-67 NONE 2RXS J152902.6-061250 OK OK
31885 ACIS-67 NONE PKS1737-60 OK OK
30484 HRC-I NONE SN 2017eaw OK OK
30185 ACIS-012367 NONE WLM OK OK
31886 ACIS-67 NONE PDS_456_s2 OK OK
31891 ACIS-012367 NONE WLM OK OK
30564 ACIS-0123 NONE A1550 OK OK
31894 ACIS-0123 NONE A1550 OK OK
28589 ACIS-0123 NONE Abell 370 OK OK
31889 ACIS-0123 NONE Abell 370 OK OK
29108 ACIS-67 NONE WISEA J232742.89+483516.8 OK OK
31887 ACIS-0123 NONE RMJ103652.7+445235.0 OK OK
31898 ACIS-67 NONE SDSSJ011132.32+133519.1 OK OK
29859 ACIS-0123 NONE WLM OK OK
31904 ACIS-012367 NONE WLM OK OK
29746 ACIS-67 NONE AT2025ulz OK OK
31902 ACIS-3678 NONE AT2025ulz OK OK
31905 ACIS-012367 NONE WLM OK OK
31903 ACIS-3678 NONE AT2025ulz OK OK
31906 ACIS-012367 NONE WLM OK OK
30542 ACIS-0123 NONE CMZ Molecular Cloud OK OK
29603 ACIS-67 NONE Cas A OK OK
29599 ACIS-01 NONE Cas A OK OK
31910 ACIS-0123 NONE WLM OK OK
30851 ACIS-0123 NONE II Zw 40 OK OK
29601 ACIS-23 NONE Cas A OK OK
29600 ACIS-01 NONE Cas A OK OK
29602 ACIS-67 NONE Cas A OK OK
30116 ACIS-5678 HETG SNR 1987A OK/NA OK

Trending

This week's focus is PCAD

Last reported on Jul 17.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
afsspc2von0.0056.728e-043.51 +/- 0.16(9.12+/-71.45)e-6VFSS POWER CONV 2 VOLTAGE
 off0.0015.434e-040.01 +/- 0.14(0.00+/-0.00)e0
airu2g1ion-0.4560.011(1.02+/-0.06)e2-0.06 +/- 0.03mAIRU-2 GYRO
 off-0.2420.0749.74 +/- 4.62-0.17 +/- 0.37
airu2g2ion0.1000.046(1.04+/-0.25)e20.19 +/- 0.07mAIRU-2 GYRO
 off-0.1960.0769.74 +/- 4.74-0.12 +/- 0.33
airu2g2ton-0.1540.011(3.41+/-0.06)e2(1.81+/-11.98)e-4KIRU-2 GYRO
 off0.0710.045(2.93+/-0.03)e2-0.03 +/- 0.02

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
aogyrct1 -0.1411.27015.99 +/- 877.92-25.37 +/- 13.22CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 1
aogyrct2 -0.9311.72318.46 +/- 1191.2916.09 +/- 20.94CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 2
aogyrct3 3.0893.800-24.63 +/- 2626.943.98 +/- 45.47CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 3
aogyrct4 -0.9681.478-38.94 +/- 1021.670.92 +/- 7.87CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 4
