MTA Monitoring Report 07/11/25 - 07/17/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (985,393) (910,239) (526,66) (99,899) (837,378) (803,225) (104,31) (178,149) (21,95) (811,637)
Flickering Warm Pixels (283,278) (171,937) (802,665) (427,125) (90,859) (665,25) (726,537) (394,80) (680,391) (617,159)   (369,376) (1000,214) (670,387) (849,169) (884,31) (335,412) (275,393)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           1022 512 510   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

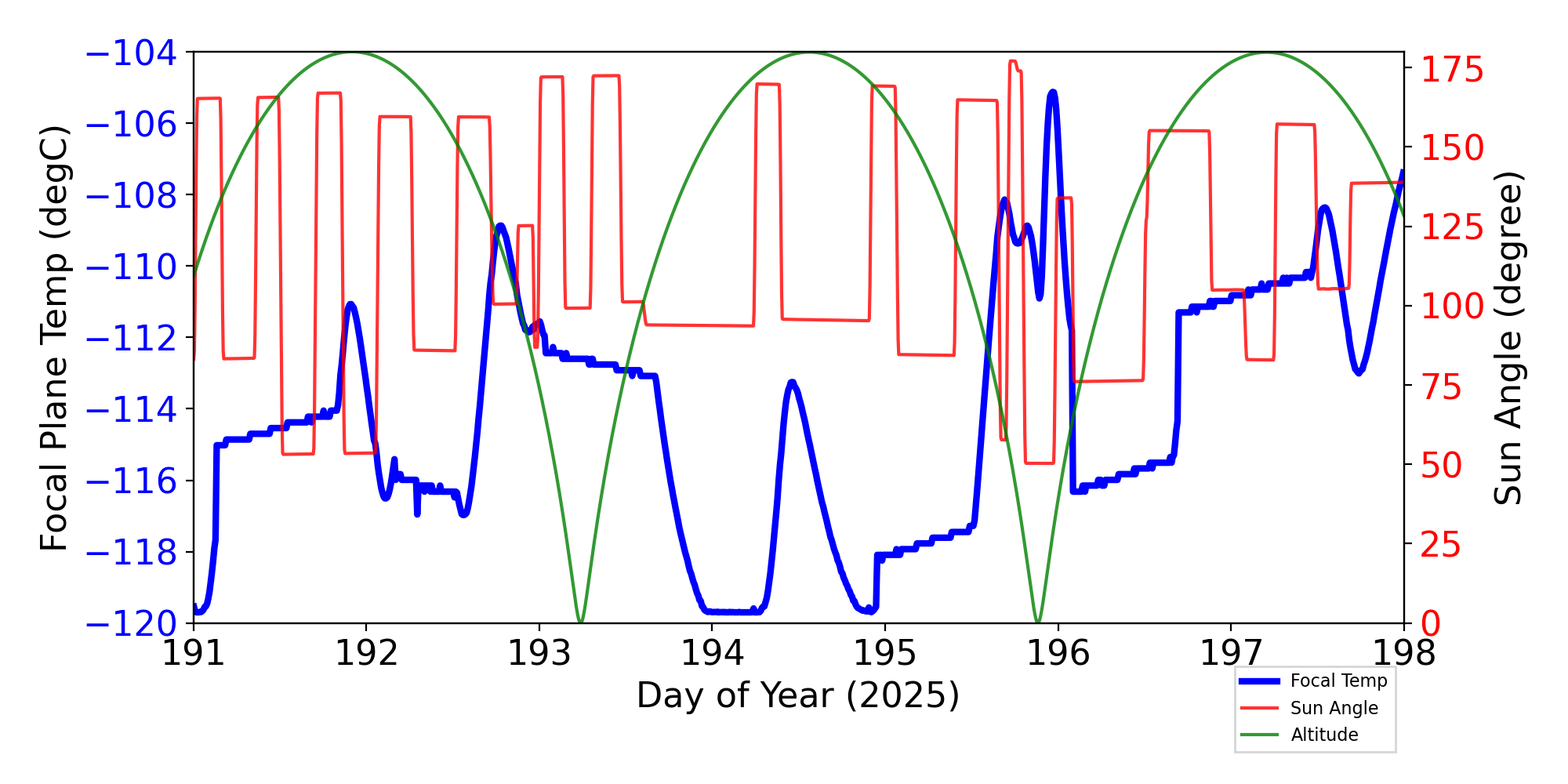

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

17 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 07/11/25 07/12/25 07/13/25 07/14/25 07/15/25 07/16/25 07/17/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AWD1TQI             (-3.39) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI             (-3.47) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV         (124.00)     (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
IMHBLV         (85.00)     (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 308.74 312.26 314.55 313.61 312.63 312.14 312.79 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 301.13 303.50   304.94 303.71 303.57 304.26 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBADIAGRAD 4.76 4.70 4.48 4.65 4.70 4.65 4.61 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE     310.41 309.31 308.29   308.50 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCM_TX1             (268.79) (283.15)
348.15		 (269.15)
404.15		 KTRANSPONDER-1 EXT BPL TEMP
TFTERANGE 47.96 48.15   47.59 47.39   48.37 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3 (268.79) (268.06) (268.06)     (268.79) (268.79) (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

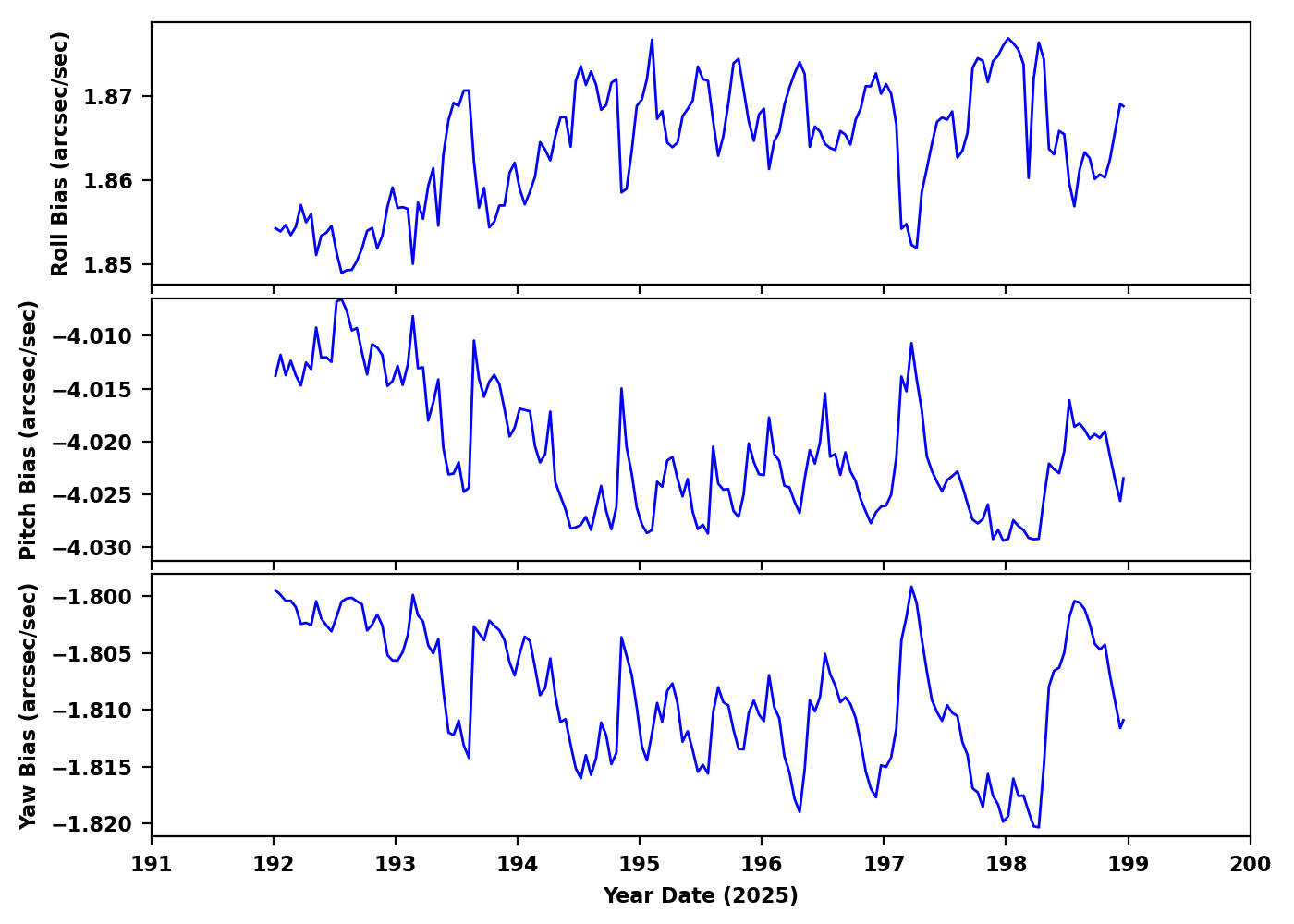

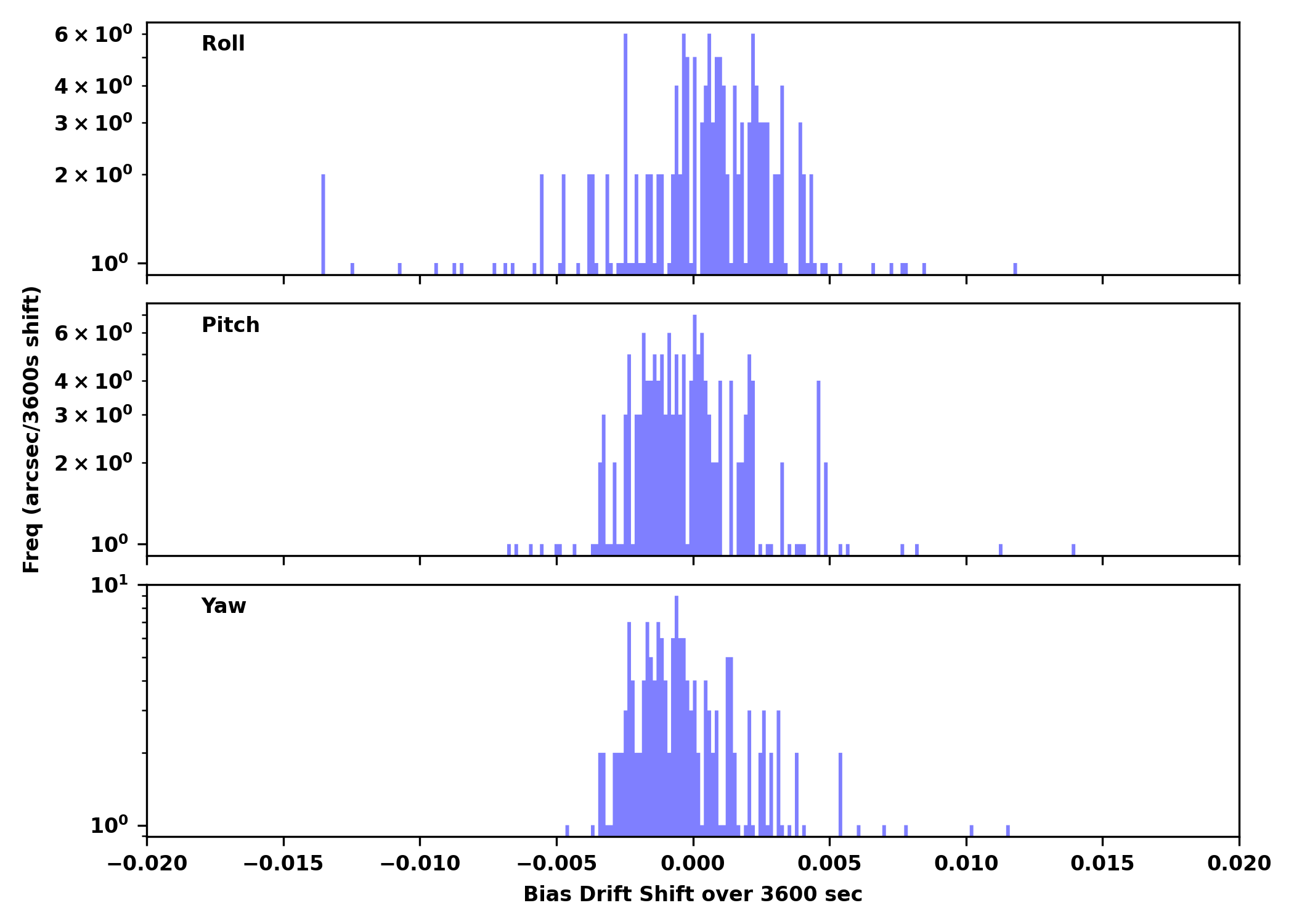

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
30987 ACIS-67 NONE NGC6814 OK OK
30995 ACIS-01236 NONE Perseus cluster OK OK
29621 ACIS-2567 NONE A1795 OK OK
29787 ACIS-5678 HETG XTE J1855-026 OK/NA OK
30562 ACIS-23678 NONE ACT-CL_J0034.4+0225 OK OK
30994 ACIS-5678 HETG XTE J1855-026 OK/NA OK
28327 ACIS-01236 NONE PSZ2G358.94-70.57 OK OK
30996 ACIS-2367 NONE ACT-CL_J0034.4+0225 OK OK
30989 ACIS-678 NONE GAIA DR2 4072362542662424960 OK OK
28000 ACIS-0123 NONE WR38a OK OK
28692 ACIS-0123 NONE RXCJ1314.4-2515 OK OK
30998 ACIS-678 NONE GAIA DR2 4072362542662424960 OK OK
30219 ACIS-0123 NONE BOSS1348 OK OK
30999 ACIS-56789 HETG GS 1826-238 OK/NA OK
28596 ACIS-0123 NONE Abell 370 OK OK
29565 HRC-I NONE ArLac OK OK
29564 HRC-I NONE ArLac OK OK
29566 HRC-I NONE ArLac OK OK
29563 HRC-I NONE ArLac OK OK
30052 ACIS-67 NONE PSR J1852+0040 CC OK
29568 HRC-I NONE ArLac OK OK
29567 HRC-I NONE ArLac OK OK
29569 HRC-I NONE ArLac OK OK
29570 HRC-I NONE ArLac OK OK
29571 HRC-I NONE ArLac OK OK
29572 HRC-I NONE ArLac OK OK
30217 ACIS-0123 NONE BOSS1348 OK OK
29577 HRC-I NONE ArLac OK OK
29573 HRC-I NONE ArLac OK OK
29575 HRC-I NONE ArLac OK OK
29576 HRC-I NONE ArLac OK OK
29578 HRC-I NONE ArLac OK OK
29579 HRC-I NONE ArLac OK OK
29579 HRC-I NONE ArLac OK OK
29582 HRC-I NONE ArLac OK OK
29580 HRC-I NONE ArLac OK OK
29839 ACIS-0123 NONE PSR J1813-1246 OK OK
29574 HRC-I NONE ArLac OK OK
29583 HRC-S NONE ArLac OK OK
30218 ACIS-0123 NONE BOSS1348 OK OK
28709 ACIS-0123 NONE 1E 2215.7-0404 / 1E 2216.0-0401 OK OK

Trending

This week's focus is PCAD

Last reported on May 01.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
afsspc2von0.0056.728e-043.51 +/- 0.16(9.12+/-71.45)e-6VFSS POWER CONV 2 VOLTAGE
 off0.0015.434e-040.01 +/- 0.14(0.00+/-0.00)e0
airu2g1ion-0.4560.011(1.02+/-0.06)e2-0.06 +/- 0.03mAIRU-2 GYRO
 off-0.2420.0749.74 +/- 4.62-0.17 +/- 0.37
airu2g2ion0.1000.046(1.04+/-0.25)e20.19 +/- 0.07mAIRU-2 GYRO
 off-0.1960.0769.74 +/- 4.74-0.12 +/- 0.33
airu2g2ton-0.1540.011(3.41+/-0.06)e2(1.81+/-11.98)e-4KIRU-2 GYRO
 off0.0710.045(2.93+/-0.03)e2-0.03 +/- 0.02

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
aogyrct1 -0.1411.27015.99 +/- 877.92-25.37 +/- 13.22CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 1
aogyrct2 -0.9311.72318.46 +/- 1191.2916.09 +/- 20.94CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 2
aogyrct3 3.0893.800-24.63 +/- 2626.943.98 +/- 45.47CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 3
aogyrct4 -0.9681.478-38.94 +/- 1021.670.92 +/- 7.87CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 4

If you have any questions, please contact: swolk@head.cfa.harvard.edu
