MTA Monitoring Report 09/12/25 - 09/18/25

Archive of all weekly reports
Archive of monthly reports


Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels   (985,393) (802,665) (910,239) (99,899) (726,537) (837,378) (803,225) (526,66) (178,149) (21,95)     (849,169) (670,387)   (275,393)
Flickering Warm Pixels (786,117) (427,125) (104,31) (811,637)   (728,340) (369,376) (282,385) (357,303) (161,206) (669,577) (233,102) (554,484) (233,227) (263,317) (884,31) (1000,214) (335,412) (74,134) (136,65) (332,324) (447,769) (597,187) (333,466) (675,304) (893,490) (838,239) (666,165) (139,109) (182,474)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           1022 512 510   1022 512
Flickering Warm column candidates                   503

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

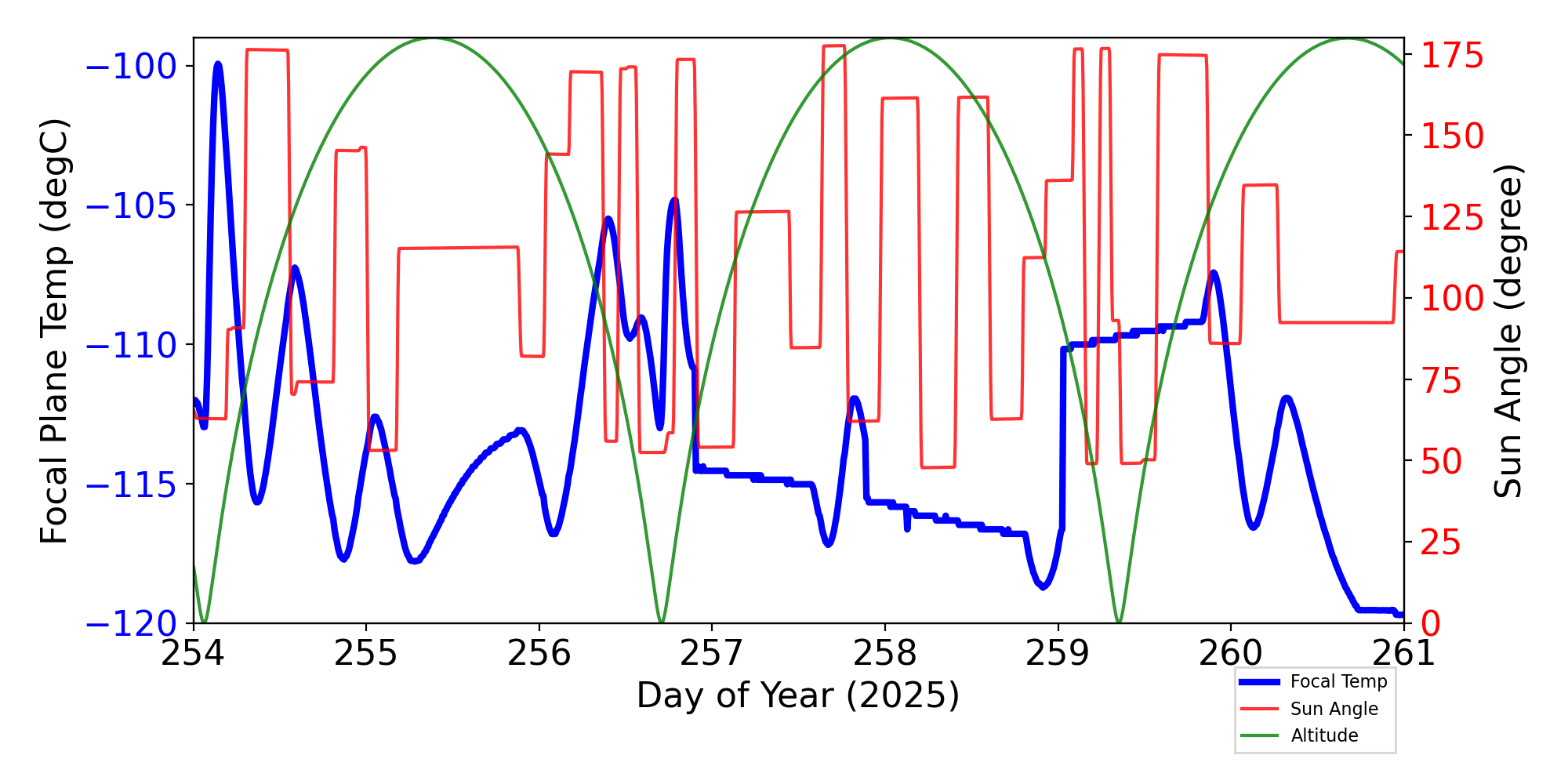

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

15 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 09/12/25 09/13/25 09/14/25 09/15/25 09/16/25 09/17/25 09/18/25 yellow limits
(lower)
upper
red limits
(lower)
upper
Units Description
AWD1TQI   (-3.35)         (-3.39) (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 1 TORQUE CURRENT
AWD4TQI           (-3.39)   (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 4 TORQUE CURRENT
AWD6TQI           (-3.43) (-3.43) (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 6 TORQUE CURRENT
CALPALV   131.00           (126.0)
128.0
(125.0)
129.0
VCal Pulser Amplitude
CTXBPWR (0.00) (0.00)   (0.00) (0.00) (0.00) (0.00) (36.12)
37.0
(36.0)
38.0
DBMTRANSMITTER B OUTPUT POWER
IMHBLV         (79.00)     (126.0)
128.0
(125.0)
129.0
(2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 313.11 313.46 310.55     313.17 313.04 (260.2)
303.0
(250.2)
308.0
CONE-Z SIDE OBA CONE
OBAAVG 304.33 304.69 302.17     304.40 304.75 (282.5)
300.0
(281.4)
301.0
KOBA/TFTE TEMP
OBACONEAVG       304.10 303.80 310.15   (282.5)
300.0
(281.8)
301.0
KOBA CONE AVG TEMP
OBADIAGRAD 4.42 4.46 4.64 4.50 5.00 4.99 4.58 (-1.11)
3.5
(-2.78)
3.9
KOBA DIAM GRAD
PZOBACONE 308.69 309.22       309.06 309.43 (260.2)
303.0
(250.2)
308.0
CONE+Z SIDE OBA CONE
SPHBLV     (70.00)         (79.0)
128.0
(78.0)
129.0
(2SPHBLV)Spect Bot & Top MCP HV Monitor
SPHVLV     (70.00)         (72.0)
128.0
(71.0)
129.0
(2SPHVLV)Spect Bot MCP HV Monitor
TFTERANGE 49.62 48.85 47.94 47.30 47.59 48.79 48.99 (16.7)
37.5
(11.1)
45.0
KTFTE VENT/RAD TEMP
TSCTSF3 (268.79) (268.79)   (268.43) (268.43) (268.43) (268.43) (278.15)
359.15
(269.15)
483.15
KSC-TS FITTING -3 TEMP


IRUs

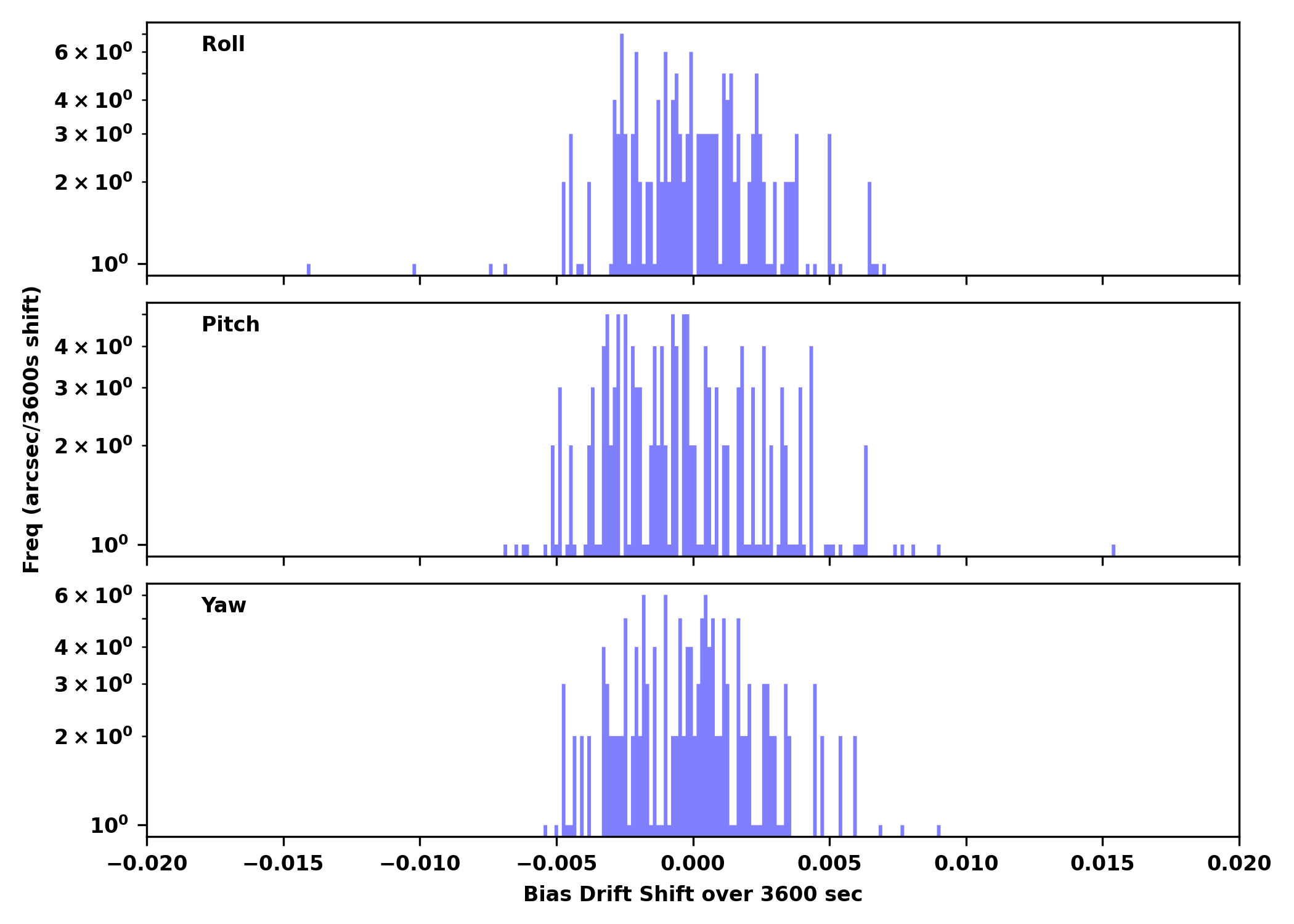

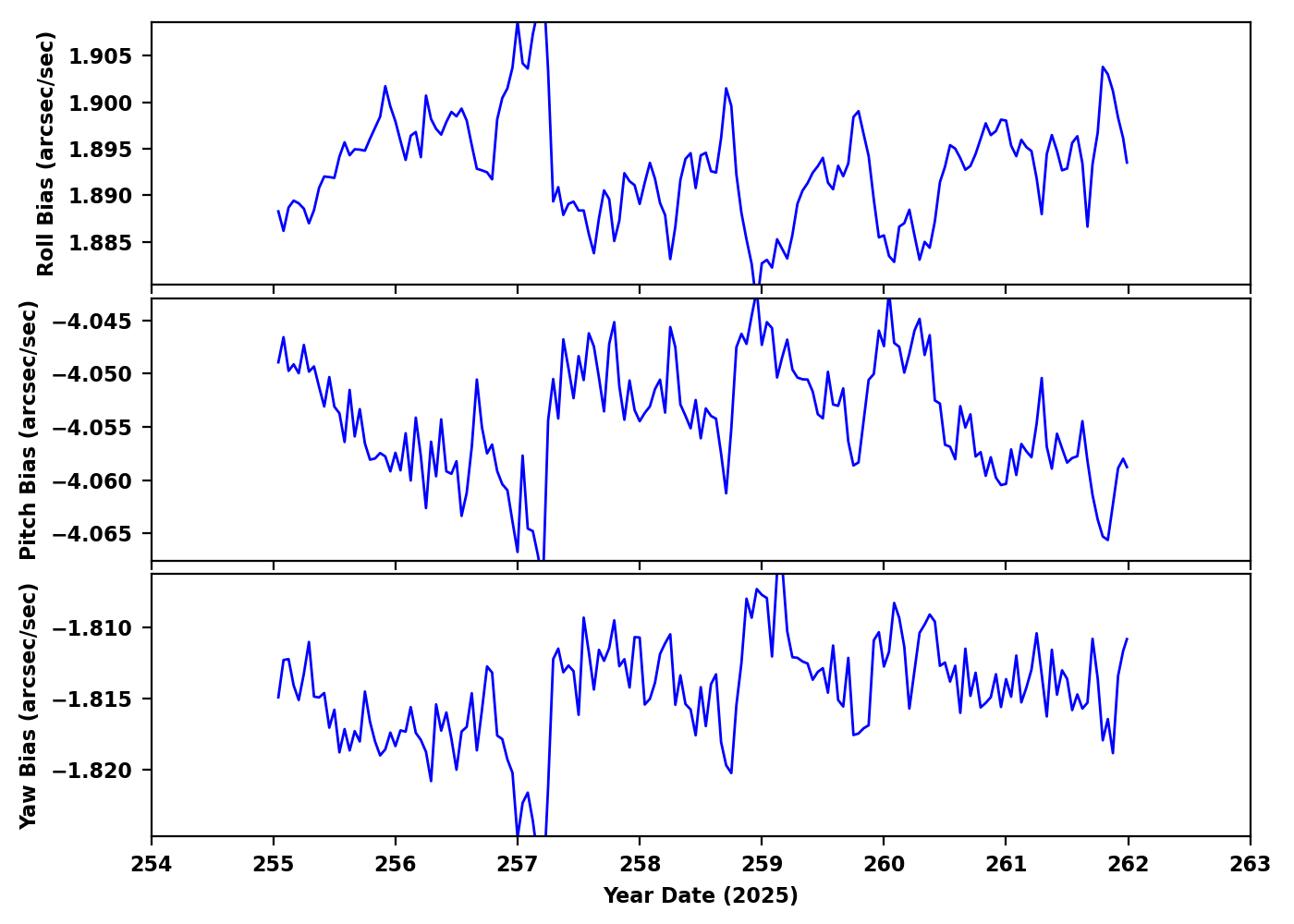

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
29679 HRC-I NONE WASP-69 OK OK
29935 ACIS-67 NONE SDSS J161517.25+305832.9 OK OK
30151 ACIS-3678 NONE NGC2566 OK OK
31860 ACIS-0123 NONE HEP G330.811-00.347 OK OK
28543 ACIS-2367 NONE NGC1385 OK OK
31858 ACIS-67 NONE SDSSJ224655.57-084258.1 OK OK
31861 HRC-I NONE WASP-69 OK OK
31865 ACIS-3678 NONE NGC2566 OK OK
28170 ACIS-67 NONE WISE J025942.86-163542.9 OK OK
31859 ACIS-0123 NONE RMJ233641.3-012723.7 OK OK
29987 ACIS-67 HETG NGC 2110 OK/NA OK
28686 ACIS-0123 NONE A85 North OK OK
29673 HRC-S NONE Jupiter OK OK
29875 ACIS-2567 NONE SDSS J082730.64+192159.9 OK OK
29674 HRC-S NONE Jupiter OK OK
31872 ACIS-0123 NONE A85 North OK OK
29626 ACIS-01 NONE Perseus Cluster OK OK
28770 ACIS-5678 HETG M33 X-8 OK/NA OK
29960 ACIS-67 NONE 6dFGS gJ231719.6-043739 OK OK
30531 HRC-I HETG 4U 1626-67 OK/NA OK
28625 ACIS-0123 NONE Abell 370 OK OK
29627 ACIS-01 NONE Perseus Cluster OK OK
29803 ACIS-456789 HETG SNR 1987A OK/NA OK
31869 ACIS-67 NONE SDSSJ000557.23+002837.7 OK OK
29812 HRC-I NONE SGR 0501 OK OK
30595 ACIS-5678 HETG M33 X-8 OK/NA OK

Trending

This week's focus is EPHIN

Last reported on Jul 03.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
5eiot 0.1730.026(3.37+/-0.18)e20.21 +/- 0.39KEIO TEMP
5ephint 2.2530.011(3.19+/-0.18)e2-0.05 +/- 0.17KEPHIN TEMP
teio 1.5060.021(3.16+/-0.18)e2-0.20 +/- 0.41KEPHIN ELECTRONICS HOUSING TEMP
tephin 2.2480.011(3.19+/-0.18)e2-0.10 +/- 0.17KEPHIN SENSOR HOUSING TEMP
