MTA Monitoring Report 06/27/25 - 07/03/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (985,393) (910,239) (803,225) (178,149) (526,66) (837,378) (21,95) (811,637)       (335,412)
Flickering Warm Pixels (283,278) (802,665) (90,859) (665,25) (99,899) (104,31) (726,537) (318,53) (394,80) (617,159)   (233,227) (357,303) (669,577) (263,317) (369,376) (884,31) (670,387) (849,169) (1000,214) (126,856) (597,187) (275,393) (136,65) (675,304) (139,109)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           510 512 1022   512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

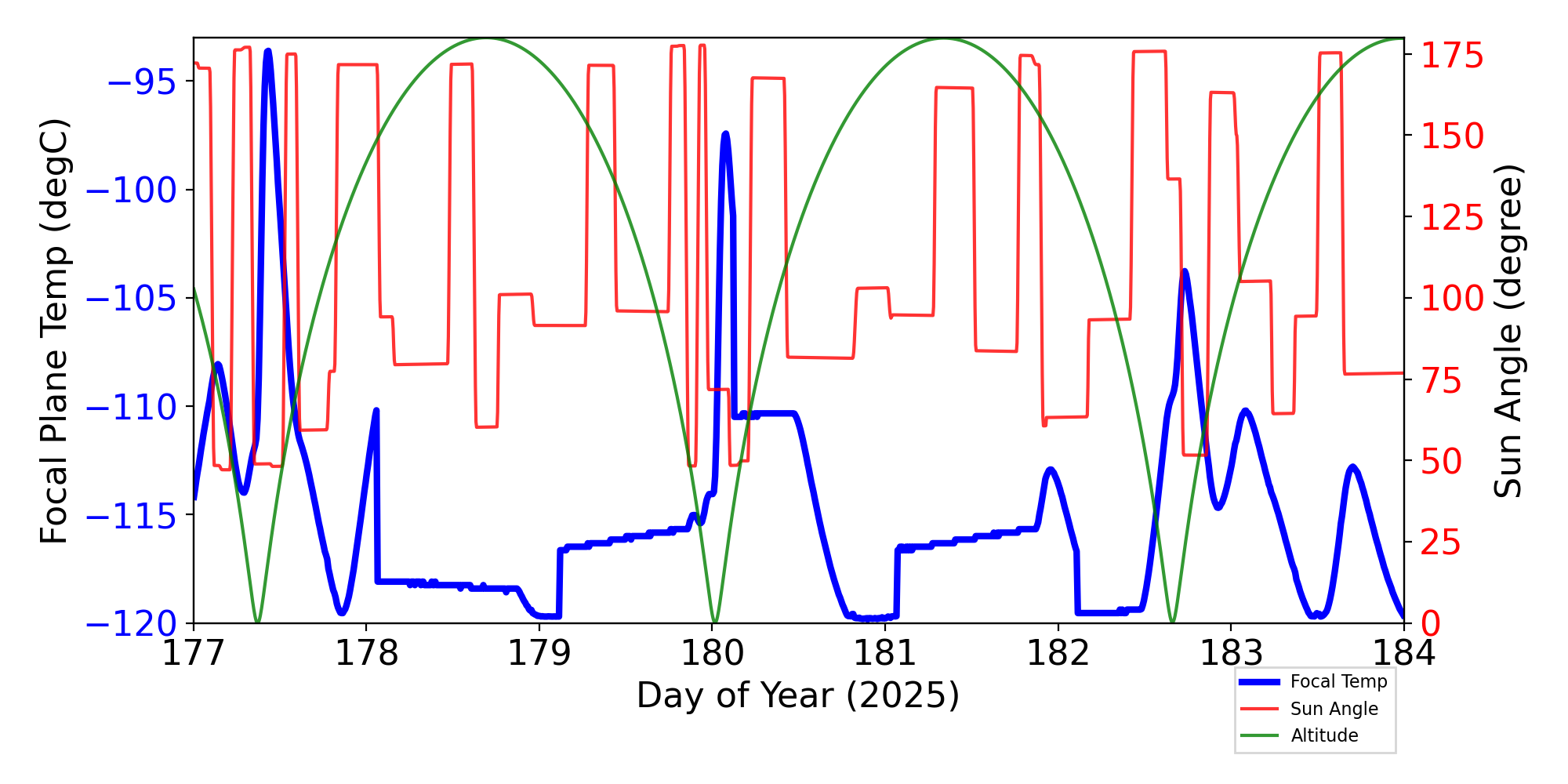

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

12 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 06/27/25 06/28/25 06/29/25 06/30/25 07/01/25 07/02/25 07/03/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AFTBLKHDT       308.04       (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI   (-3.43)           (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI   (-3.39)     (-3.39)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV           (119.00)   (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR (0.00) (0.00) (0.00) (0.00)   (0.00)   (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
IMHBLV (79.00)             (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
IMHVLV     (79.00)         (126.0)
128.0		 (125.0)
129.0		 (2IMHVLV)Imaging Bot MCP HV Monitor
MZOBACONE 309.63 312.27 312.42 314.27 312.75 310.89 314.00 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 301.14 303.49 303.59 305.43 304.02 302.48   (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG 306.34             (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.85 4.72 4.83 4.73 4.74 4.81 4.70 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE   308.01 308.01 310.08 308.51   309.93 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TFTERANGE 47.30 48.01 48.11 49.26 47.55 47.35   (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3 (268.06) (268.06) (268.79) (268.43)   (268.79)   (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

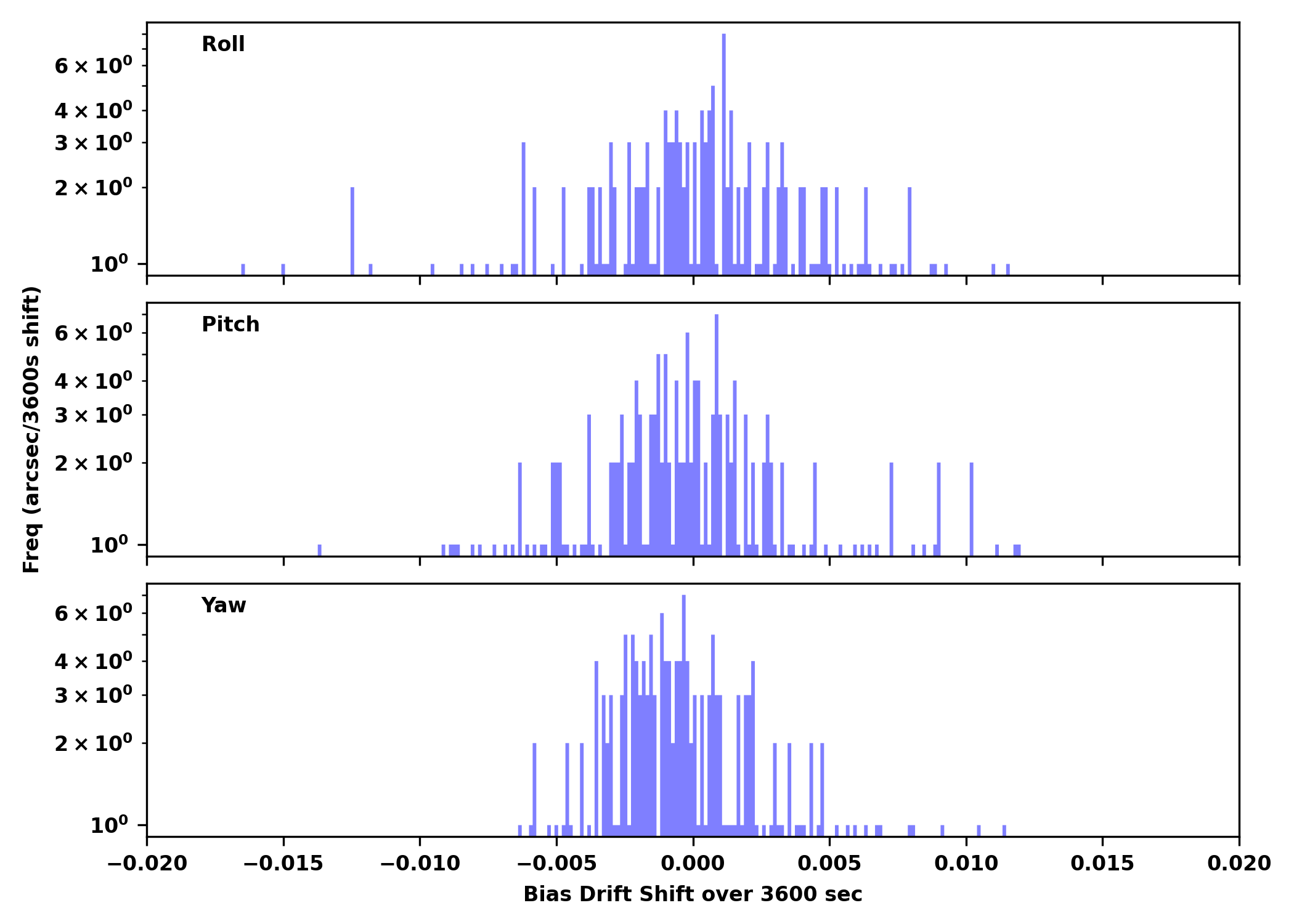

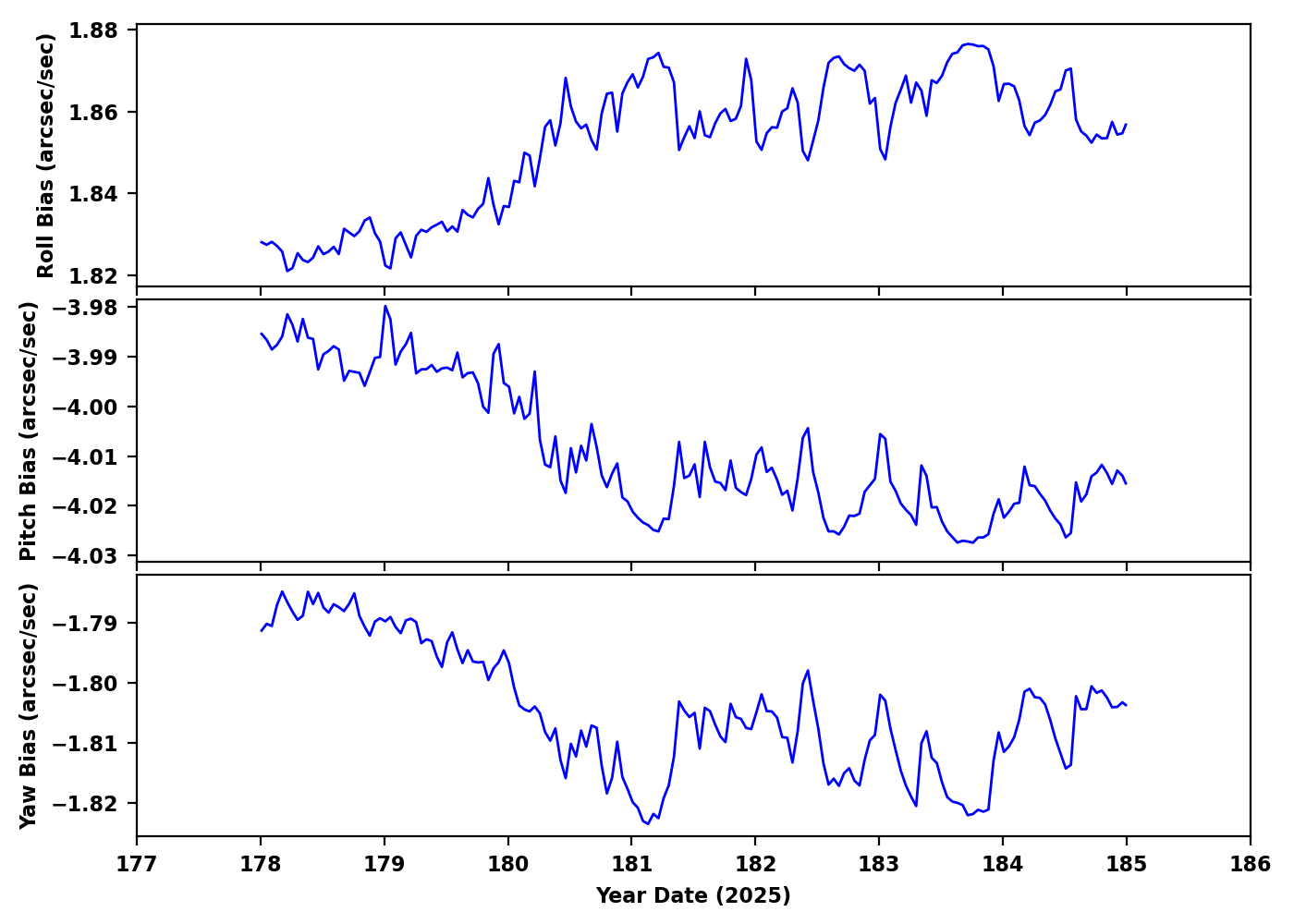

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
29591 ACIS-67 NONE Cas A OK OK
28632 ACIS-0123 NONE Abell 370 OK OK
29562 HRC-I NONE ArLac OK OK
28513 ACIS-67 NONE SNR G15.9+0.2 OK OK
30971 ACIS-0123 NONE HEP G015.284-10.582 OK OK
30973 ACIS-0123 NONE Abell 370 OK OK
28113 ACIS-0123 NONE UGC695 OK OK
28744 HRC-I NONE G29-38 OK OK
30972 ACIS-67 NONE SNR G15.9+0.2 OK OK
30434 ACIS-0123 NONE Abell 2255 OK OK
29618 ACIS-01236 NONE A1795 OK OK
30974 ACIS-0123 NONE [JDW2009] G359.55+0.16 OK OK
28748 HRC-I NONE G29-38 OK OK
30167 ACIS-3678 NONE NGC4298 OK OK
29622 ACIS-23567 NONE A1795 OK OK
28137 ACIS-67 NONE IGR J18149-2247 OK OK
29893 ACIS-67 NONE NGVS J123020.05+115518.7 OK OK
30140 ACIS-367 NONE Kepler's SNR OK OK
28688 ACIS-0123 NONE A85 North OK OK
28845 ACIS-0123 NONE Abell 370 OK OK
30986 ACIS-67 NONE Kepler's SNR OK OK
30983 ACIS-0123 NONE Abell 370 OK OK
28745 HRC-I NONE G29-38 OK OK
30979 ACIS-0123 NONE HEP G016.392-09.915 OK OK
30981 ACIS-0123 NONE A85 North OK OK
28173 ACIS-01237 NONE SDSS J0100+2802 OK OK
28693 ACIS-0123 NONE RXCJ1314.4-2515 OK OK
28726 ACIS-0123 NONE [JDW2009] G359.55+0.16 OK OK
30980 ACIS-01237 NONE SDSS J0100+2802 OK OK
30978 ACIS-67 NONE NGC_6814_s4 OK OK

Trending

This week's focus is EPHIN

Last reported on Apr 17.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
5eiot 0.1730.026(3.37+/-0.18)e20.21 +/- 0.39KEIO TEMP
5ephint 2.2530.011(3.19+/-0.18)e2-0.05 +/- 0.17KEPHIN TEMP
teio 1.5060.021(3.16+/-0.18)e2-0.20 +/- 0.41KEPHIN ELECTRONICS HOUSING TEMP
tephin 2.2480.011(3.19+/-0.18)e2-0.10 +/- 0.17KEPHIN SENSOR HOUSING TEMP
