Most recent ACE observations
Differential Flux particles/cm2-s-ster-MeV
UT Date Time --- Electron keV --- ---------------------------------- Protons keV -------------------------------
DE1 DE4 P2 P3 P3ScaledP5 P3scaledP6 P5 FP6p P7
YR MO DA HHMM 38-53 175-315 47-68 115-195 112-187* 112-187** 310-580 761-1220 1060-1910
2025 08 05 1315 1550.000 13.000 3150.000 9.520 8.610 4.896 1.230 0.136 0.035
2025 08 05 1320 1250.000 10.200 2990.000 10.400 6.377 8.316 0.911 0.231 0.076
2025 08 05 1325 1150.000 9.860 3010.000 7.890 5.614 6.408 0.802 0.178 0.078
2025 08 05 1330 1210.000 7.010 2900.000 8.280 8.120 10.800 1.160 0.300 0.013
2025 08 05 1335 1550.000 12.800 3100.000 10.300 6.398 16.236 0.914 0.451 0.089
2025 08 05 1340 1400.000 9.610 3130.000 9.150 5.551 12.420 0.793 0.345 0.109
2025 08 05 1345 1460.000 13.200 2890.000 7.170 9.450 6.264 1.350 0.174 0.122
2025 08 05 1350 1780.000 14.400 2970.000 7.830 6.867 9.288 0.981 0.258 0.074
2025 08 05 1355 1360.000 15.800 3030.000 8.360 5.922 9.216 0.846 0.256 0.106
2025 08 05 1400 1220.000 10.200 2840.000 8.740 6.041 6.300 0.863 0.175 0.082
2025 08 05 1405 1460.000 10.900 3070.000 8.510 8.890 7.164 1.270 0.199 0.060
2025 08 05 1410 1290.000 10.700 3060.000 8.570 7.770 13.752 1.110 0.382 0.059
2025 08 05 1415 1250.000 9.020 2980.000 8.760 4.935 6.336 0.705 0.176 0.041
2025 08 05 1420 1260.000 11.100 2900.000 7.770 7.910 8.964 1.130 0.249 0.030
2025 08 05 1425 1590.000 11.100 3090.000 8.180 5.852 6.336 0.836 0.176 0.051
2025 08 05 1430 1050.000 9.830 2940.000 5.960 4.466 7.956 0.638 0.221 0.079
2025 08 05 1435 1120.000 11.300 2790.000 8.140 5.733 11.988 0.819 0.333 0.051
2025 08 05 1440 1550.000 9.720 2830.000 7.700 6.020 6.408 0.860 0.178 0.055
2025 08 05 1445 1270.000 11.300 2860.000 8.880 6.020 12.384 0.860 0.344 0.085
2025 08 05 1450 1310.000 8.760 2890.000 7.880 5.866 6.480 0.838 0.180 0.056
2025 08 05 1455 1460.000 11.500 2660.000 7.820 7.910 9.936 1.130 0.276 0.069
2025 08 05 1500 1650.000 12.400 2970.000 10.000 7.490 14.940 1.070 0.415 0.063
2025 08 05 1505 1490.000 12.300 2920.000 8.970 6.776 10.512 0.968 0.292 0.066
2025 08 05 1510 1250.000 10.100 2620.000 8.990 8.050 9.324 1.150 0.259 0.079
2025 08 05 1515 1740.000 11.800 2980.000 9.550 5.887 5.400 0.841 0.150 0.097

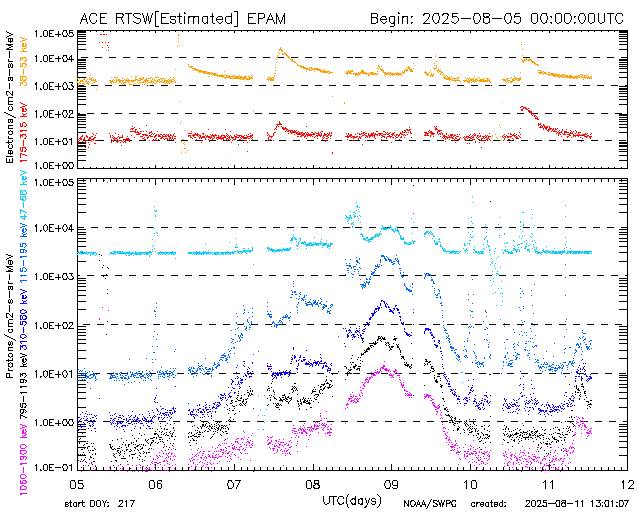

2 hour Real-time Differential Electron and Proton Flux
--- Electron keV --- ----------------------------------- Protons keV ---------------------------------
DE1 DE4 P2 P3 P3ScaledP5 P3scaledP6 P5 FP6p P7
38-53 175-315 47-68 115-195 112-187* 112-187** 310-580 761-1220 1060-1910
AVERAGE 1386.800 11.116 2942.800 8.533 6.741 9.121 0.963 0.253 0.069
MINIMUM 1050.000 7.010 2620.000 2620.000 4.466 4.896 0.638 0.136 0.013
FLUENCE 9.9850e+06 8.0038e+04 2.1188e+07 6.1436e+04 4.8535e+04 6.5671e+04 6.9336e+03 1.8242e+03 4.9668e+02
SPECTRA p3/p5 8.861 p3/p6 33.679 p5/p6 3.801 p6/p7 3.673

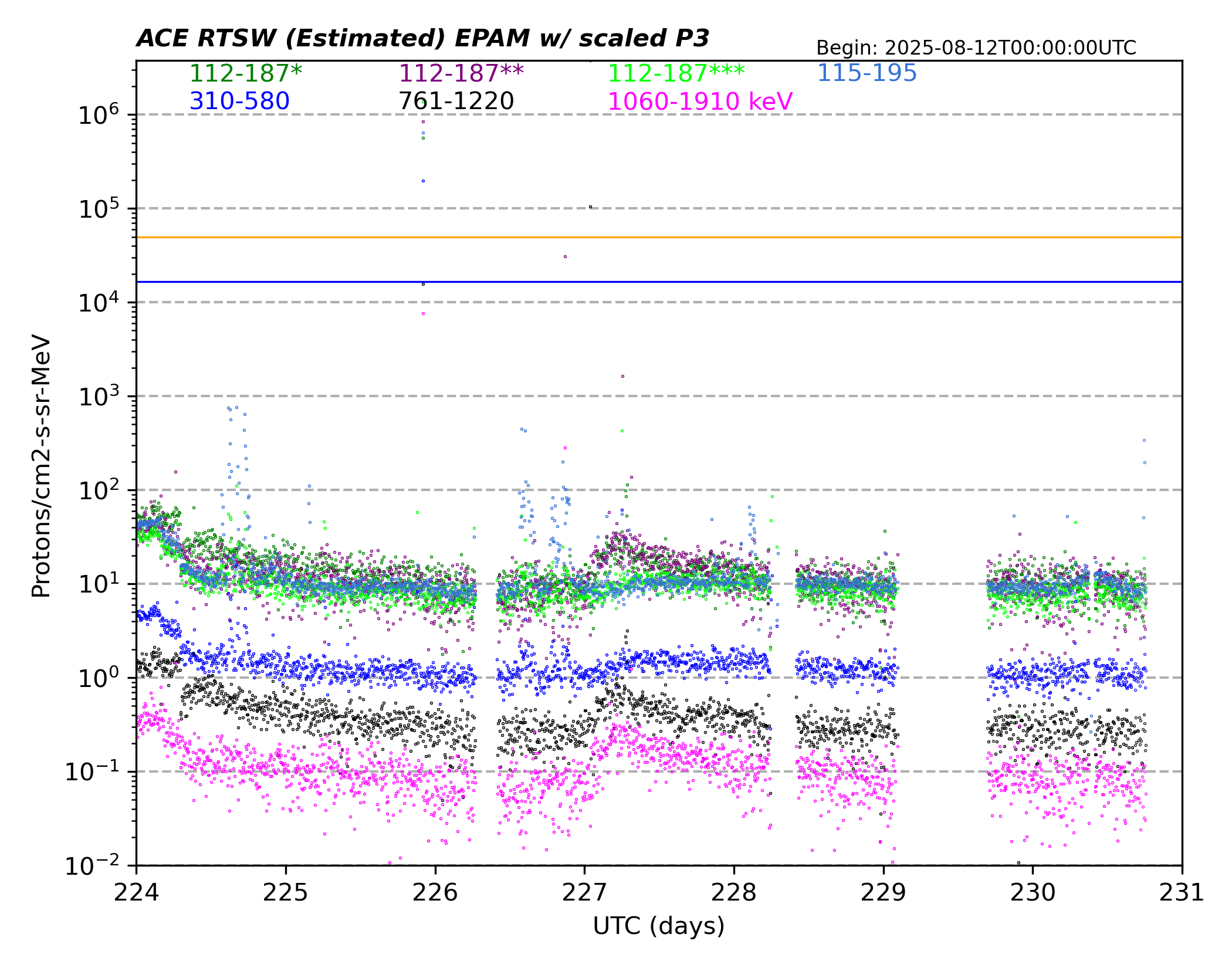

* This P3 channel is currently scaled from P5 data. P3* = P5 X 7.0
** This P3 channel is currently scaled from P6 data. P3** = P6 X 36.0
*** This P3 channel (not shown) is currently scaled from P7 data. P3*** = P7 X 110.0
|
|
