MTA Monitoring Report 09/25/26 - 10/01/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels   (795,114)   (882,129)
Current Warm Pixels (786,117) (427,125) (910,239) (837,378) (526,66) (803,225) (178,149) (104,31) (99,899) (21,95)       (335,412)
Flickering Warm Pixels (283,278) (171,937) (802,665) (665,25) (726,537) (931,553) (680,391) (394,80) (811,637)   (258,797) (357,303) (728,340) (161,206) (282,385) (233,102) (369,376) (263,317) (669,577) (367,511) (233,227) (670,387) (849,169) (884,31) (1000,214)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 1022 510   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

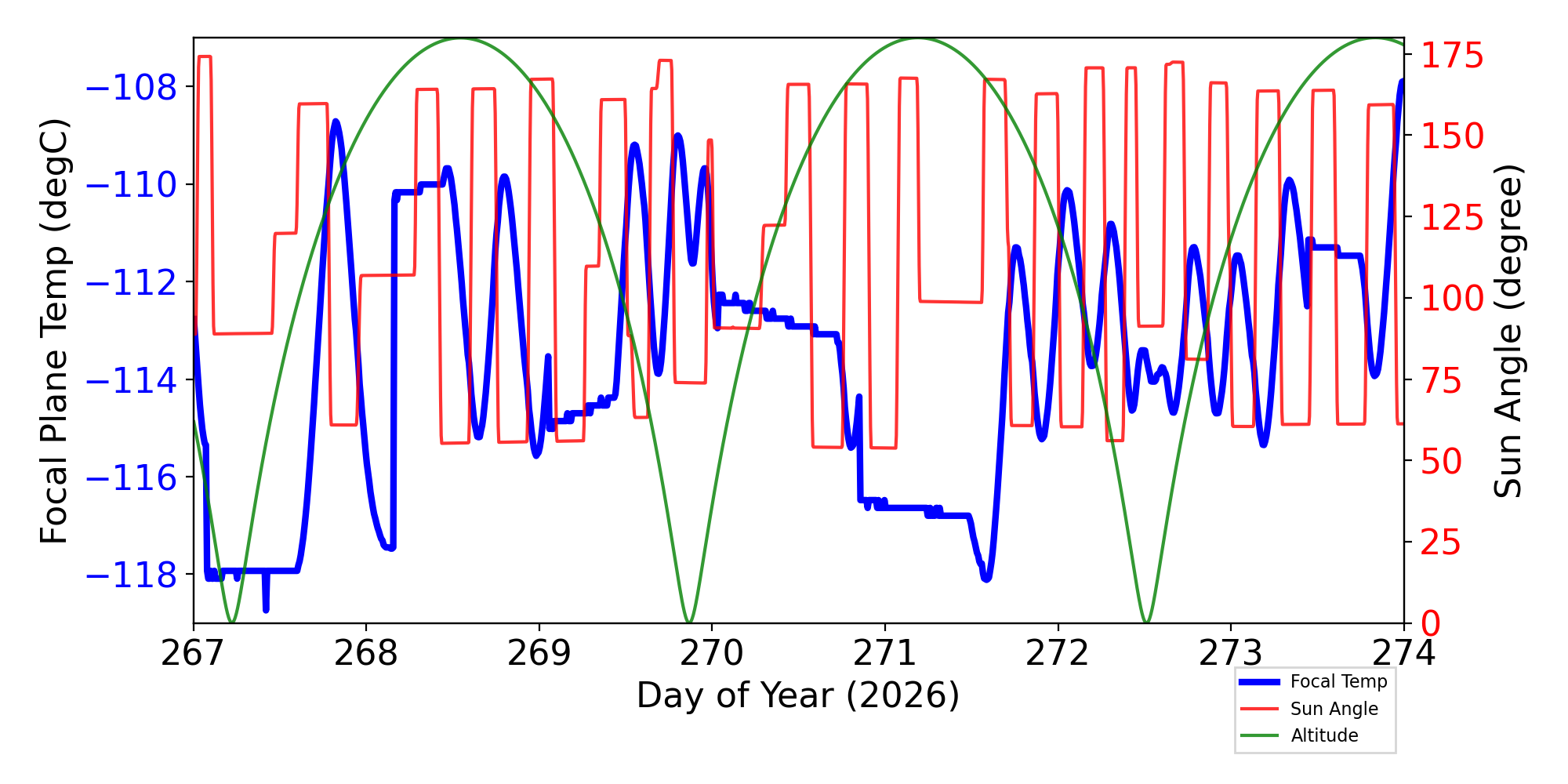

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

11 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 09/25/26 09/26/26 09/27/26 09/28/26 09/29/26 09/30/26 10/01/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
1CRBT 559.40 554.12 677.96 572.60 446.10 477.63 501.33 (136.15)
183.15		 (131.15)
193.15		 KCOLD RADIATOR TEMP. B
1CRBTC (89.55) (81.79) (81.79) (94.72) (94.72) (81.79) (81.79) (136.15)
183.15		 (131.15)
193.15		 CCOLD RADIATOR TEMP. B
AFTBLKHDT 308.24             (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI         (-3.39)   (-3.35) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD4TQI     (-3.43)         (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 4 TORQUE CURRENT
AWD6TQI     (-3.43)   (-3.43)   (-3.43) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV   (123.00)   (117.00)       (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR   (0.00) (0.00)   (0.00)   (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
IMHBLV       (79.00)       (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 314.56 309.25 313.32 312.36 309.47 308.57   (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 305.81 301.31 304.72 303.66 301.43     (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBADIAGRAD 4.42 4.71 4.62 4.74 4.78 4.67 4.64 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 310.63   309.46 308.23       (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCYZ_RW6 (275.34) (274.98)           (288.15)
363.15		 (278.15)
404.15		 KRWA -6 TEMP (RWA CRNR COMP)
TFTERANGE 47.41 46.06 48.29 47.76 45.92 45.53 45.49 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

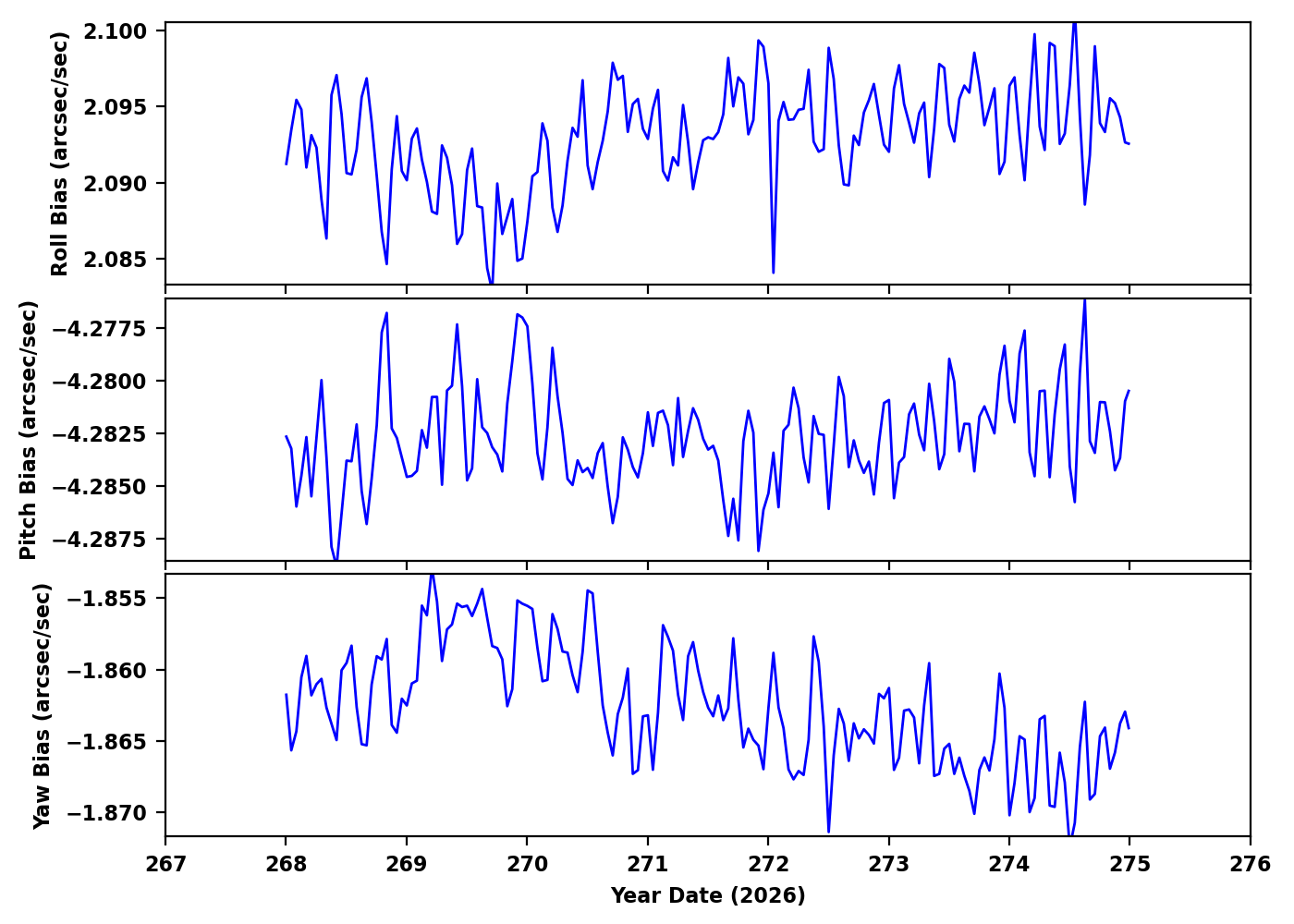

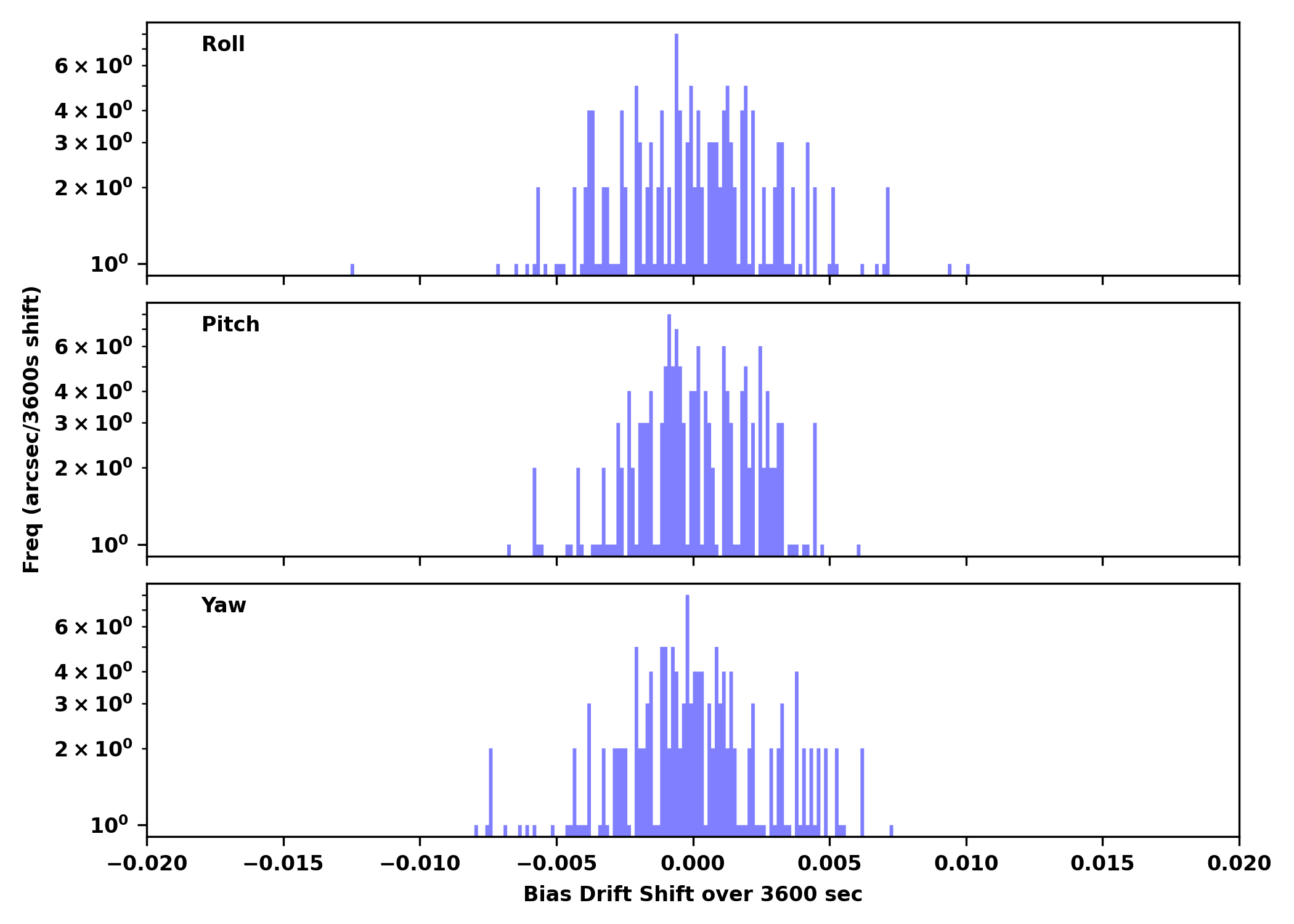

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
33441 HRC-I NONE msh 11-62 OK OK
33446 ACIS-567 NONE ACT-CL J0123.5-0428 OK OK
33439 ACIS-0123 NONE MACS J0018.5+1626 OK OK
30522 ACIS-0123 NONE 1RXS J021649.0+703552 OK OK
33442 ACIS-67 NONE SDSS J083721.87+192110.6 OK OK
33443 ACIS-67 NONE SDSS J083721.87+192110.6 OK OK
33440 ACIS-0123 NONE MACS J0018.5+1626 OK OK
31067 HRC-I NONE HD 30589 OK OK
33444 ACIS-67 NONE SDSS J083721.87+192110.6 OK OK
33434 ACIS-0123 NONE RMJ004525.1+100754.8 OK OK
33447 ACIS-23567 NONE ACT-CL J0123.5-0428 OK OK
31417 ACIS-67 NONE Perseus Cluster OK OK
33448 ACIS-2367 NONE V4641 Sgr S1 OK OK
33433 ACIS-67 NONE SDSSJ235651.40+151848.0 OK OK
30380 ACIS-01236 NONE Abell 2108 OK OK
28340 HRC-I NONE G29-38 OK OK
33435 ACIS-0123 NONE RMJ232434.6+080736.1 OK OK
33437 ACIS-01236 NONE Abell 2108 OK OK
33452 HRC-I NONE G29-38 OK OK
30053 ACIS-67 NONE PSR J1852+0040 CC OK
31738 ACIS-23567 NONE ACT-CL J0123.5-0428 OK OK
31547 ACIS-0123 NONE PSR J1101-6101 OK OK
30120 ACIS-0123 NONE PSR J1015-5719 OK OK
33453 HRC-I NONE G29-38 OK OK
31094 ACIS-3678 NONE NGC 6440 OK OK
33464 ACIS-23567 NONE ACT-CL J0123.5-0428 OK OK
33461 ACIS-0123 NONE PSR J1101-6101 OK OK
33465 ACIS-23567 NONE ACT-CL J0123.5-0428 OK OK
29743 ACIS-012367 NONE [MWE2019] 1-435 OK OK
31672 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
33455 ACIS-012367 NONE [MWE2019] 1-435 OK OK
33454 ACIS-012367 NONE [MWE2019] 1-435 OK OK
31681 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
31950 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
30096 ACIS-01236 NONE [MWE2019] 1-435 OK OK
33456 ACIS-01236 NONE [MWE2019] 1-435 OK OK

Trending

This week's focus is Ground Computations

Last reported on Jul 16.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1dppwra -0.4860.00533.35 +/- 6.010.06 +/- 0.12WDPA POWER A
1dppwrb -0.5370.00728.96 +/- 7.06-0.27 +/- 0.17WDPA POWER B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
flexadif 0.1170.00765.47 +/- 5.47-0.01 +/- 0.07KDIFF FLEX A & SET
flexbdif 0.2640.00661.84 +/- 4.94-0.03 +/- 0.08KDIFF FLEX B & SET
flexcdif 0.1650.01274.16 +/- 9.000.08 +/- 0.23KDIFF FLEX C & SET
