MTA Monitoring Report 06/19/26 - 06/25/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels		(266,210) (110,18)
Current Warm Pixels			(526,66) (178,149) (803,225) (99,899)	(21,95) (811,637)			(335,412)	(275,393)
Flickering Warm Pixels	(786,117) (154,9)	(427,125) (802,665) (910,239)	(726,537) (665,25)	(680,391)	(641,669) (357,303) (369,376) (233,227) (226,202) (263,317) (728,340) (258,797) (161,206) (233,102) (282,385) (877,408) (669,577) (367,511)	(849,169) (884,31) (360,249) (287,164) (670,387)		(597,187) (136,65) (541,41) (838,239) (295,978) (182,474) (447,769) (220,813)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					512 510 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
169.50	-107.40	0.97
172.11	-103.55	1.97
172.67	-112.92	0.48
173.65	-109.20	0.44
174.05	-108.48	0.40
174.43	-108.41	0.81

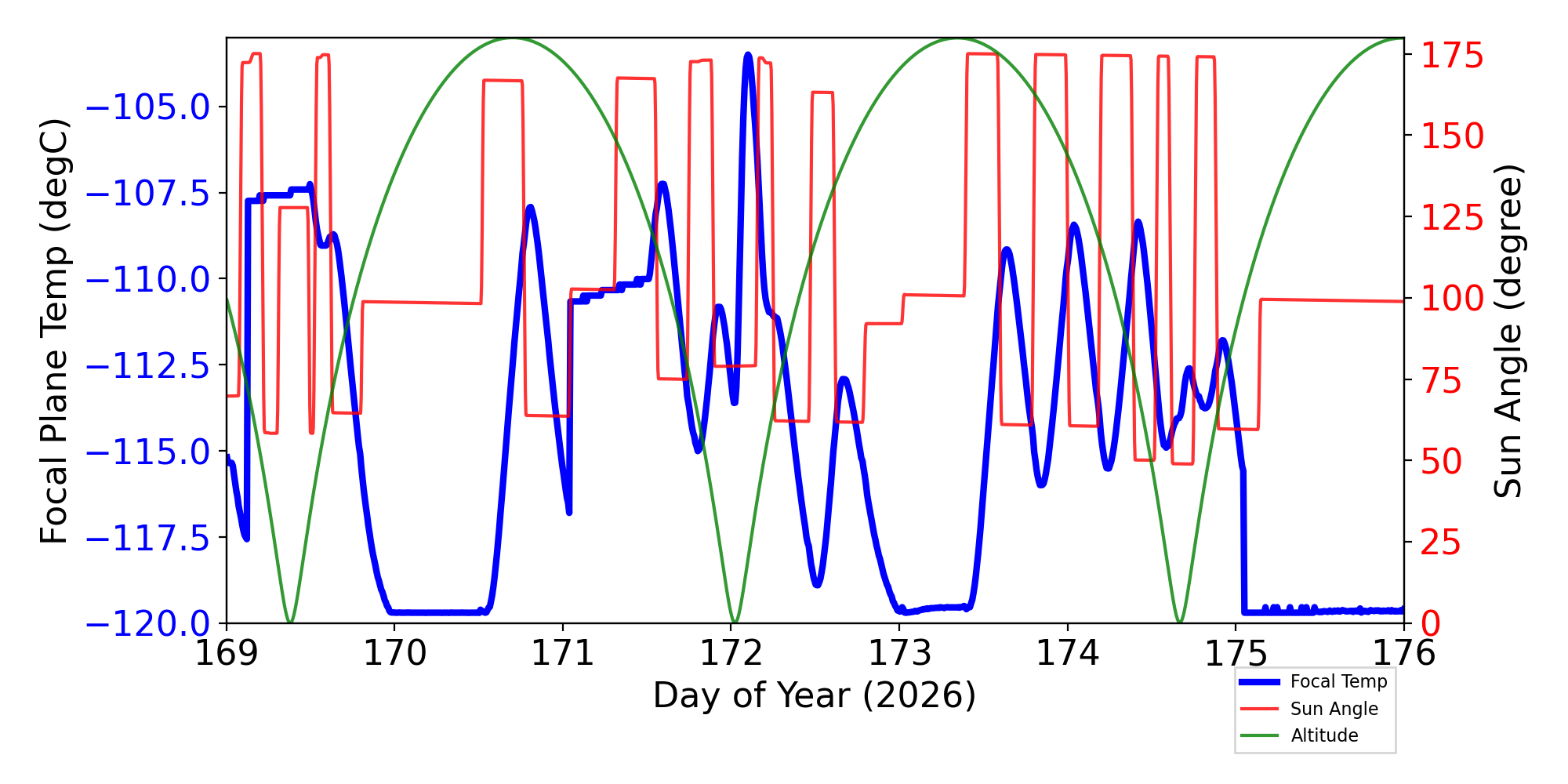

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

11 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	06/19/26	06/20/26	06/21/26	06/22/26	06/23/26	06/24/26	06/25/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT		677.96	677.96	677.96	677.96		677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC		(92.13)	(74.06)	(58.62)	(66.33)		(74.06)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT	308.79			308.67			309.71	(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI		(-3.35)						(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI		(-3.43)						(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)				(0.00)	(0.00)		(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE	315.12	313.27	311.58	314.56		314.21		(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	306.17	304.65	302.78	305.64		305.18		(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG				311.47	302.95	311.09		(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.62	4.73	4.75	4.55	4.52		4.27	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	311.10	309.26		310.49		309.97		(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE	48.86	48.19	47.25	47.63		48.23		(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

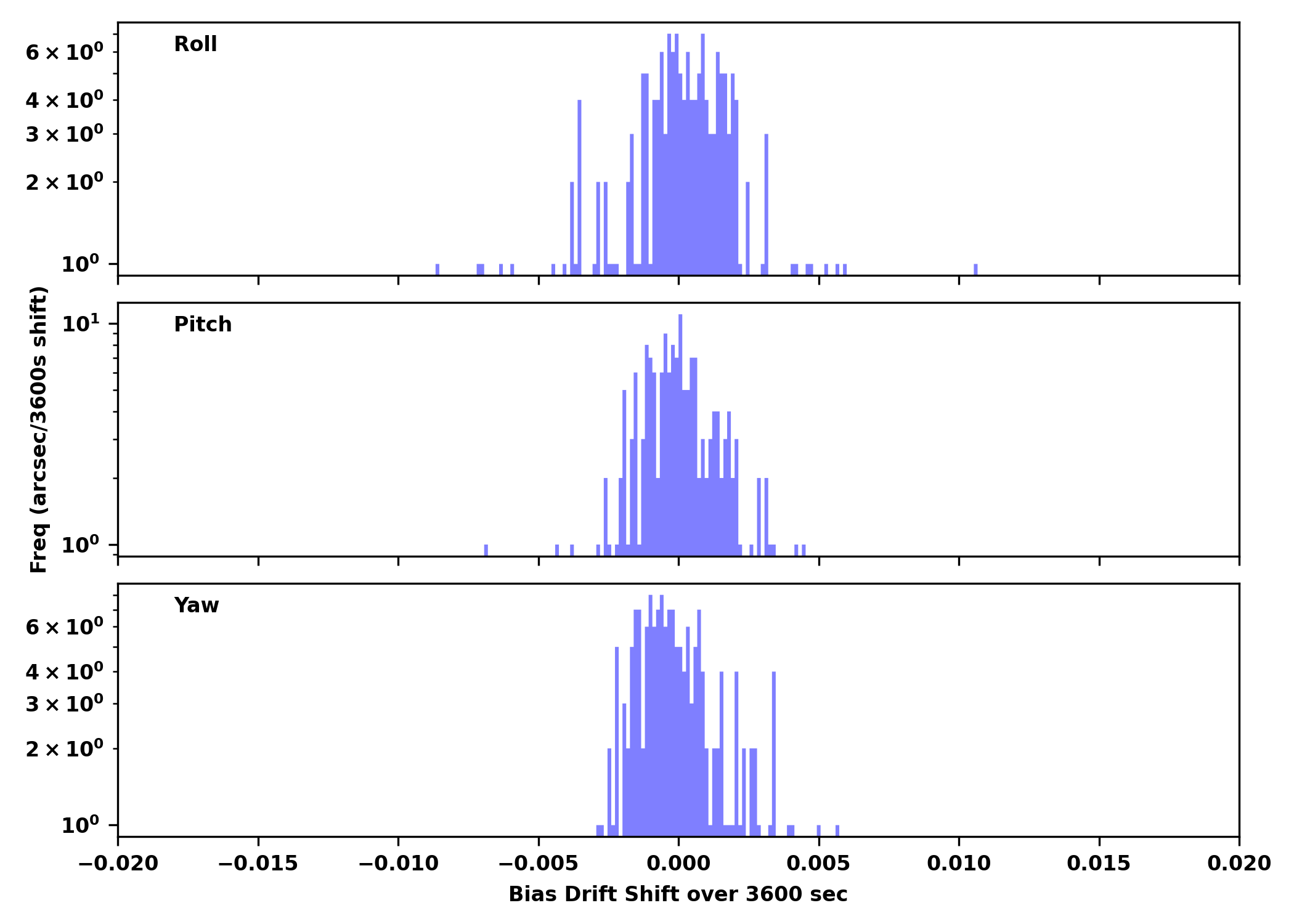

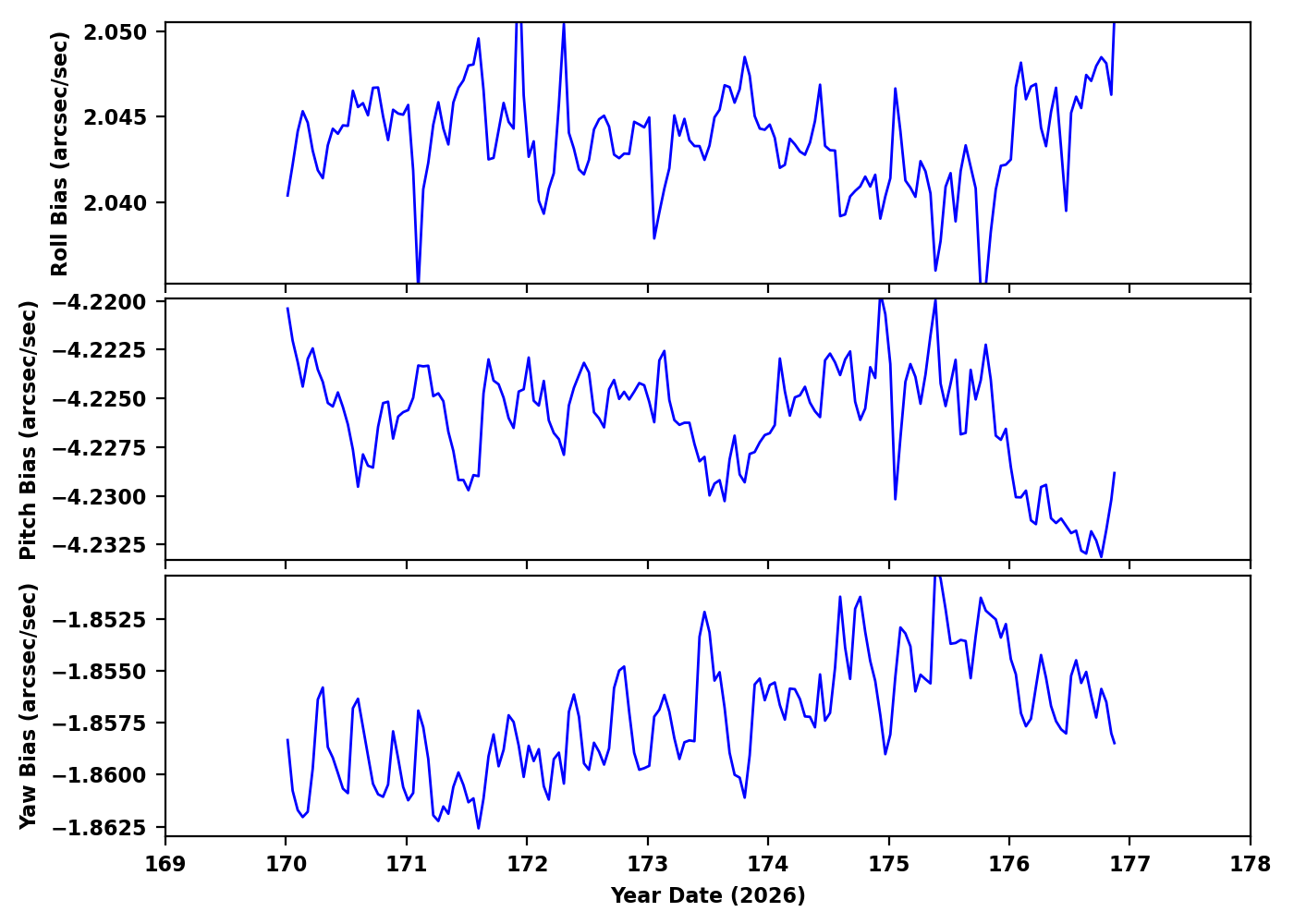

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30246	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32394	ACIS-67	NONE	1RXS J170017.0-300344	OK	OK
29868	ACIS-67	NONE	HIPASS J1131-31	OK	OK
31401	ACIS-01236	NONE	A1795	OK	OK
32393	ACIS-67	NONE	1RXS J170009.6-245925	OK	OK
32392	ACIS-5678	NONE	2MASSJ16561677-3302127	OK	OK
30251	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
30428	ACIS-0123	NONE	Abell 2255	OK	OK
32396	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
30005	ACIS-67	NONE	MaNGA 8338-12703	OK	OK
30223	ACIS-67	HETG	NGC 4593	OK/NA	OK
30132	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
30249	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32405	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
30134	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
32407	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
30061	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
31402	ACIS-01236	NONE	A1795	OK	OK
31405	ACIS-01236	NONE	A1795	OK	OK
31403	ACIS-01236	NONE	A1795	OK	OK
31611	ACIS-67	NONE	Kes 73	OK	OK
31406	ACIS-01236	NONE	A1795	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4hposaro	-0.299	0.024	66.69 +/- 20.55	0.56 +/- 0.68	na	NA
4hposbro	-0.295	0.025	67.29 +/- 20.75	0.63 +/- 0.69	na	NA
4lposaro	0.031	0.014	73.97 +/- 12.11	0.13 +/- 0.39	na	NA
4lposbro	0.032	0.015	73.01 +/- 12.45	0.18 +/- 0.40	na	NA
4mp28av	0.015	8.788e-04	0.45 +/- 0.74	-0.01 +/- 0.02	V	MCE A: +28 VOLT MONITOR
4mp28bv	0.093	0.004	2.24 +/- 3.40	-0.06 +/- 0.10	V	MCE B: +28 VOLT MONITOR
4mp5av	0.025	9.782e-04	0.56 +/- 0.84	-0.03 +/- 0.03	V	MCE A: +5 VOLT MONITOR
4mp5bv	0.017	7.239e-04	0.41 +/- 0.62	-0.01 +/- 0.02	V	MCE B: +5 VOLT MONITOR

If you have any questions, please contact: swolk@head.cfa.harvard.edu
