MTA Monitoring Report 06/12/26 - 06/18/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels		(110,18) (266,210)
Current Warm Pixels			(526,66) (99,899) (178,149) (803,225)	(811,637) (21,95)			(335,412)	(275,393)
Flickering Warm Pixels	(786,117) (154,9)	(802,665) (427,125) (910,239)	(665,25) (726,537)	(680,391)	(728,340) (641,669) (226,202) (282,385) (258,797) (669,577) (367,511) (877,408) (233,227) (369,376) (161,206) (263,317) (357,303) (233,102)	(670,387) (849,169) (884,31) (287,164) (360,249)		(838,239) (447,769) (182,474) (136,65) (220,813) (541,41) (295,978) (597,187)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					512 510 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 9 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
161.03	-116.64	0.12
161.52	-99.28	0.90
163.09	-109.55	1.27
163.58	-107.44	0.50
164.16	-99.09	0.53
164.45	-112.92	0.67
166.14	-105.79	1.33
167.32	-109.30	0.53
167.82	-114.05	0.96

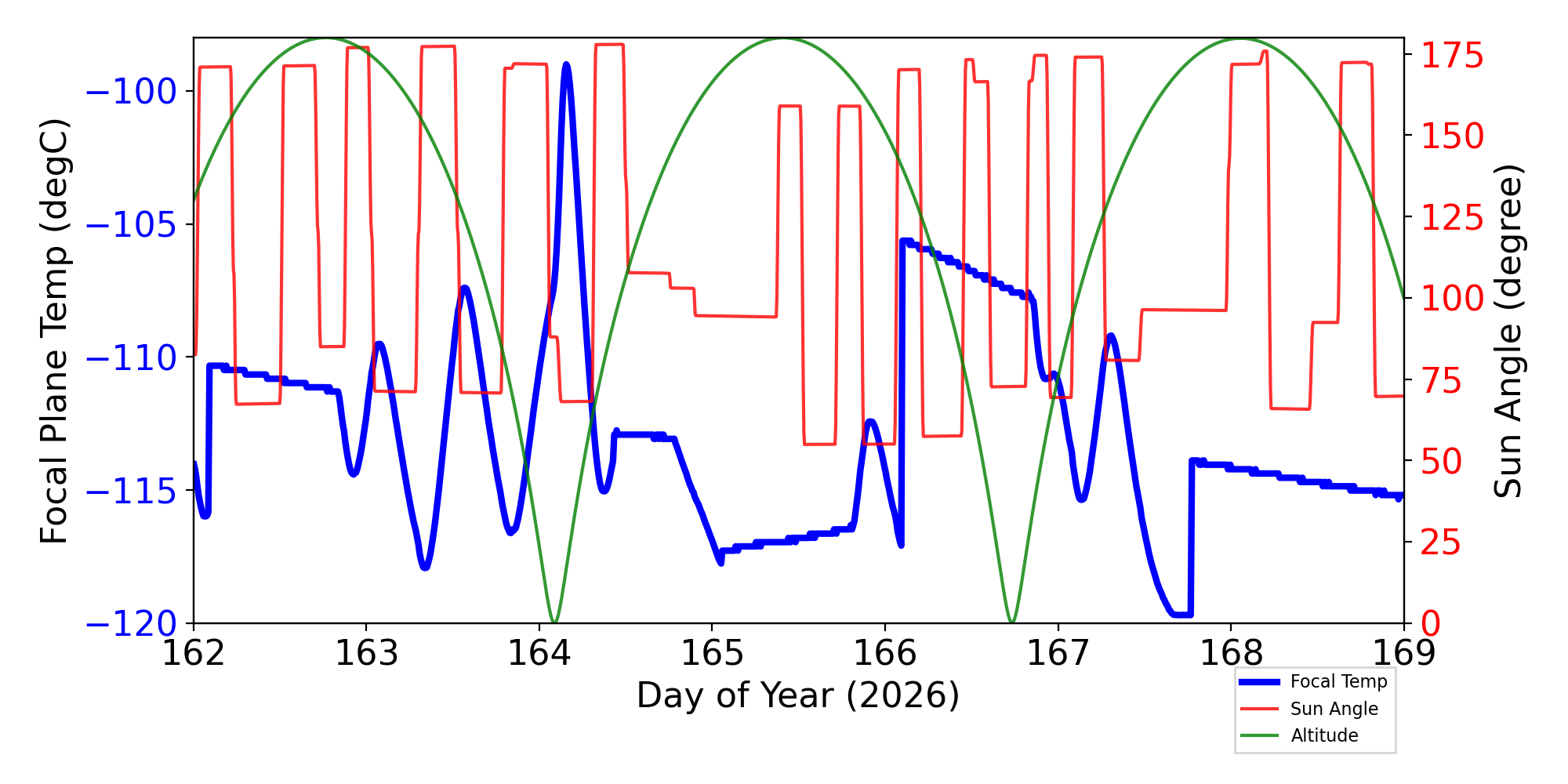

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

11 TSC moves this period

weekly average time/step	0.00138 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	06/12/26	06/13/26	06/14/26	06/15/26	06/16/26	06/17/26	06/18/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	677.96	677.96		677.96	677.96	677.96	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(74.06)	(45.80)		(53.49)	(84.38)	(99.90)	(94.72)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AWD1TQI				(-3.39)			(-3.39)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI				(-3.43)			(-3.43)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR		(0.00)		(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE		309.59	312.97	308.66	312.81	310.61	311.53	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG		301.08	304.09		304.01	302.58	302.78	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG	303.52	306.31			309.64			(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.81	4.63	4.59	4.59	4.80	4.79	4.74	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE			308.80		308.71			(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE		47.31	48.39		48.39	47.12	47.74	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

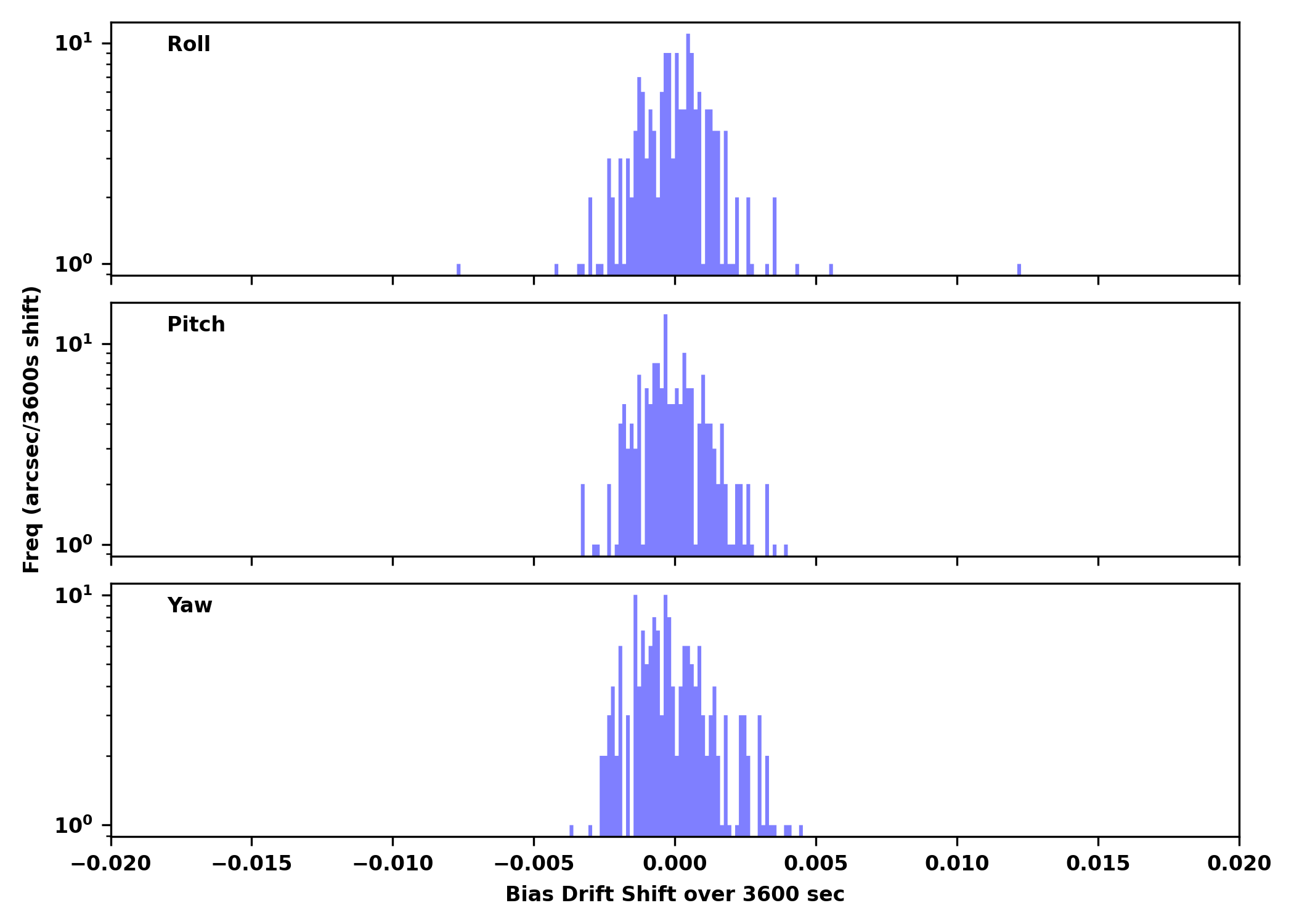

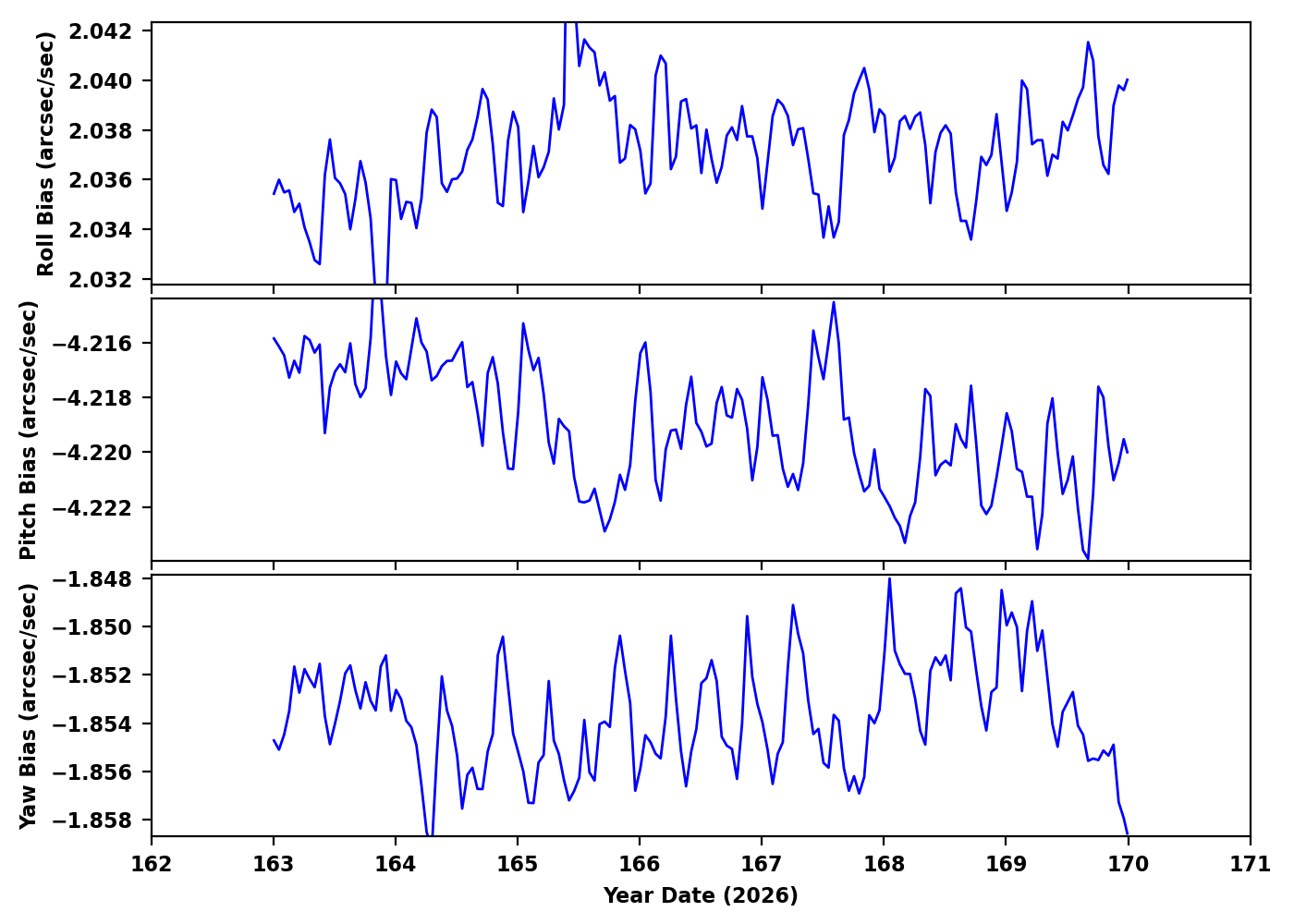

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
32358	HRC-I	NONE	Ar Lac	OK	OK
30137	ACIS-2367	NONE	Kepler's SNR	OK	OK
32386	ACIS-2367	NONE	Kepler's SNR	OK	OK
29801	ACIS-456789	HETG	AN UMa	OK/NA	OK
32384	ACIS-456789	HETG	AN UMa	OK/NA	OK
30139	ACIS-2367	NONE	Kepler's SNR	OK	OK
31409	ACIS-23567	NONE	A1795	OK	OK
32385	ACIS-67	NONE	SDSS J131249.15+225151.5	OK	OK
32383	ACIS-3678	NONE	NGC4293	OK	OK
30538	ACIS-0123	NONE	1RXS J021649.0+703552	OK	OK
32381	ACIS-678	NONE	GAIA DR2 4370003505696558080	OK	OK
32391	ACIS-678	NONE	GAIA DR2 4370003505696558080	OK	OK
32387	ACIS-0123	NONE	1RXS J021649.0+703552	OK	OK
31140	ACIS-67	NONE	G011.2-0.3	OK	OK
32402	ACIS-67	NONE	SN2026obc	OK	OK
29995	ACIS-5678	NONE	ASASSN-14ko	OK	OK
32147	ACIS-0123	NONE	CMZ Molecular Cloud	OK	OK
29985	ACIS-7	HETG	MCG-5-23-16	OK/NA	OK
32398	ACIS-67	NONE	G011.2-0.3	OK	OK
32397	ACIS-0123	NONE	Abell 2255	OK	OK
30242	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32399	ACIS-67	NONE	G011.2-0.3	OK	OK
29925	ACIS-67	NONE	SDSS J142129.75+474724.5	OK	OK
32367	ACIS-23678	NONE	TDE2025abcr	OK	OK
32395	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt556t	0.094	6.033e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 556 - HRMA TEMP
4rt558t	0.108	6.431e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 558 - HRMA TEMP
4rt568t	0.736	0.002	(2.93+/-0.06)e2	0.09 +/- 0.05	K	RT 568 - HRMA TEMP
4rt575t	1.018	0.003	(2.96+/-0.08)e2	0.10 +/- 0.06	K	RT 575 - OB CONE TEMP
4rt576t	0.751	0.002	(2.89+/-0.06)e2	0.08 +/- 0.05	K	RT 576 - OB CONE TEMP
4rt577t	1.104	0.003	(2.96+/-0.09)e2	0.15 +/- 0.08	K	RT 577 - OB CONE TEMP
4rt578t	1.017	0.003	(2.94+/-0.09)e2	0.15 +/- 0.07	K	RT 578 - OB CONE TEMP
4rt579t	0.768	0.003	(2.90+/-0.07)e2	0.14 +/- 0.07	K	RT 579 - OB CONE TEMP
4rt580t	0.780	0.003	(2.90+/-0.07)e2	0.14 +/- 0.07	K	RT 580 - OB CONE TEMP
4rt581t	0.872	0.004	(2.92+/-0.08)e2	0.17 +/- 0.07	K	RT 581 - OB CONE TEMP

HRMA Struts

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt582t	0.388	0.001	(2.87+/-0.03)e2	0.05 +/- 0.03	K	RT 582 - STRUT TEMP
4rt583t	0.596	0.002	(2.92+/-0.05)e2	0.05 +/- 0.04	K	RT 583 - STRUT TEMP
4rt584t	0.745	0.002	(2.95+/-0.06)e2	0.06 +/- 0.04	K	RT 584 - STRUT TEMP
4rt585t	0.748	0.002	(2.95+/-0.06)e2	0.07 +/- 0.04	K	RT 585 - STRUT TEMP
4rt586t	0.598	0.002	(2.92+/-0.05)e2	0.06 +/- 0.04	K	RT 586 - STRUT TEMP
4rt587t	0.387	0.002	(2.88+/-0.03)e2	0.06 +/- 0.03	K	RT 587 - STRUT TEMP
4rt588t	-0.003	8.393e-04	(2.83+/-0.01)e2	0.02 +/- 0.02	K	RT 588 - STRUT TEMP
4rt589t	0.790	0.003	(2.90+/-0.07)e2	0.07 +/- 0.05	K	RT 589 - STRUT TEMP
4rt590t	1.369	0.004	(2.99+/-0.11)e2	0.06 +/- 0.07	K	RT 590 - STRUT TEMP
4rt591t	1.361	0.004	(2.99+/-0.11)e2	0.09 +/- 0.07	K	RT 591 - STRUT TEMP
4rt592t	0.722	0.003	(2.89+/-0.06)e2	0.07 +/- 0.04	K	RT 592 - STRUT TEMP
4rt593t	-0.010	6.784e-04	(2.83+/-0.01)e2	0.02 +/- 0.01	K	RT 593 - STRUT TEMP
4rt594t	0.002	0.003	(2.88+/-0.02)e2	0.02 +/- 0.01	K	RT 594 - TFTE TEMP
4rt595t	0.729	0.002	(2.90+/-0.06)e2	0.07 +/- 0.04	K	RT 595 - TFTE TEMP
4rt596t	0.611	0.003	(2.88+/-0.05)e2	0.02 +/- 0.04	K	RT 596 - TFTE TEMP
4rt597t	1.304	0.003	(2.98+/-0.11)e2	0.12 +/- 0.07	K	RT 597 - TFTE TEMP
4rt598t	1.292	0.003	(2.97+/-0.11)e2	0.13 +/- 0.07	K	RT 598 - TFTE TEMP
