MTA Monitoring Report 03/06/26 - 03/12/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (910,239) (427,125) (104,31) (526,66) (99,899) (803,225) (665,25) (178,149) (680,391) (394,80) (617,159) (21,95)
Flickering Warm Pixels (171,937) (283,278) (692,141) (370,70) (787,181) (271,24) (345,12) (726,537) (642,361) (837,378) (353,201) (318,53) (144,50) (811,637)   (877,408) (367,511) (369,376) (233,102) (884,31) (1000,214) (849,169) (670,387) (335,412) (275,393)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           1022 512 510   1022 512   40
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 4 peaks are observed.

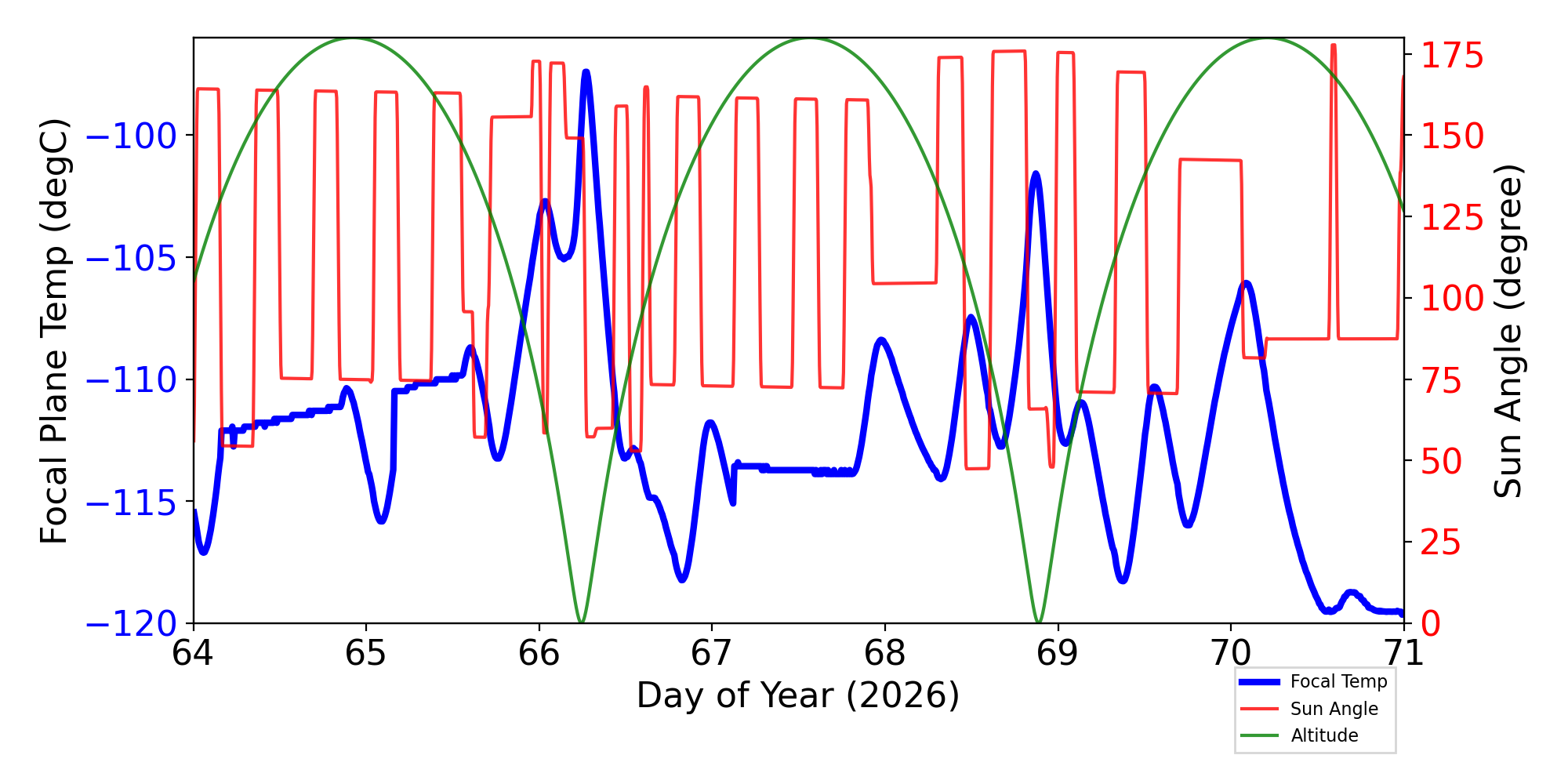

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

17 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 03/06/26 03/07/26 03/08/26 03/09/26 03/10/26 03/11/26 03/12/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
1CRBT             677.96 (136.15)
183.15		 (131.15)
193.15		 KCOLD RADIATOR TEMP. B
1CRBTC             (40.69) (136.15)
183.15		 (131.15)
193.15		 CCOLD RADIATOR TEMP. B
AFTBLKHDT           310.31 308.48 (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI (-3.39)     (-3.39)       (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD3TQI (-3.39)             (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 3 TORQUE CURRENT
AWD4TQI (-3.43)   (-3.43)         (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 4 TORQUE CURRENT
AWD6TQI (-3.47)     (-3.43)     (-3.43) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV (0.00)             (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR       (0.00) (0.00)     (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
FAMTRTEMP           292.65 292.15 (260.0)
289.0		 (255.0)
292.0		 KFA Motor Temperature
IMHBLV   (85.00)           (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 308.72 308.01 309.13 312.18   315.95 312.25 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG       303.71   306.63 305.04 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG   304.85   309.27 304.11   310.70 (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.90 4.76 4.87 4.54 4.83 4.85 4.20 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE       308.18   311.74 310.55 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCYZ_RW6           (272.80) (276.44) (288.15)
363.15		 (278.15)
404.15		 KRWA -6 TEMP (RWA CRNR COMP)
TFTERANGE 46.28 45.64   48.80 47.30 47.42 46.27 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3   (268.79)     (268.79) (268.79)   (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

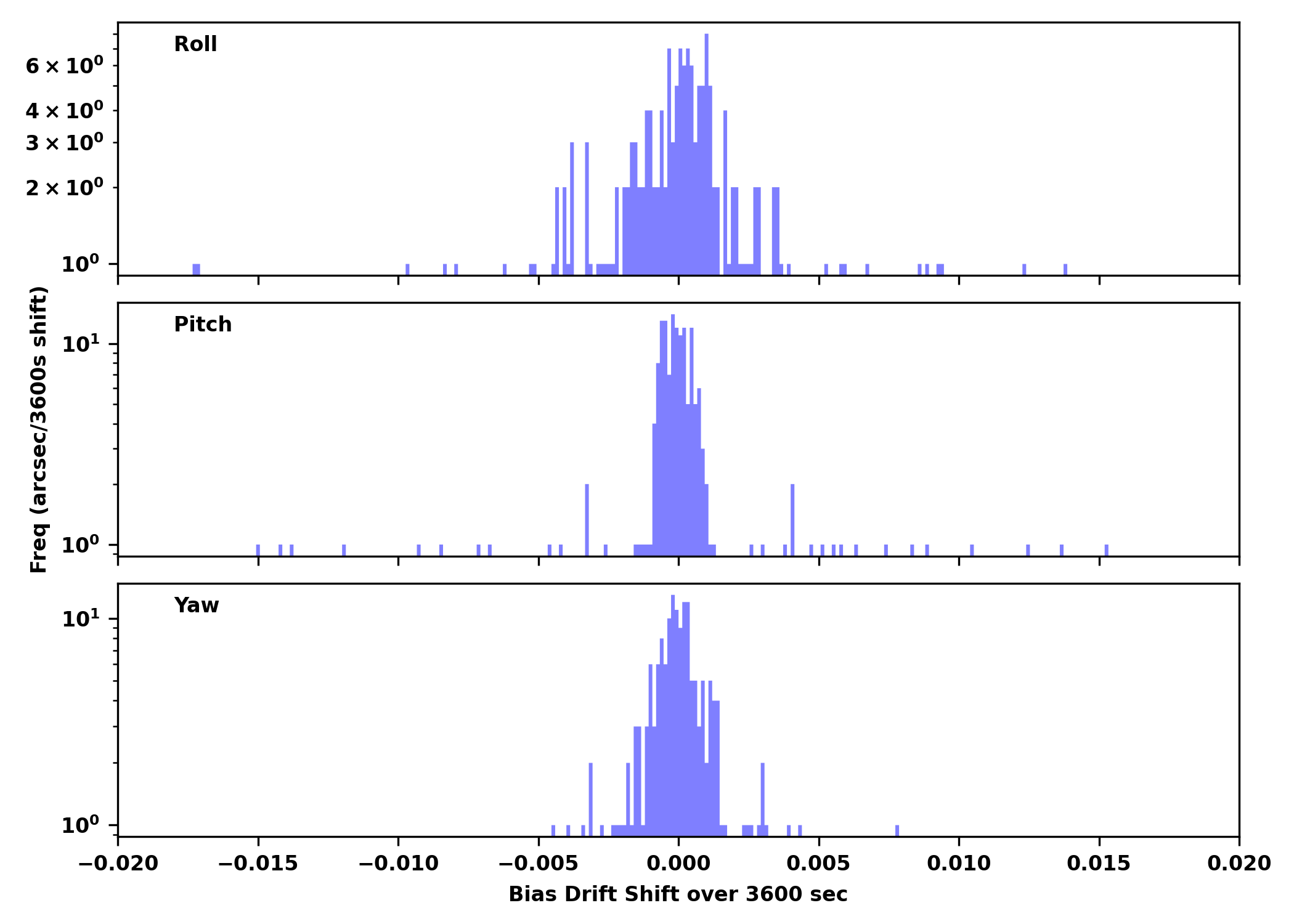

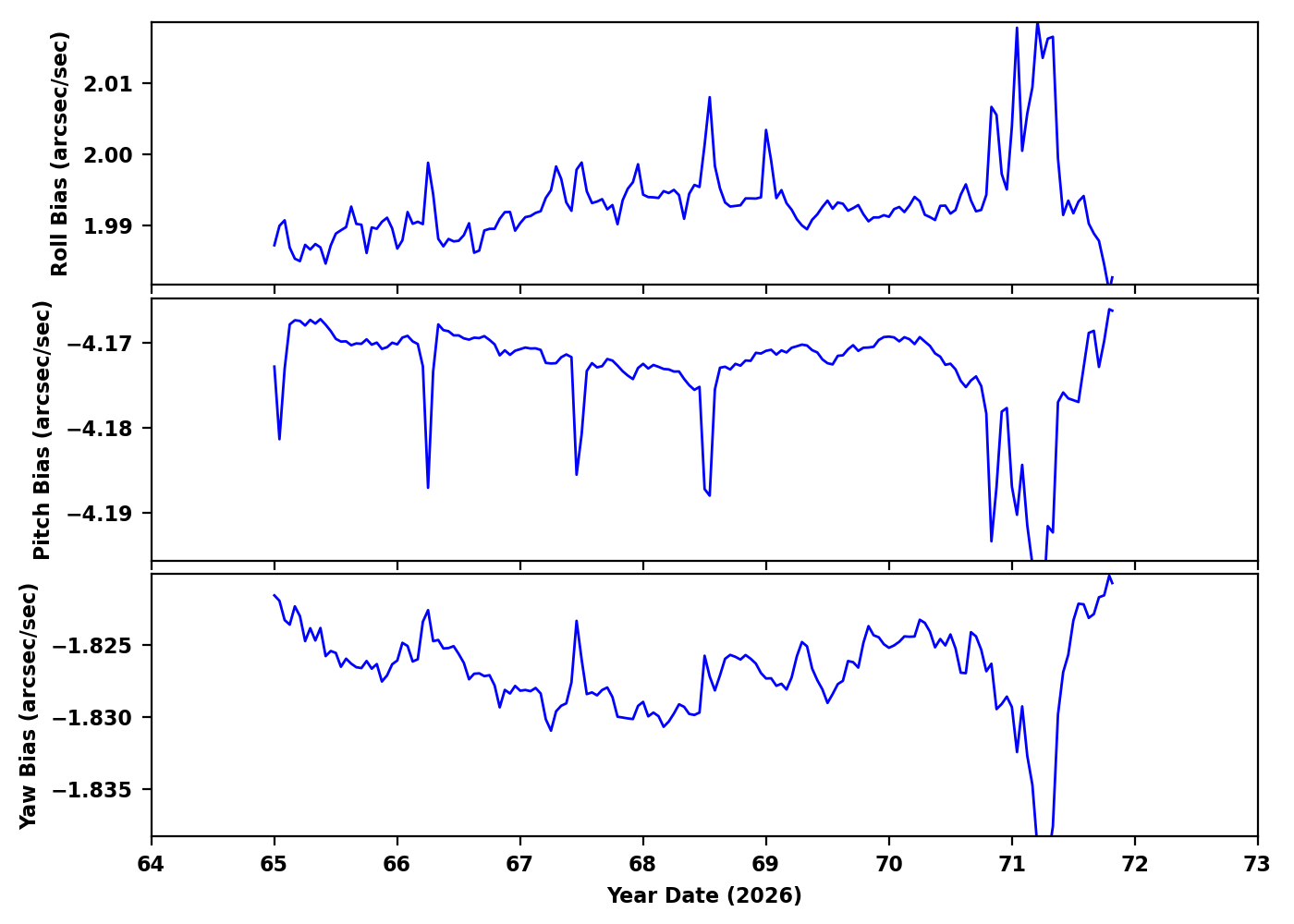

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
32202 ACIS-0123 NONE Perseus cluster OK OK
32195 ACIS-0123 NONE Center of COSMOS-Web OK OK
32194 ACIS-0123 NONE Center of COSMOS-Web OK OK
29632 ACIS-01236 NONE Perseus cluster N OK OK
32183 ACIS-67 NONE HD 14082B OK OK
32173 HRC-S LETG Capella OK/NA OK
29888 ACIS-67 NONE NGVS J124352.48+112518.3 OK OK
31897 HRC-I NONE ArLac OK OK
32196 ACIS-0123 NONE Center of COSMOS-Web OK OK
32184 ACIS-0123 NONE Perseus cluster N OK OK
30344 ACIS-01236 NONE Perseus cluster W OK OK
31258 ACIS-67 NONE M 87 OK OK
30266 ACIS-0123 NONE Center of COSMOS-Web OK OK
32201 ACIS-01236 NONE Perseus cluster W OK OK
32185 ACIS-0123 NONE Perseus cluster N OK OK
32197 ACIS-0123 NONE Center of COSMOS-Web OK OK
32198 ACIS-0123 NONE Center of COSMOS-Web OK OK
32208 ACIS-0123 NONE UGC 06457 OK OK
31081 ACIS-5678 HETG GS 1354-64 CC/NA OK
32205 ACIS-5678 NONE GALEXASC J211218.07-425638.9 OK OK
30333 ACIS-0123 NONE Perseus cluster N OK OK
29920 ACIS-67 NONE SDSS J105432.03+122851.9 OK OK
32216 ACIS-0123 NONE Perseus cluster N OK OK
31149 ACIS-67 NONE AT2026dbl OK OK
32209 ACIS-67 NONE Gaia DR2 3308152208457011072 OK OK
32221 ACIS-456789 HETG SNR 1987A OK/NA OK
31123 ACIS-456789 HETG SNR 1987A OK/NA OK
32213 ACIS-67 NONE SDSS J105432.03+122851.9 OK OK

Trending

This week's focus is Ground Computed Gradients

Last reported on Dec 25.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hcapgrd1 -1.0410.3613.84 +/- 245.60(1.10+/-1.70)e-4KRT100-RT101: HRMA CAP circum
hcapgrd2 -1.0190.3333.76 +/- 226.58(6.20+/-4.65)e-4KRT100-RT104: HRMA CAP ridial
hcapgrd3 0.2050.106-0.85 +/- 71.74-(2.08+/-2.15)e-4KRT101-RT102: HRMA CAP circum
hcapgrd4 0.0220.041-0.08 +/- 27.91(5.84+/-4.46)e-4KRT101-RT104: HRMA CAP ridial
hcapgrd5 0.2240.066-0.64 +/- 44.92(1.30+/-2.39)e-4KRT102-RT103: HRMA CAP circum
hcapgrd6 -0.2540.0990.88 +/- 67.14(5.56+/-5.70)e-4KRT102-RT105: HRMA CAP ridial
hcapgrd7 -0.4300.1601.49 +/- 109.09-(3.09+/-16.99)e-5KRT103-RT101: HRMA CAP circum

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hfapgrd1 0.7870.268-2.89 +/- 182.30-(6.51+/-141.10)e-6KRT1-RT2: HRMA Forward Aperture Plate
hfapgrd2 0.0990.043-0.34 +/- 29.280.01 +/- 0.00KRT1-RT4: HRMA Forward Aperture Plate
hfapgrd3 -0.5940.1912.20 +/- 130.19-(1.00+/-1.84)e-4KRT2-RT3: HRMA Forward Aperture Plate
hfapgrd4 -0.1940.0710.77 +/- 47.930.00 +/- 0.00KRT2-RT5: HRMA Forward Aperture Plate
hfapgrd5 -0.1930.0820.69 +/- 56.01(1.34+/-14.73)e-5KRT3-RT1: HRMA Forward Aperture Plate
hfapgrd6 0.2800.087-1.03 +/- 59.420.01 +/- 0.00KRT3-RT6: HRMA Forward Aperture Plate
hfapgrd7 0.4940.159-1.78 +/- 107.89-(1.83+/-21.83)e-5KRT4-RT5: HRMA Forward Aperture Plate
hfapgrd8 -0.1190.0390.41 +/- 26.20(3.01+/-26.16)e-5KRT5-RT6: HRMA Forward Aperture Plate
hfapgrd9 -0.3750.1251.37 +/- 84.77(4.87+/-11.06)e-5KRT6-RT4: HRMA Forward Aperture Plate

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hsstrtgrd1 12.9094.465-55.52 +/- 3437.84-0.00 +/- 0.02KRT75-RT76: Spacecraft Struts
hsstrtgrd2 -0.9293.128-1.66 +/- 2407.980.01 +/- 0.02KRT76-RT77: Spacecraft Struts
hsstrtgrd3 -25.40810.07199.07 +/- 7754.51-0.01 +/- 0.01KRT77-RT78: Spacecraft Struts
hsstrtgrd4 7.8483.283-24.64 +/- 2528.00-0.02 +/- 0.02KRT78-RT79: Spacecraft Struts
hsstrtgrd5 9.6502.823-33.02 +/- 2174.360.04 +/- 0.02KRT79-RT80: Spacecraft Struts
hsstrtgrd6 -4.0691.76015.77 +/- 1355.070.00 +/- 0.00KRT80-RT75: Spacecraft Struts
