MTA Monitoring Report 10/03/25 - 10/09/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (802,665) (985,393) (910,239) (178,149) (104,31) (526,66) (99,899) (803,225) (837,378) (726,537) (21,95)     (849,169) (335,412)
Flickering Warm Pixels (283,278) (171,937) (427,125) (665,25) (811,637) (318,53) (394,80)   (282,385) (369,376) (884,31) (1000,214) (670,387) (287,164)   (275,393)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 1022 510   512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 5 peaks are observed.

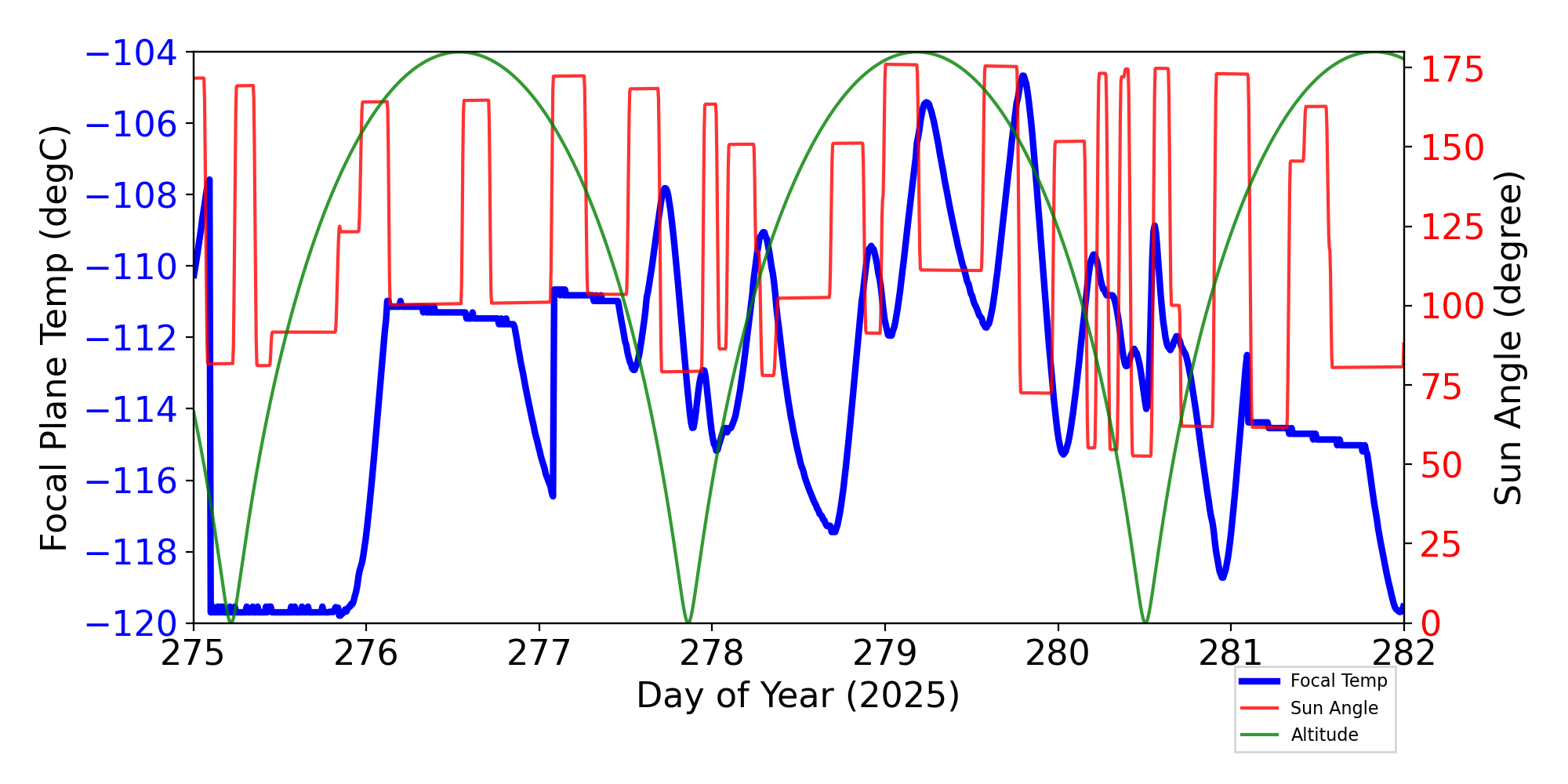

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

15 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 10/03/25 10/04/25 10/05/25 10/06/25 10/07/25 10/08/25 10/09/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AWD1TQI             (-3.39) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD4TQI       (-3.31)       (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 4 TORQUE CURRENT
AWD6TQI   (-3.43)   (-3.47)     (-3.47) (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV       (0.00)       (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR (0.00) (0.00)     (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
MZOBACONE 313.16 313.08 313.40 310.12   310.16 314.02 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 304.59 304.68 304.76 302.51   301.34 305.35 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG           306.56   (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.49 4.82 4.54 4.68 4.59 4.94 4.67 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 309.08 309.08 309.34       310.04 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
SPINATM       (-117.76)       (-12.0)
35.0		 (-15.0)
40.0		 CSpect Det Temperature
TFTERANGE   48.84 48.92 48.07 45.82 46.01 49.29 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3 (268.06)   (268.43)         (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

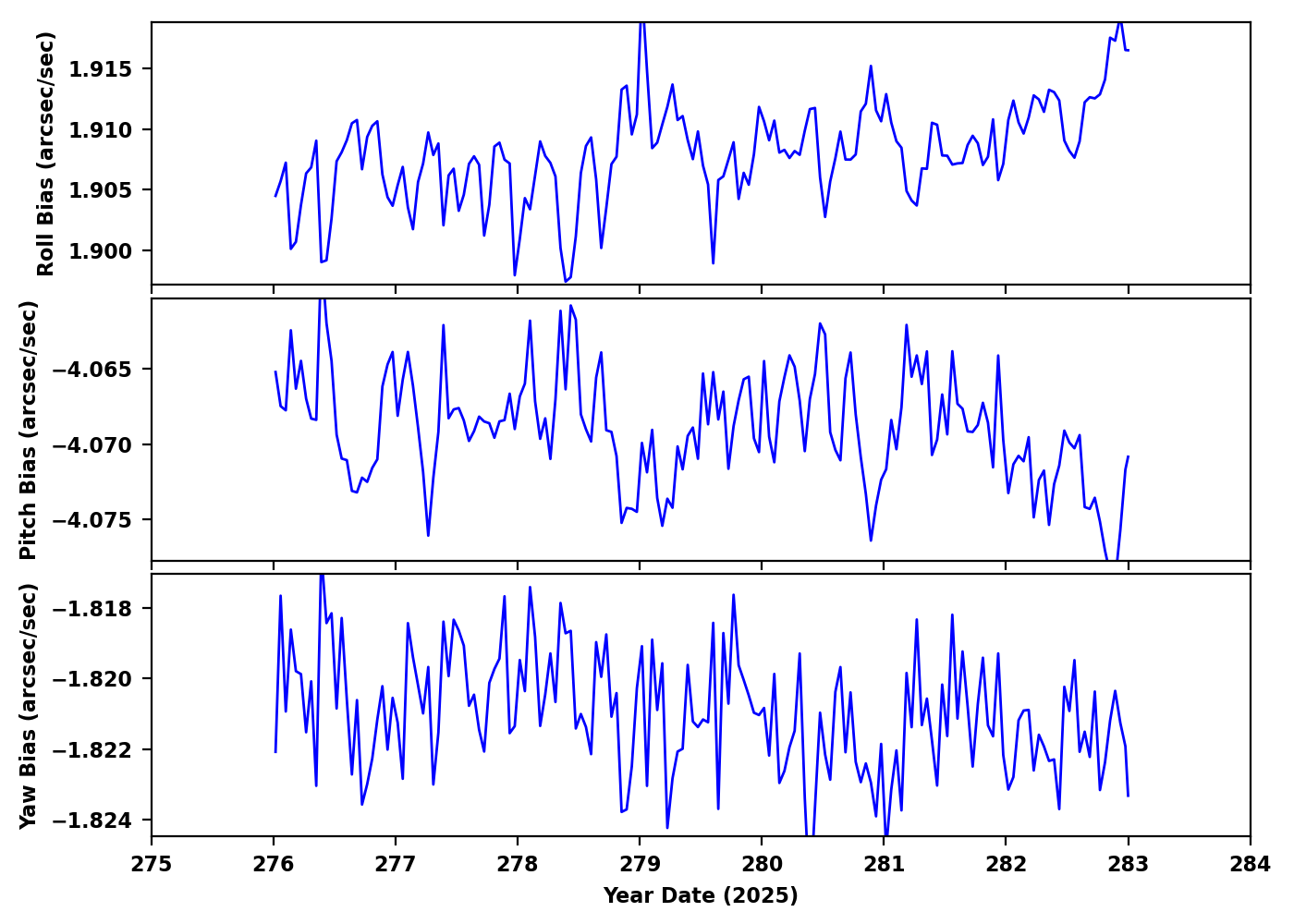

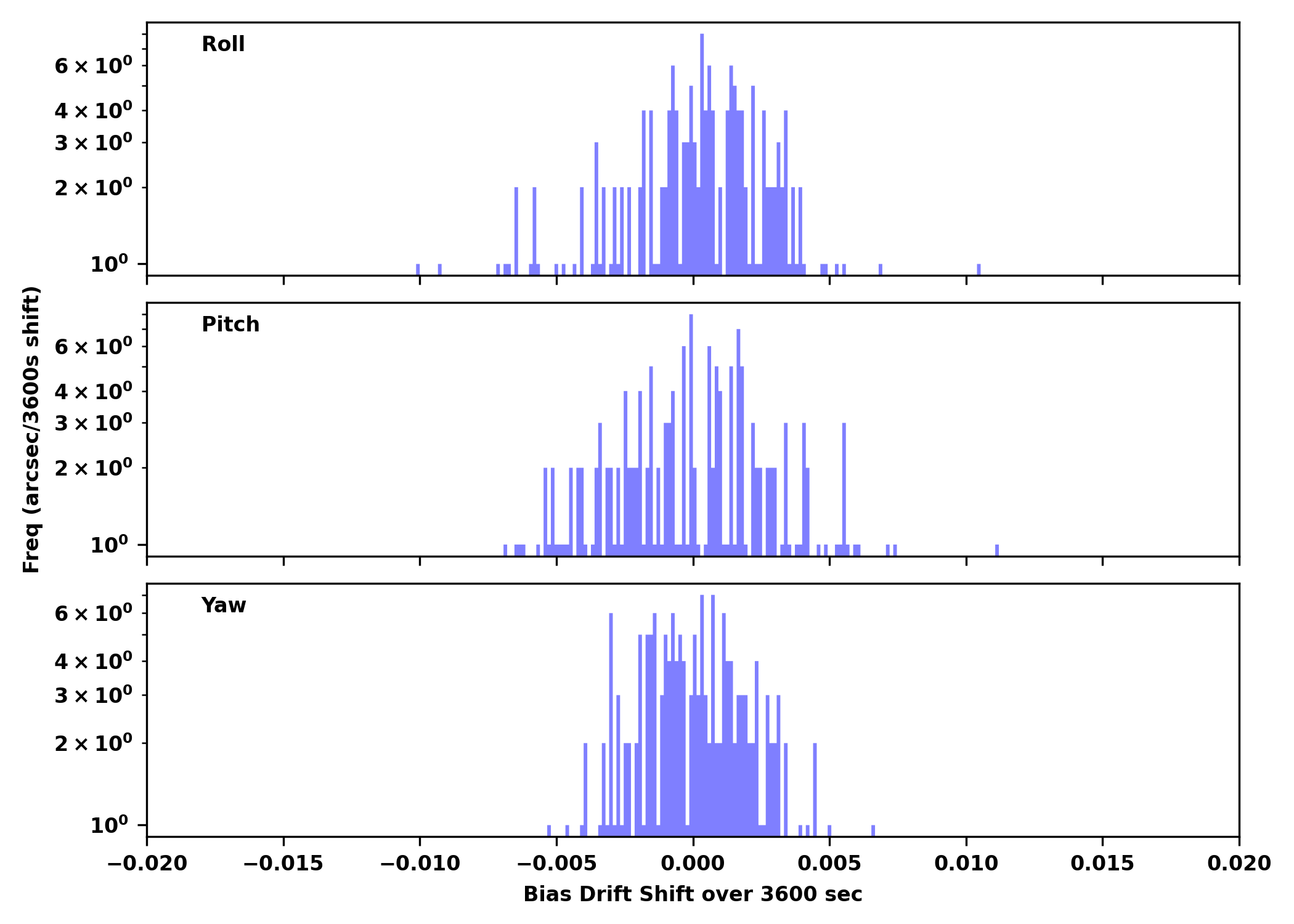

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
29601 ACIS-23 NONE Cas A OK OK
29600 ACIS-01 NONE Cas A OK OK
29602 ACIS-67 NONE Cas A OK OK
30116 ACIS-5678 HETG SNR 1987A OK/NA OK
31900 ACIS-67 NONE UM 351 OK OK
31900 ACIS-67 NONE UM 351 OK OK
31907 ACIS-0123 NONE II Zw 40 OK OK
31908 ACIS-0123 NONE II Zw 40 OK OK
31899 ACIS-0123 NONE S82X-1094 OK OK
28037 ACIS-5678 NONE SMC 2857 OK OK
28136 ACIS-67 NONE IGR J17598-2236 OK OK
28670 ACIS-567 NONE NGC410 OK OK
31909 ACIS-0123 NONE II Zw 40 OK OK
29531 HRC-I NONE Vega OK OK
29533 HRC-S NONE Vega OK OK
29532 HRC-S NONE Vega OK OK
31901 ACIS-567 NONE NGC410 OK OK
31915 ACIS-2367 NONE ACT-CL_J0034.4+0225 OK OK
29842 ACIS-0123 NONE PSR J2017+3625 OK OK
28723 ACIS-2367 NONE ACT-CL_J0034.4+0225 OK OK
31504 HRC-S LETG 4U 1626-67 OK/NA OK
28605 ACIS-0123 NONE Abell 370 OK OK
30493 ACIS-67 NONE 1E 161348-5055.1 CC OK
31912 ACIS-67 NONE MCG_01_05_047_s2 OK OK
28320 ACIS-0123 NONE PSZ2G302.85-88.63 OK OK
31911 ACIS-67 NONE SDSSJ003723.49+000812.5 OK OK
31917 ACIS-67 NONE 1E 161348-5055.1 CC OK
29988 ACIS-67 HETG NGC 3516 OK/NA OK
28617 ACIS-0123 NONE Abell 370 OK OK
29640 ACIS-3678 NONE NGC1546 OK OK

Trending

This week's focus is Ground Computed Gradients

Last reported on Jul 24.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hcapgrd1 -1.1310.3944.03 +/- 251.65(7.41+/-17.89)e-5KRT100-RT101: HRMA CAP circum
hcapgrd2 -1.1070.3633.94 +/- 232.16(7.84+/-4.61)e-4KRT100-RT104: HRMA CAP ridial
hcapgrd3 0.2230.115-0.88 +/- 73.51-(2.93+/-2.19)e-4KRT101-RT102: HRMA CAP circum
hcapgrd4 0.0240.045-0.09 +/- 28.60(8.45+/-4.26)e-4KRT101-RT104: HRMA CAP ridial
hcapgrd5 0.2430.072-0.68 +/- 46.02(2.21+/-2.44)e-4KRT102-RT103: HRMA CAP circum
hcapgrd6 -0.2770.1080.92 +/- 68.79(8.02+/-5.51)e-4KRT102-RT105: HRMA CAP ridial
hcapgrd7 -0.4670.1751.57 +/- 111.77-(5.84+/-17.13)e-5KRT103-RT101: HRMA CAP circum

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hfapgrd1 0.8550.292-3.03 +/- 186.79-(6.75+/-14.93)e-5KRT1-RT2: HRMA Forward Aperture Plate
hfapgrd2 0.1080.047-0.35 +/- 30.000.00 +/- 0.00KRT1-RT4: HRMA Forward Aperture Plate
hfapgrd3 -0.6450.2092.31 +/- 133.40(1.40+/-1.60)e-4KRT2-RT3: HRMA Forward Aperture Plate
hfapgrd4 -0.2100.0770.81 +/- 49.110.00 +/- 0.00KRT2-RT5: HRMA Forward Aperture Plate
hfapgrd5 -0.2100.0900.72 +/- 57.39-(2.80+/-1.29)e-4KRT3-RT1: HRMA Forward Aperture Plate
hfapgrd6 0.3060.095-1.07 +/- 60.880.00 +/- 0.00KRT3-RT6: HRMA Forward Aperture Plate
hfapgrd7 0.5360.173-1.87 +/- 110.55-(1.06+/-2.17)e-4KRT4-RT5: HRMA Forward Aperture Plate
hfapgrd8 -0.1290.0420.43 +/- 26.84(1.43+/-2.61)e-4KRT5-RT6: HRMA Forward Aperture Plate
hfapgrd9 -0.4070.1361.44 +/- 86.86-(1.36+/-10.21)e-5KRT6-RT4: HRMA Forward Aperture Plate

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hsstrtgrd1 16.6735.796-63.30 +/- 3706.05-0.03 +/- 0.03KRT75-RT76: Spacecraft Struts
hsstrtgrd2 -1.1684.062-0.98 +/- 2595.890.01 +/- 0.03KRT76-RT77: Spacecraft Struts
hsstrtgrd3 -32.61313.076(1.15+/-83.60)e2-0.01 +/- 0.01KRT77-RT78: Spacecraft Struts
hsstrtgrd4 10.0464.263-29.71 +/- 2725.24-0.02 +/- 0.03KRT78-RT79: Spacecraft Struts
hsstrtgrd5 12.2763.665-39.55 +/- 2343.970.05 +/- 0.03KRT79-RT80: Spacecraft Struts
hsstrtgrd6 -5.2142.28518.38 +/- 1460.79(7.90+/-27.65)e-4KRT80-RT75: Spacecraft Struts
