MTA Monitoring Report 09/19/25 - 09/25/25

Archive of all weekly reports
Archive of monthly reports


Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels                 (392,359)
Current Warm Pixels (786,117) (985,393) (802,665) (910,239) (837,378) (726,537) (99,899) (178,149) (803,225) (526,66) (104,31) (811,637) (21,95)     (849,169)
Flickering Warm Pixels (171,937) (90,859) (427,125) (665,25) (680,391) (617,159)   (728,340) (669,577) (161,206) (263,317) (554,484) (233,227) (233,102) (369,376) (1000,214) (884,31) (670,387) (335,412) (275,393) (597,187) (136,65) (139,109) (838,239) (893,490)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           1022 512 510   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 9 peaks are observed.

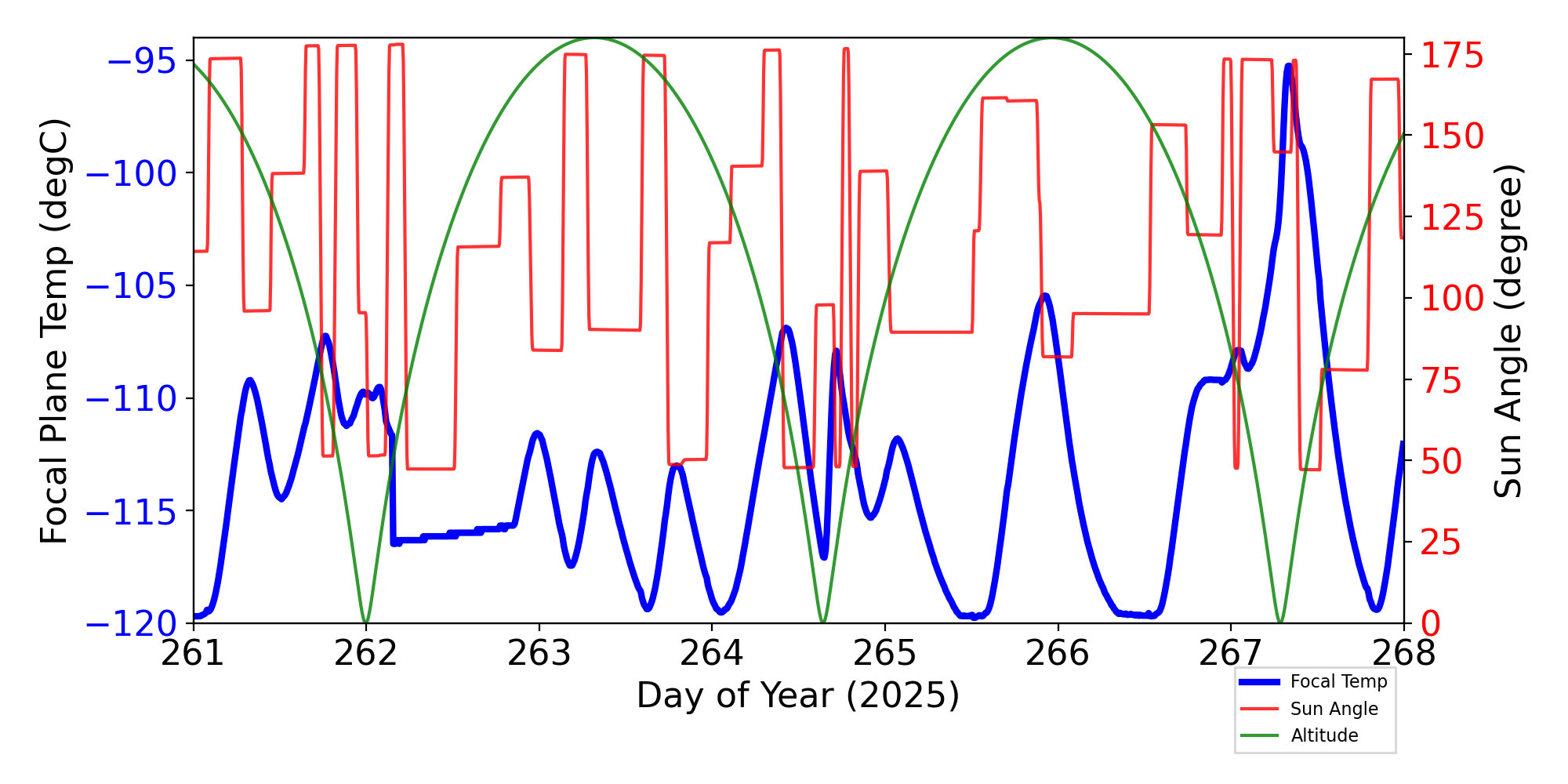

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

7 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 09/19/25 09/20/25 09/21/25 09/22/25 09/23/25 09/24/25 09/25/25 yellow limits
(lower)
upper
red limits
(lower)
upper
Units Description
AWD1TQI   (-3.39)     (-3.39) (-3.39) (-3.39) (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 1 TORQUE CURRENT
AWD3TQI       (-3.39)       (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 3 TORQUE CURRENT
AWD4TQI         (-3.39)     (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 4 TORQUE CURRENT
AWD6TQI   (-3.47)     (-3.43) (-3.47) (-3.47) (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 6 TORQUE CURRENT
CALPALV (124.00)             (126.0)
128.0
(125.0)
129.0
VCal Pulser Amplitude
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00)   (0.00) (36.12)
37.0
(36.0)
38.0
DBMTRANSMITTER B OUTPUT POWER
ESAMYI     (0.06)         (5.63)
30.15
(5.3)
33.0
AMPS/A -Y CURRENT
ESAPYI     (0.14)         (5.54)
30.15
(5.2)
33.0
AMPS/A +Y CURRENT
IMHBLV       (85.00)     (0.00) (126.0)
128.0
(125.0)
129.0
(2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE   310.46   313.01 314.25 310.38 313.27 (260.2)
303.0
(250.2)
308.0
CONE-Z SIDE OBA CONE
OBAAVG   302.19   304.24 305.31 302.75 304.14 (282.5)
300.0
(281.4)
301.0
KOBA/TFTE TEMP
OBACONEAVG 305.22             (282.5)
300.0
(281.8)
301.0
KOBA CONE AVG TEMP
OBADIAGRAD 4.10 4.80 4.43 4.65 4.82 4.79 4.75 (-1.11)
3.5
(-2.78)
3.9
KOBA DIAM GRAD
PZOBACONE       308.86 310.04   308.69 (260.2)
303.0
(250.2)
308.0
CONE+Z SIDE OBA CONE
TFTERANGE 47.90 47.76 47.44     47.23 47.55 (16.7)
37.5
(11.1)
45.0
KTFTE VENT/RAD TEMP


IRUs

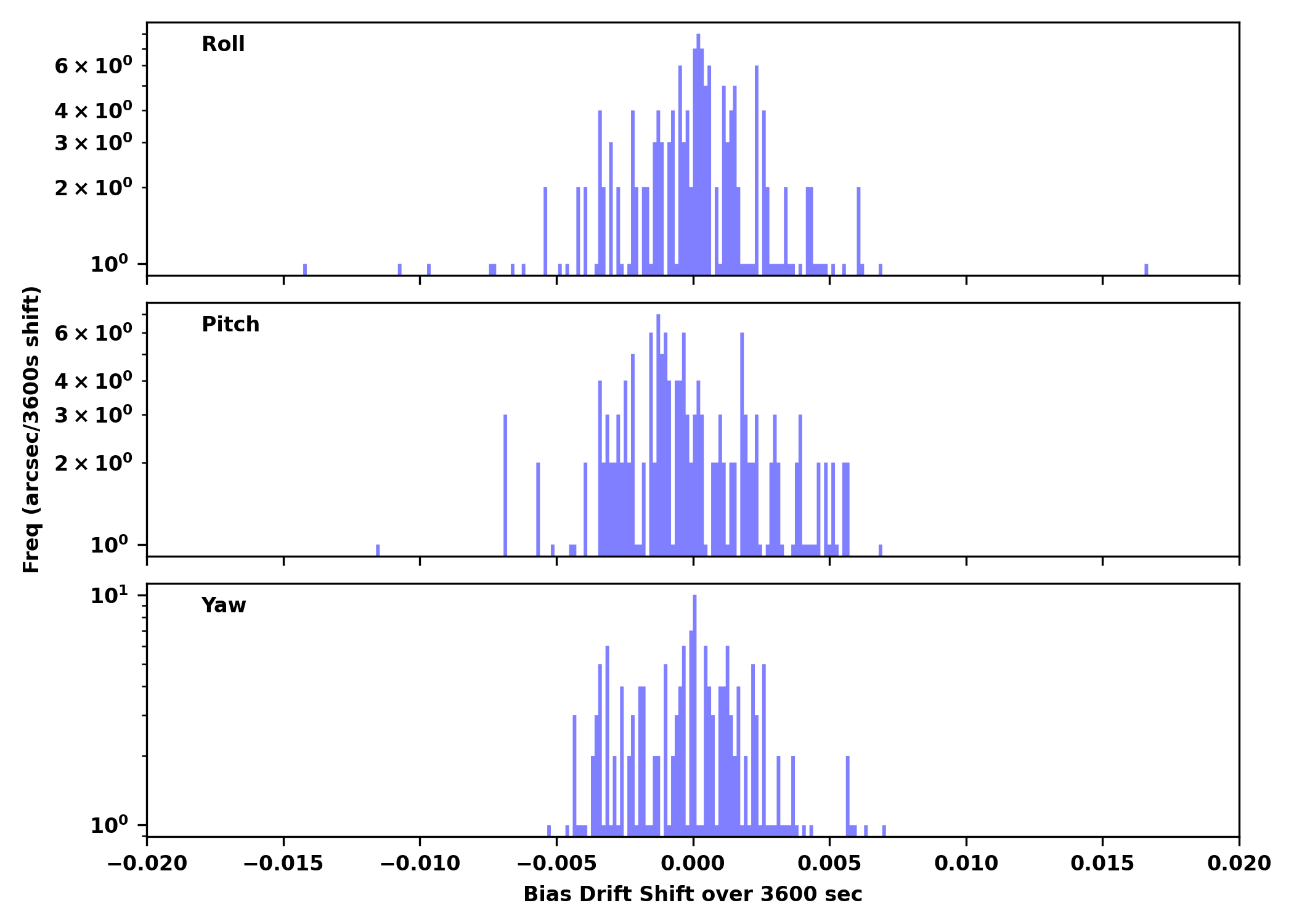

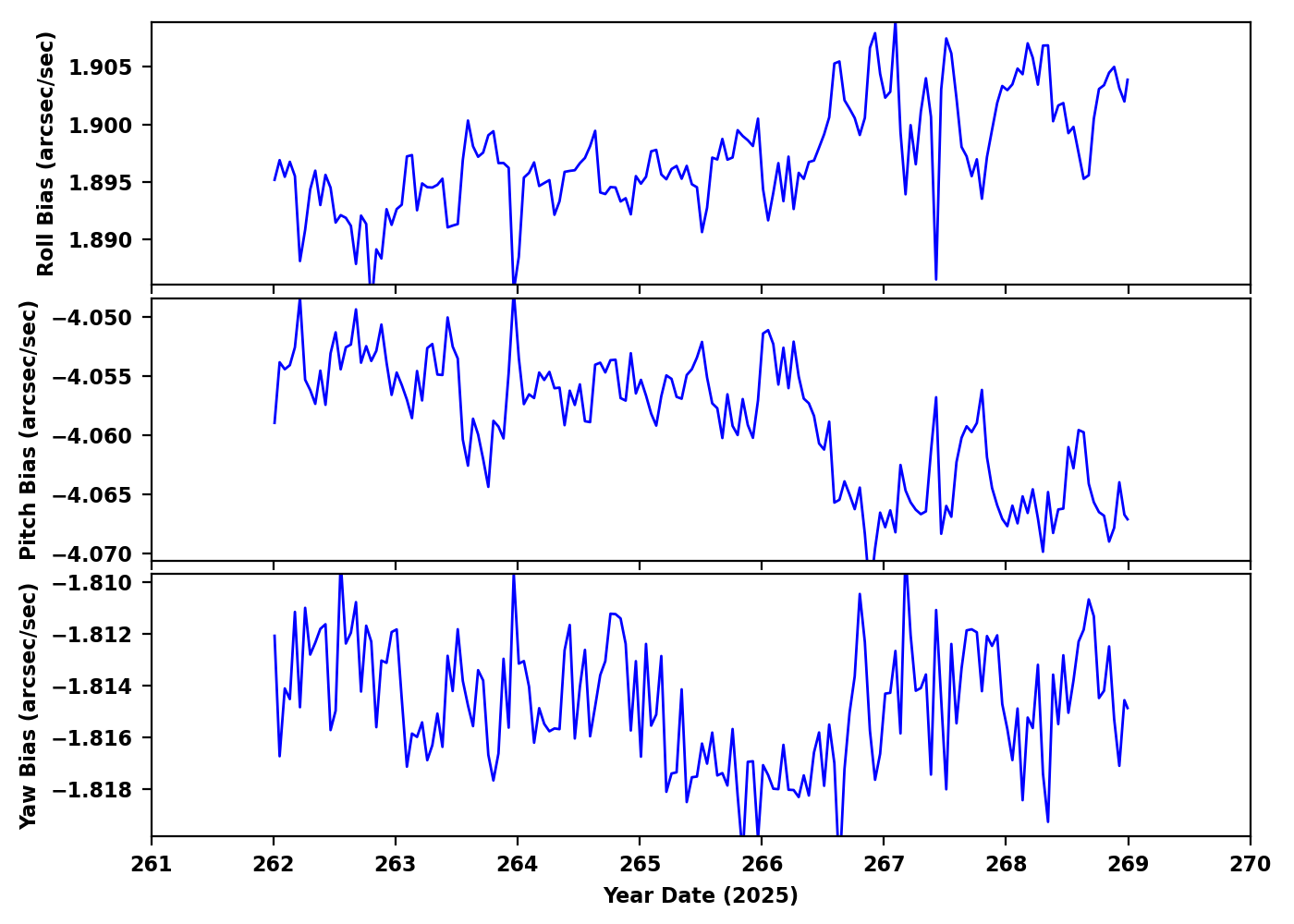

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
29628 ACIS-23 NONE Perseus Cluster OK OK
29629 ACIS-67 NONE Perseus Cluster OK OK
29934 ACIS-67 NONE SDSS J134009.43+411442.8 OK OK
28633 ACIS-0123 NONE Abell 370 OK OK
31870 ACIS-67 NONE PSR_J2339m0533_s2 OK OK
31873 HRC-I HETG 4U 1626-67 OK/NA OK
30136 ACIS-2367 NONE SNR G1.9+0.3 OK OK
31871 ACIS-67 NONE PSR_J2339m0533_s3 OK OK
31868 ACIS-67 NONE SDSSJ101401.86+461953.7 OK OK
30509 ACIS-01236 NONE Centaurus A OK OK
29630 ACIS-67 NONE Perseus Cluster OK OK
31874 ACIS-5678 HETG M33 X-8 OK/NA OK
28638 ACIS-0123 NONE Abell 370 OK OK
29598 ACIS-23 NONE Cas A OK OK
29970 ACIS-67 NONE SDSS J011207.48-005955.5 OK OK
31487 ACIS-012367 NONE NEXUS OK OK
29927 ACIS-67 NONE SDSS J011441.96+034915.8 OK OK
30491 HRC-I HETG 4U 1626-67 OK/NA OK
31473 ACIS-0123 NONE SPT-CL J2305-2248 OK OK
29865 ACIS-3678 NONE AM0305-824 OK OK
29866 ACIS-3678 NONE AM2107-474 OK OK
28074 ACIS-0123 NONE XMMU J170147.3-421407 OK OK
29869 ACIS-2567 NONE SDSS J003710.56-092725.1 OK OK
31890 ACIS-3678 NONE AM2107-474 OK OK
31481 ACIS-0123 NONE SPT-CL J2305-2248 OK OK
31892 HRC-I HETG 4U 1626-67 OK/NA OK
31893 HRC-I HETG 4U 1626-67 OK/NA OK
30489 ACIS-0123 NONE PSZ2G085.23+39.42 OK OK

Trending

This week's focus is SIM

Last reported on Jul 10.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
3btu_bpt 0.4320.009(2.66+/-0.07)e2-0.13 +/- 0.21KBTU BASEPLATE (+X)), ABORT HTR TSC2
3fabraat 0.0340.005(2.66+/-0.03)e2-0.05 +/- 0.08KFA STRUCTURE AT BEARING A ABORT HTR. FA6 TEMP
3fabrcat 0.0080.009(2.75+/-0.06)e2-0.01 +/- 0.18KFA STRUCTURE AT BEARING C ABORT HTR. FA6 TEMP
3famyzat -0.6370.016(2.81+/-0.12)e20.02 +/- 0.22KFA STRUCTURE +X FACE AT -Y-Z END ABORT HTR. FA6 TEMP
3fapyzat -0.7980.014(2.80+/-0.12)e2-0.05 +/- 0.09KFA STRUCTURE +X FACE AT +Y+Z END ABORT HTR. FA6 TEMP
3faralat -0.2720.015(2.75+/-0.11)e20.05 +/- 0.28KFA STRUCTURE AT RAIL -Z, ABORT HEATER FA6 TEMP
3flcabpt 0.3850.004(2.82+/-0.04)e2-0.11 +/- 0.09KFLCA BASEPLATE (+X)
3rctubpt 0.5640.011(2.73+/-0.09)e2-0.26 +/- 0.26KRCTU BASEPLATE (+X)
3tsmxcet 2.0710.028(2.28+/-0.24)e20.09 +/- 0.58K-X TURTLE SHELL NR HRC CEA
3tsmxspt 10.2670.112(3.16+/-1.07)e22.10 +/- 1.78K-X TURTLE SHELL NR ACIS SS
3tsmydpt 0.8700.012(2.33+/-0.10)e2-0.26 +/- 0.24K-Y TURTLE SHELL NR ACIS DPA
3tspyfet 0.3240.008(2.34+/-0.06)e2-0.20 +/- 0.17K+Y TURTLE SHELL NR HRC FEA
3tspzdet 0.6650.009(2.67+/-0.08)e2-0.06 +/- 0.20K+Z TURTLE SHELL NR ACIS DEA
3tspzspt 0.7050.009(2.71+/-0.08)e2-0.10 +/- 0.18K+Z TURTLE SHELL NR ACIS SS
3ttacs1t 0.1720.003(2.66+/-0.02)e20.02 +/- 0.07KTT at ACIS Attach #1 Abort Htr
3ttacs2t 0.1570.004(2.66+/-0.03)e20.03 +/- 0.09KTT at ACIS Attach #2 Abort Htr
3ttacs3t 0.1500.002(2.62+/-0.02)e20.06 +/- 0.03KTT at ACIS Attach #3 Abort Htr
3ttbrgbt 0.2170.012(2.59+/-0.09)e2-0.14 +/- 0.28KTT at Bearing B, Abort Htr TSC4
3tthrc1t 0.2230.013(2.68+/-0.09)e2-0.21 +/- 0.29KTT at HRC Bipod Attach #1
3tthrc2t 0.2030.013(2.73+/-0.09)e2-0.23 +/- 0.29KTT at HRC Bipod Attach #2
3tthrc3t 0.1390.004(2.68+/-0.03)e20.07 +/- 0.09KTT at HRC Bipod Attach #3
3ttralat 0.2950.009(2.47+/-0.06)e2-0.02 +/- 0.17KTT at Rail A, Abort Htr TSC3
3ttralct 0.1540.006(2.66+/-0.04)e20.07 +/- 0.13KTT at Rail C, Abort Htr TSC3
3ttvalvt 0.3950.011(2.54+/-0.08)e20.01 +/- 0.24KTT at Vent Valve, Abort Htr TSC7


If you have any questions, please contact: swolk@head.cfa.harvard.edu
