MTA Monitoring Report 09/05/25 - 09/11/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels (204,4) (185,388) (291,721) (144,194)               (258,766)
Current Warm Pixels   (910,239) (802,665) (985,393) (178,149) (803,225) (837,378) (726,537) (99,899) (526,66) (21,95)     (670,387) (849,169) (335,412)
Flickering Warm Pixels (786,117) (692,141) (700,242) (427,125) (104,31) (353,201) (617,159) (394,80) (811,637)   (233,227) (369,376) (263,317) (669,577) (877,408) (282,385) (233,102) (728,340) (884,31) (1000,214) (357,29) (74,134) (874,186) (893,490) (838,239) (182,474) (275,393) (130,26) (666,165) (881,53) (136,65) (139,109) (597,187) (333,466)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           510 512 1022   512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

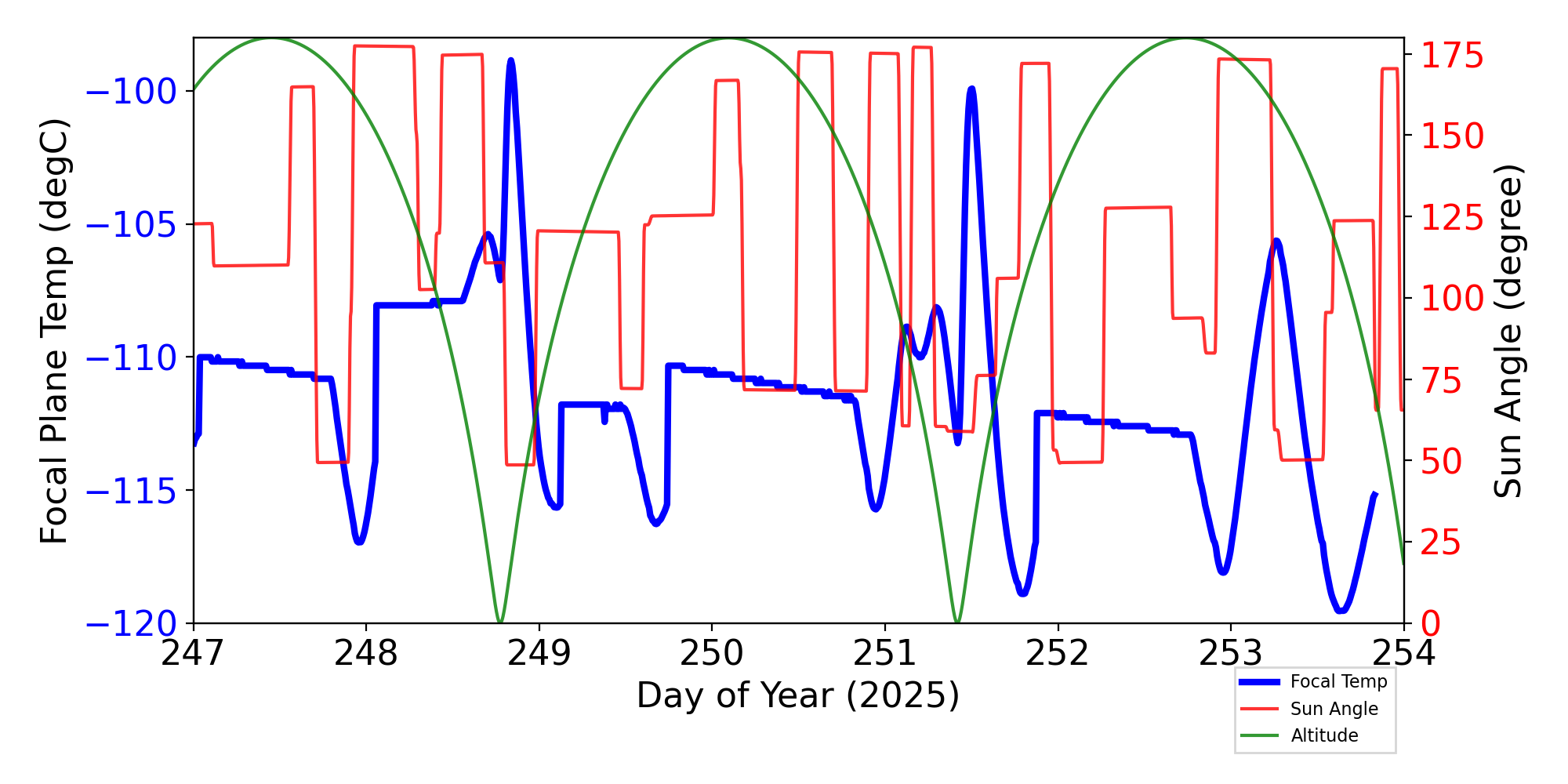

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

14 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 09/05/25 09/06/25 09/07/25 09/08/25 09/09/25 09/10/25 09/11/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AWD1TQI       (-3.35)   (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI (-3.43)     (-3.47)   (-3.43)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV     (117.00)         (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
IMHBLV       (0.00)   (85.00) (85.00) (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
IMHVLV           (79.00)   (126.0)
128.0		 (125.0)
129.0		 (2IMHVLV)Imaging Bot MCP HV Monitor
MZOBACONE   308.87 310.60   310.71   309.23 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG   302.03 302.17   302.20     (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG 303.81 307.21 307.42 304.89 307.52 304.28 306.05 (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.65 4.54 4.75 4.64 4.65 4.65 4.84 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
TCM_TX1 (268.79) (268.79)   (268.79)       (283.15)
348.15		 (269.15)
404.15		 KTRANSPONDER-1 EXT BPL TEMP
TFTERANGE   48.54 48.60 46.59 48.07 47.57 46.61 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3   (268.06)   (268.06) (268.43) (268.79)   (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
31477 ACIS-67 NONE SDSSJ095613.48+545905.8 OK OK
29754 ACIS-678 NONE 1eRASS J025933.4-120442 OK OK
30649 HRC-I NONE HD 282973 OK OK
30213 ACIS-67 NONE WISE J2246-0526 OK OK
31468 ACIS-3678 NONE GRB 250702B OK OK
29745 ACIS-3678 NONE AT2025ulz OK OK
31484 ACIS-3678 NONE AT2025ulz OK OK
28628 ACIS-0123 NONE Abell 370 OK OK
31480 HRC-I NONE G29-38 OK OK
31486 ACIS-67 NONE WISE J2246-0526 OK OK
29945 ACIS-67 NONE WISE J2246-0526 OK OK
31485 ACIS-3678 NONE AT2025ulz OK OK
29625 ACIS-23 NONE Perseus Cluster OK OK
28779 HRC-I NONE SN 2003gk OK OK
29800 ACIS-5678 HETG VV Pup OK/NA OK
28611 ACIS-0123 NONE Abell 370 OK OK
28259 ACIS-5678 NONE SDSS J165243.49+392212.1 OK OK
30652 HRC-I NONE HD 286085 OK OK
31866 HRC-I NONE EP250630b OK OK
31863 ACIS-67 NONE WISE J2246-0526 OK OK
31862 ACIS-5678 HETG VV Pup OK/NA OK
28682 ACIS-23567 NONE Abell 3017 OK OK
31867 ACIS-23678 NONE AT 2025vjw OK OK
29679 HRC-I NONE WASP-69 OK OK
29935 ACIS-67 NONE SDSS J161517.25+305832.9 OK OK

Trending

This week's focus is Ground Computations

Last reported on Jun 26.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1dppwra -0.5570.00734.06 +/- 6.18-0.00 +/- 0.16WDPA POWER A
1dppwrb -0.5180.00830.13 +/- 6.69-0.32 +/- 0.20WDPA POWER B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
flexadif 0.0410.00865.08 +/- 5.28-0.03 +/- 0.08KDIFF FLEX A & SET
flexbdif 0.2190.00761.50 +/- 4.79-0.02 +/- 0.08KDIFF FLEX B & SET
flexcdif 0.0900.01373.75 +/- 8.990.10 +/- 0.24KDIFF FLEX C & SET

If you have any questions, please contact: swolk@head.cfa.harvard.edu
