Radiation Telecon Summary and SCS107 (Sept 1, 2025 6:08 pm):
------------------------------------------------------------
A discussion of rapidly rising radiation rates was held at the beginning of
the comm
that started at 4:35PM EDT today, and it was decided to safe the science
instruments
manually during the comm.
CAP 593A was run to initiate safing, and SCS 107 began running at
approximately
244:21:09:39Z. As we are not in eclipse season, CAP 893B was run to disable
SCS 29
(Eclipse load control), and the SOP_SAFE_SAFING_ACTIONS procedure
executed.
ACIS and HRC were verified to be in a safe state.
Current plans call for recovery load development and release during the day
tomorrow,
followed by review and uplink of loads during the 8:10PM comm (Sep. 02).
Chandra will be in the radzone at that time and science observations will
start
after radzone exit at 4:43AM (Sep 03).
The team will reconvene immediately following the 9AM operations tagup
tomorrow (Sep 02 Tue) to assess the development of the radiation environment and the viability of
the return to science plan.
Update on Return to Science (Sept 2, 2025 10:01 am):
----------------------------------------------------
Immediately following the 9AM operations tagup, status was summarized and plans for return to science reviewed (see sot_yellow_alert message of 6:07 PM yesterday, Sep 01).
Radiation levels have fallen substantially and there appears to be no obstacle to implementing the return to science plan.
The load (SEP0325A) was released at 9:05PM EDT yesterday for review by noon today (Sep 02) and uplink at the 8:10PM comm today.
At that point Chandra is in the radzone; science observations will resume at radzone exit at 4:43 AM EDT on Wed (Sep 03).
We do not currently anticipate further radiation concerns with the return to science plan, but will continue observing the radiation levels and will convene a go-nogo telecon before the 8:10 PM EDT comm this evening only if needed.
Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).
The unit is now CTI/year not CTI/day.
Average of ACIS-I CCDs (MnKa) slope: | 5.214e-02 CTI/year | (1.428e-04 CTI/day) |
---|---|---|
Detrended slope: | 4.865e-02 CTI/year | (1.333e-04 CTI/day) |
We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.
New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.
CCD0 | CCD1 | CCD2 | CCD3 | CCD4 | CCD5 | CCD6 | CCD7 | CCD8 | CCD9 | |
---|---|---|---|---|---|---|---|---|---|---|
Previously Unknown Bad Pixels | (365,110) | (94,111) | ||||||||
Current Warm Pixels | (786,117) | (910,239) (985,393) | (526,66) (803,225) (726,537) (665,25) (837,378) (99,899) (178,149) | (394,80) (21,95) (811,637) | (670,387) (884,31) (849,169) | (335,412) | ||||
Flickering Warm Pixels | (692,141) | (802,665) (90,859) (427,125) | (353,201) (104,31) | (318,53) (617,159) (680,391) | (282,385) (357,303) (258,797) (233,102) (641,669) (166,738) (367,511) (233,227) (369,376) (669,577) (263,317) (161,206) (728,340) | (1000,214) | (74,134) (874,186) | (275,393) | ||
Current Hot Pixels | ||||||||||
Flickering Hot Pixels | ||||||||||
Warm column candidates | 1022 510 512 | 1022 512 | ||||||||
Flickering Warm column candidates |
For this period, 6 peaks are observed.
Day (DOY) | Temp (C) | Width (Days) | |
---|---|---|---|
240.93 | -98.21 | 1.31 | |
241.91 | -108.86 | 0.42 | |
243.57 | -99.06 | 1.07 | |
244.55 | -105.99 | 0.62 | |
245.11 | -111.84 | 0.44 | |
245.58 | -113.47 | 0.41 |

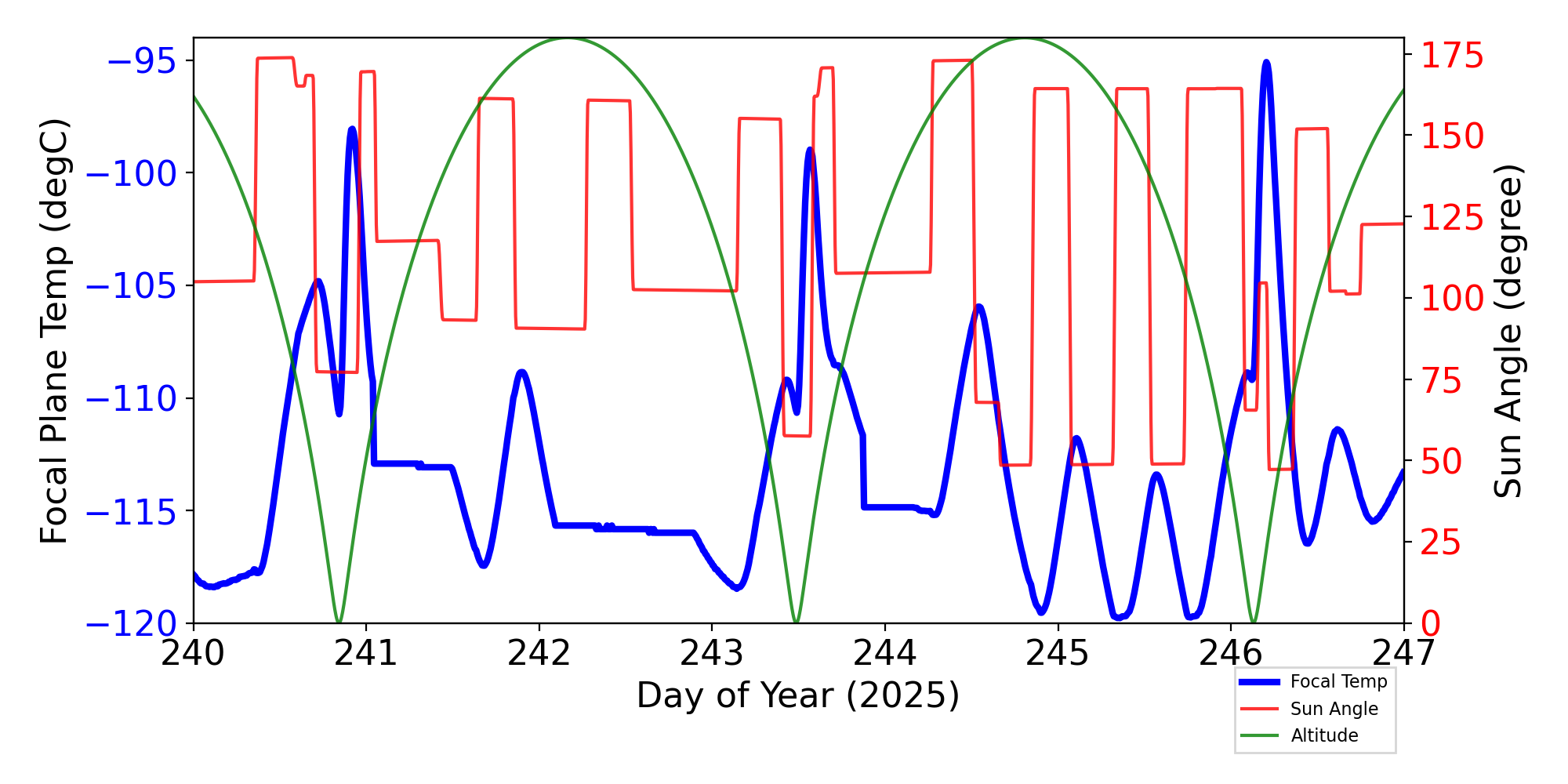

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.
14 TSC moves this period
weekly average time/step | 0.00130 s |
---|---|
mission average time/step | 0.00132 s |
New violations or new extrema are shown in blue cells.
MSID | 08/29/25 | 08/30/25 | 08/31/25 | 09/01/25 | 09/02/25 | 09/03/25 | 09/04/25 | yellow limits (lower) upper | red limits (lower) upper | Units | Description |
AWD6TQI | (-3.39) | (-1.22) 1.22 |
(-3.3) 3.3 |
AMP | WHEEL 6 TORQUE CURRENT | ||||||
CALPALV | (117.00) | (126.0) 128.0 |
(125.0) 129.0 |
V | Cal Pulser Amplitude | ||||||
CTXBPWR | (0.00) | (0.00) | (0.00) | (0.00) | (0.00) | (0.00) | (36.12) 37.0 |
(36.0) 38.0 |
DBM | TRANSMITTER B OUTPUT POWER | |
MZOBACONE | 311.91 | 312.90 | 313.80 | 313.57 | 312.24 | (260.2) 303.0 |
(250.2) 308.0 |
CONE | -Z SIDE OBA CONE | ||
OBAAVG | 303.43 | 304.26 | 305.18 | 305.15 | 304.01 | (282.5) 300.0 |
(281.4) 301.0 |
K | OBA/TFTE TEMP | ||
OBACONEAVG | 302.58 | 304.87 | (282.5) 300.0 |
(281.8) 301.0 |
K | OBA CONE AVG TEMP | |||||
OBADIAGRAD | 4.55 | 4.64 | 4.28 | 4.43 | 4.00 | 4.55 | 4.18 | (-1.11) 3.5 |
(-2.78) 3.9 |
K | OBA DIAM GRAD |
PZOBACONE | 308.66 | 309.80 | 309.71 | 308.46 | (260.2) 303.0 |
(250.2) 308.0 |
CONE | +Z SIDE OBA CONE | |||
TCM_TX1 | (268.79) | (283.15) 348.15 |
(269.15) 404.15 |
K | TRANSPONDER-1 EXT BPL TEMP | ||||||
TFTERANGE | 48.44 | 48.57 | 48.91 | 48.30 | 49.14 | (16.7) 37.5 |
(11.1) 45.0 |
K | TFTE VENT/RAD TEMP | ||
TSCTSF3 | (268.43) | (268.79) | (268.79) | (268.43) | (278.15) 359.15 |
(269.15) 483.15 |
K | SC-TS FITTING -3 TEMP |

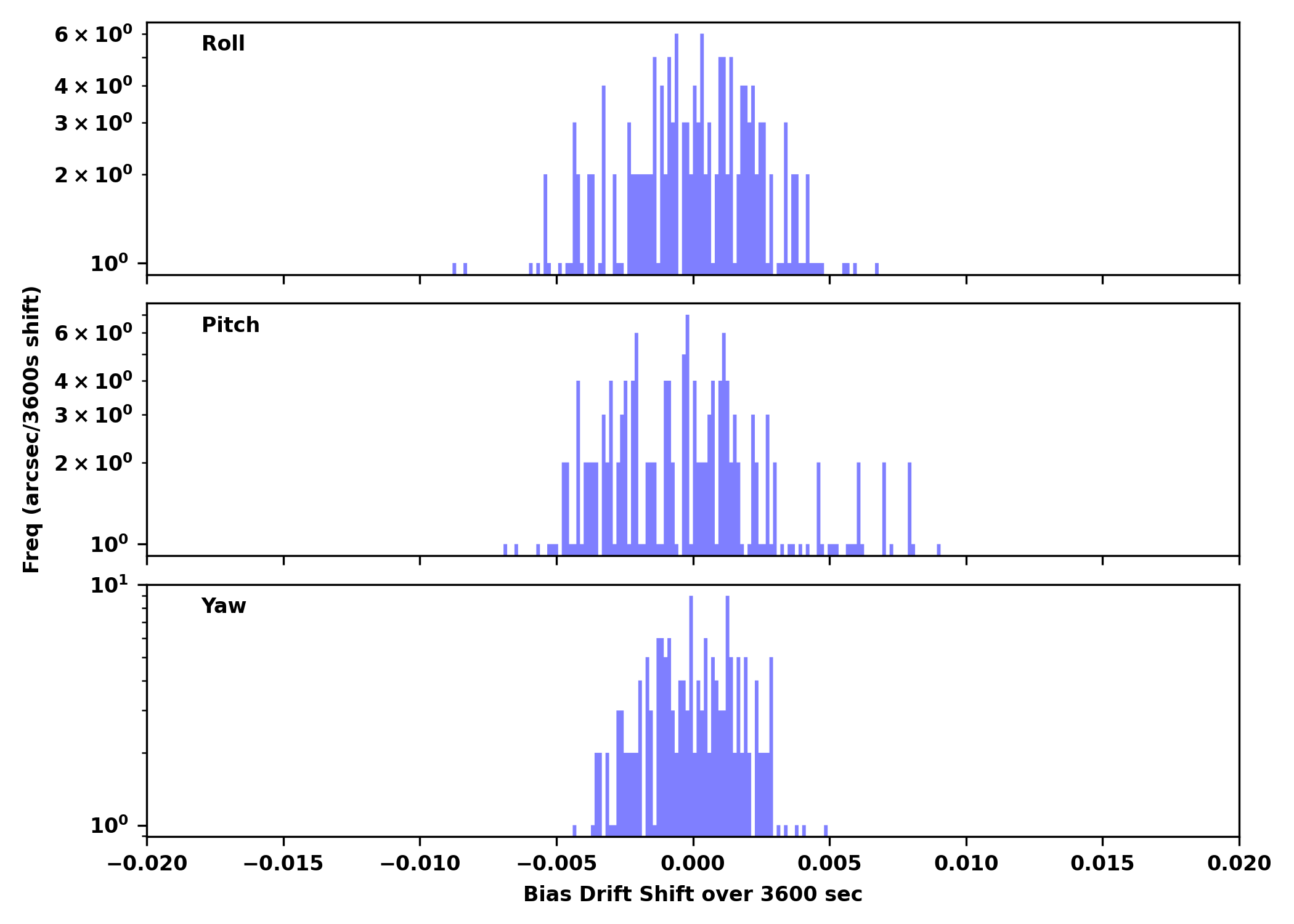

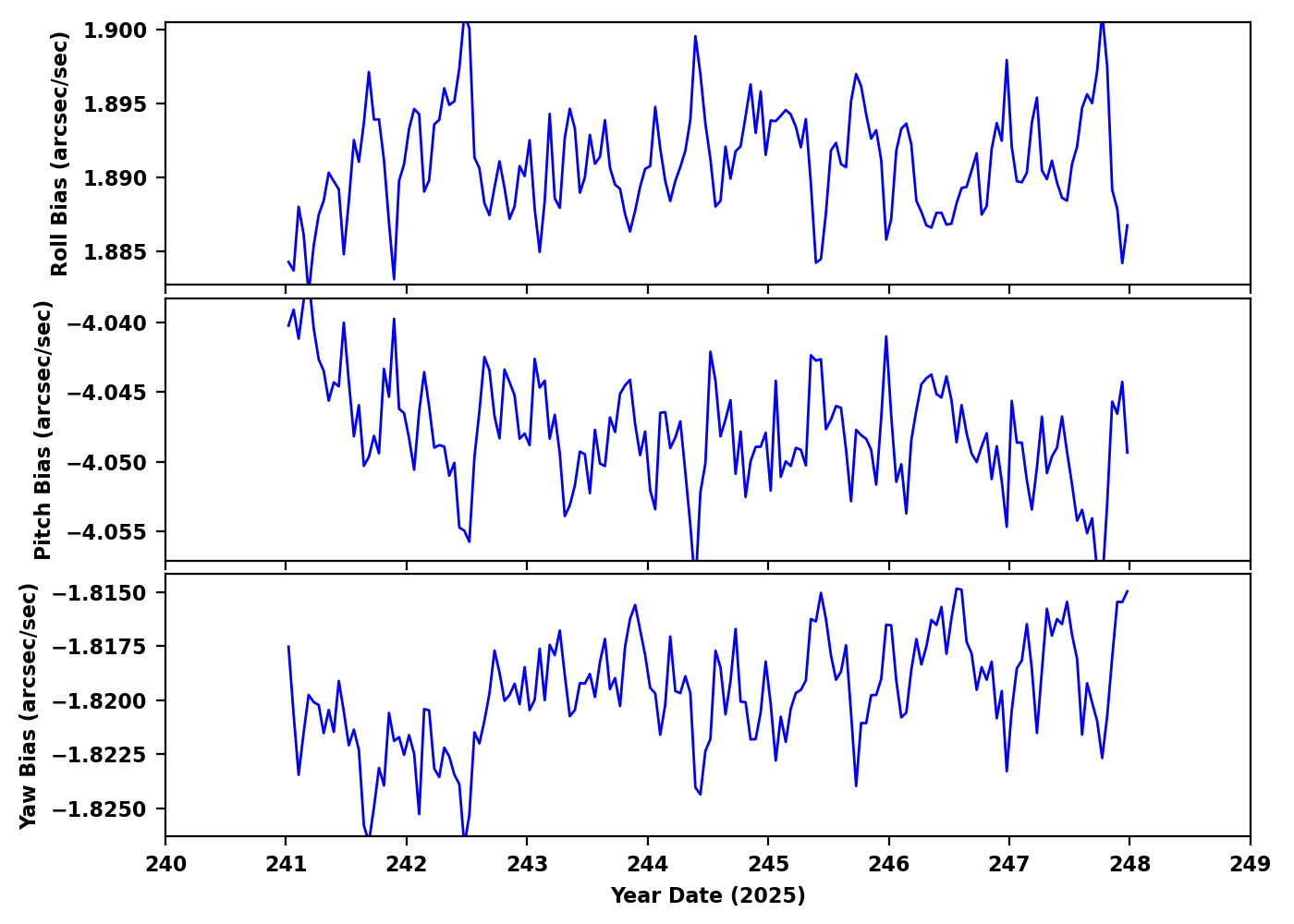

Gyro Bias Drift | Gyro Bias Drift Histogram |
---|---|
![]() |
![]() |
OBSID | DETECTOR | GRATING | TARGET | ANALYSIS | ACA |
---|---|---|---|---|---|
28623 | ACIS-0123 | NONE | Abell 370 | OK | OK |
31469 | ACIS-0123 | NONE | eMACSJ2137.2-2232 | OK | OK |
29914 | ACIS-67 | NONE | MPB2022 J1649+0812 | OK | OK |
28145 | ACIS-67 | NONE | ESO099-G004 | OK | OK |
31472 | ACIS-0123 | NONE | eMACSJ2137.2-2232 | OK | OK |
29832 | ACIS-67 | NONE | SN2025sei | OK | OK |
28545 | ACIS-23567 | NONE | NGC1385 | OK | OK |
30949 | HRC-I | NONE | Eta Car | OK | OK |
28121 | ACIS-23567 | NONE | NGC1385 | OK | OK |
31478 | ACIS-67 | NONE | SDSSJ230906.96-100837.3 | OK | OK |
29645 | ACIS-3678 | NONE | NGC2566 | OK | OK |
30655 | HRC-I | NONE | BD+21 516 | OK | OK |
30465 | ACIS-23678 | NONE | ACT-CL_J0034.4+0225 | OK | OK |
28826 | ACIS-0123 | NONE | SPT-CL J2305-2248 | OK | OK |
30647 | HRC-I | NONE | HD 282963 | OK | OK |
28609 | ACIS-0123 | NONE | Abell 370 | OK | OK |
28339 | HRC-I | NONE | G29-38 | OK | OK |
31479 | ACIS-23567 | NONE | NGC1385 | OK | OK |
31477 | ACIS-67 | NONE | SDSSJ095613.48+545905.8 | OK | OK |
This week's focus is HRC
Last reported on
Jun 19.
Only the most interesting or representative msids are shown below.
For a full listing choose the bulletted link.
MSID | Mean | RMS | Delta/Yr | Delta/Yr/Yr | Unit | Description | |
---|---|---|---|---|---|---|---|
2ceahvpt | -0.092 | 0.009 | (2.96+/-0.06)e2 | -0.14 +/- 0.09 | K | CEA RADIATOR TEMPERATURE AT CENTER | |
2chtrpzt | 0.311 | 0.004 | (2.94+/-0.03)e2 | -0.05 +/- 0.10 | K | CENTRAL ELECTRONICS BOX TEMP | |
2condmxt | -0.051 | 0.009 | (2.89+/-0.06)e2 | -0.13 +/- 0.08 | K | CONDUIT -X FACE TEMPERATURE | |
2dcentrt | -0.072 | 0.008 | (2.89+/-0.05)e2 | -0.06 +/- 0.08 | K | DETECTOR HOUSING TEMP 2 | |
2dtstatt | -0.132 | 0.009 | (2.89+/-0.06)e2 | -0.06 +/- 0.08 | K | DETECTOR HOUSING TEMP 1 | |
2fhtrmzt | -0.222 | 0.012 | (2.90+/-0.08)e2 | -0.10 +/- 0.08 | K | FRONT END ELECTRONICS BOX TEMPERATURE | |
2fradpyt | -0.192 | 0.011 | (2.86+/-0.08)e2 | -0.11 +/- 0.08 | K | FRONT END ASSEMBLY +Y AT RADIATOR CENTER TEMP | |
2pmt1t | 0.139 | 0.006 | (2.91+/-0.04)e2 | -0.11 +/- 0.10 | K | PMT 1 TEMPERATURE | |
2pmt2t | 0.140 | 0.007 | (2.93+/-0.05)e2 | -0.09 +/- 0.11 | K | PMT 2 TEMPERATURE | |
2uvlspxt | -0.027 | 0.006 | (2.86+/-0.04)e2 | -0.06 +/- 0.10 | K | UV LIGHT SHIELD NEXT TO SNOUT TEMP |
MSID | Mean | RMS | Delta/Yr | Delta/Yr/Yr | Unit | Description | |
---|---|---|---|---|---|---|---|
2fe00atm | 0.193 | 0.005 | 19.68 +/- 3.20 | -0.07 +/- 0.07 | C | Front end temperature | |
2fepratm | off | -5.243 | 0.280 | 19.61 +/- 10.53 | -1.34 +/- 4.30 | C | FE temp card temperature | on | 0.279 | 0.003 | 22.04 +/- 2.64 | -0.14 +/- 0.08 |
2iminatm | off | -3.754 | 0.211 | 16.58 +/- 7.77 | -0.71 +/- 3.91 | C | Imaging det temperature | on | 0.237 | 0.004 | 16.73 +/- 2.76 | -0.06 +/- 0.10 |
2lvplatm | off | -3.555 | 0.196 | 24.65 +/- 7.27 | -2.16 +/- 3.37 | C | LVPS plate temperature | on | 0.230 | 0.003 | 25.87 +/- 2.29 | -0.12 +/- 0.07 |
2prbscr | off | -0.001 | 0.002 | 1.74 +/- 0.07 | -0.05 +/- 0.15 | AMP | Primary bus current | on | -8.701e-04 | 8.346e-05 | 1.60 +/- 0.05 | (1.91+/-14.58)e-4 |
2prbsvl | -0.109 | 5.253e-04 | 28.15 +/- 0.81 | 0.00 +/- 0.01 | V | Primary bus voltage |
