MTA Monitoring Report 08/22/25 - 08/28/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (910,239) (985,393) (178,149) (665,25) (837,378) (726,537) (803,225) (526,66) (21,95)     (670,387) (849,169) (335,412)
Flickering Warm Pixels   (427,125) (802,665) (90,859) (104,31) (99,899) (680,391) (931,553) (318,53) (617,159) (811,637) (394,80)   (641,669) (233,227) (669,577) (161,206) (258,797) (263,317) (357,303) (369,376) (728,340) (233,102) (166,738) (367,511) (282,385) (1000,214) (884,31) (74,134) (368,231) (126,856)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 1022 510   512 1022
Flickering Warm column candidates                 520

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

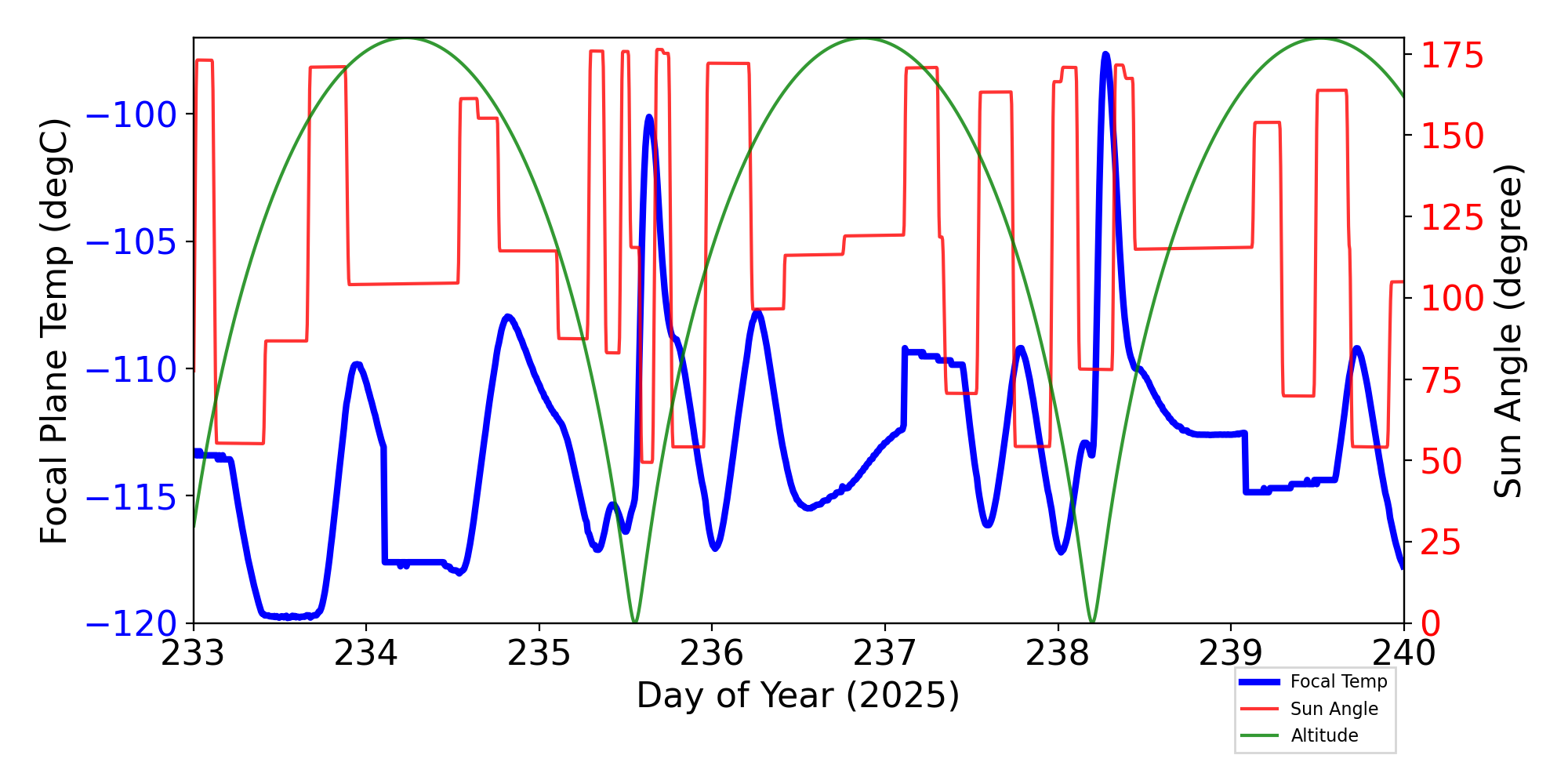

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

12 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 08/22/25 08/23/25 08/24/25 08/25/25 08/26/25 08/27/25 08/28/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AWD1TQI   (-3.39)   (-3.39)       (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI   (-3.39)   (-3.43)       (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00)   (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
ESAMYI   (0.06)           (5.63)
30.15		 (5.3)
33.0		 AMPS/A -Y CURRENT
ESAPYI   (0.14)           (5.54)
30.15		 (5.2)
33.0		 AMPS/A +Y CURRENT
IMHBLV       (79.00)       (126.0)
128.0		 (125.0)
129.0		 (2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 311.11 312.44 310.01 310.25 309.88 310.69 312.45 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 302.76 303.86 302.75 303.04 302.34 303.04 303.88 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG     308.18   307.73     (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.46 4.47 4.50 4.64 4.61 4.57 4.56 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE   308.24         308.43 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCM_TX1     (268.43)         (283.15)
348.15		 (269.15)
404.15		 KTRANSPONDER-1 EXT BPL TEMP
TFTERANGE   48.73 48.94 49.01 48.26 48.42 47.73 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3     (268.43) (268.43) (268.43) (268.79)   (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

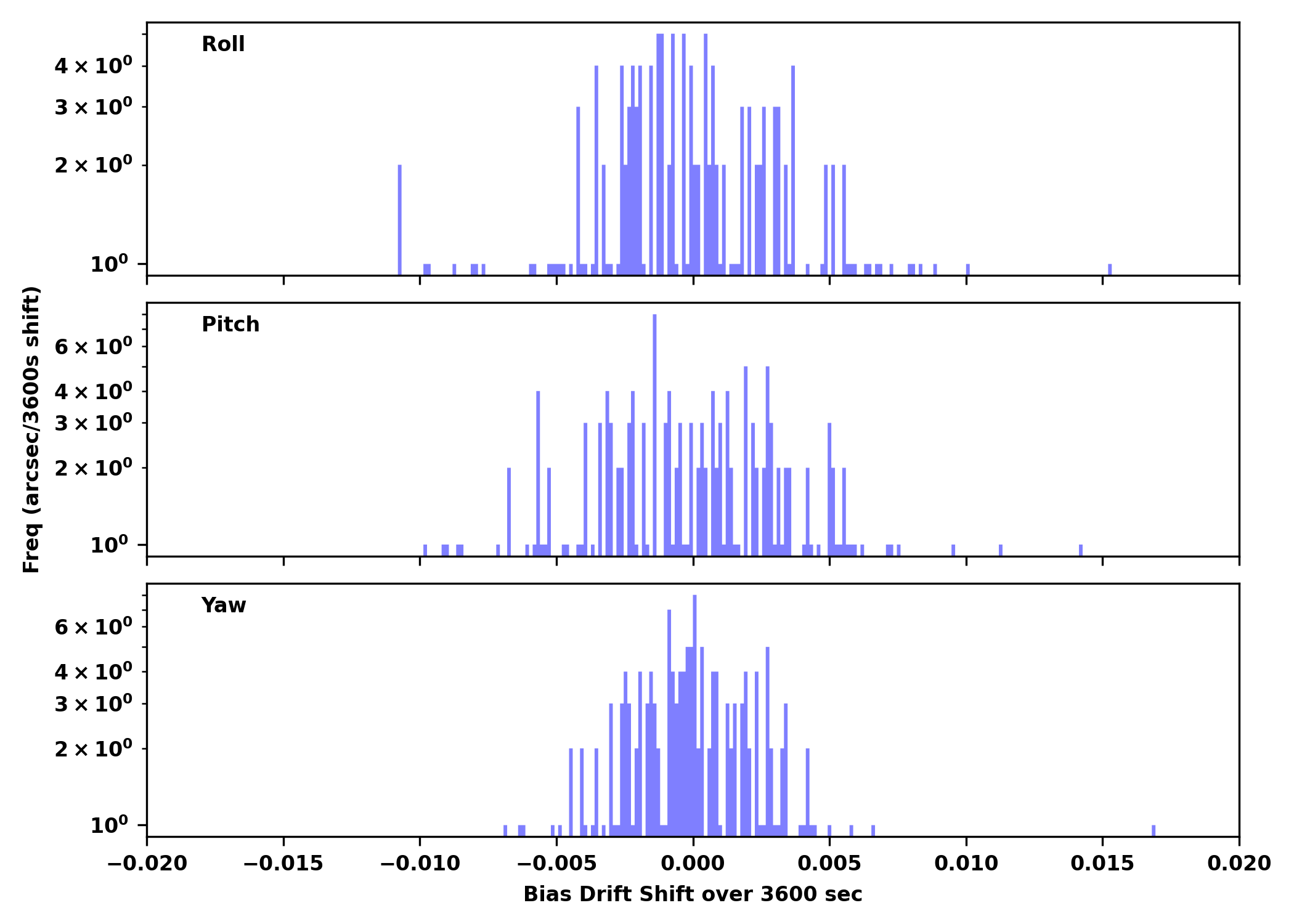

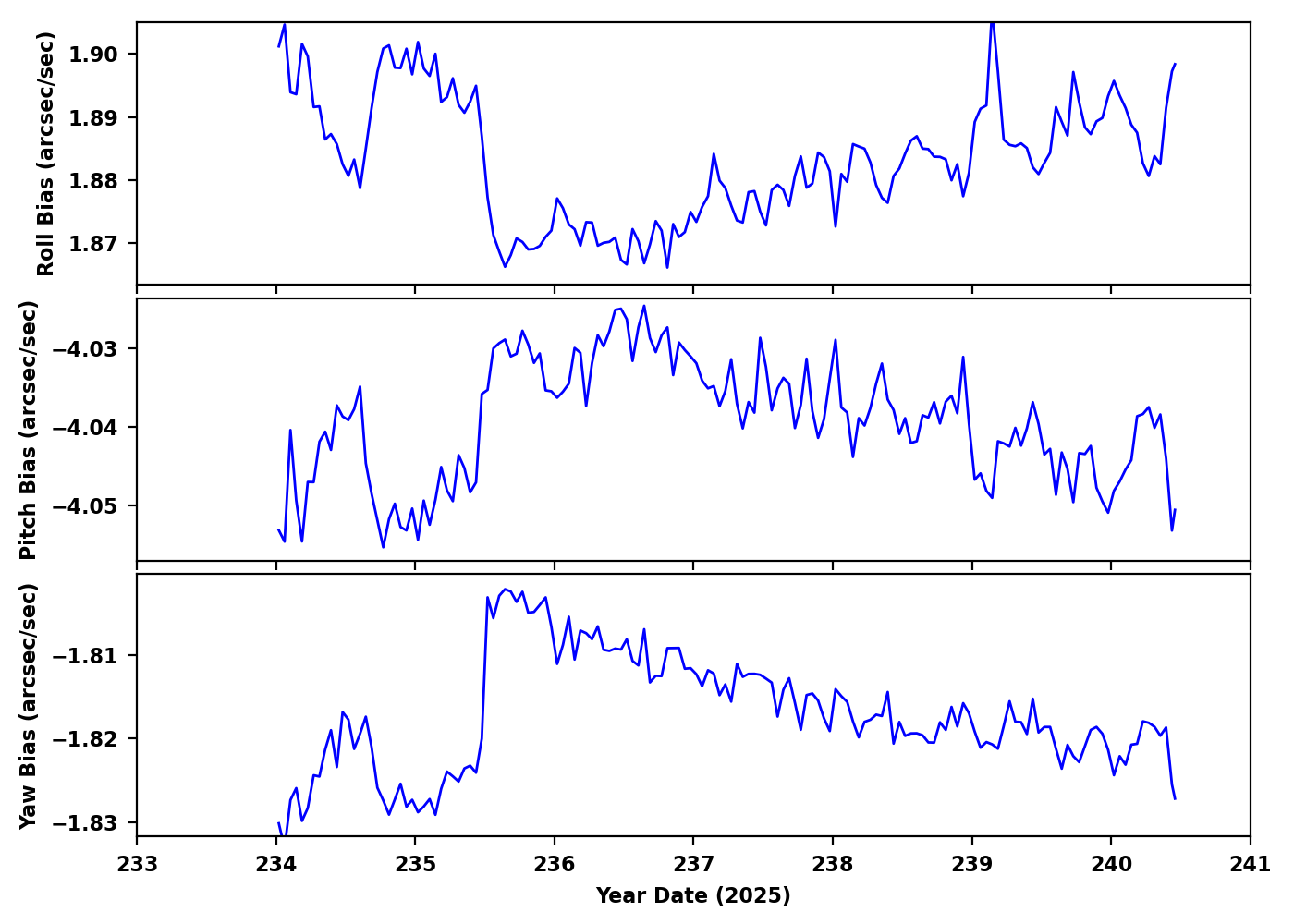

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
30010 ACIS-67 NONE GAMA5240292 OK OK
28815 ACIS-0123 NONE PSZ2G041.43-66.81 OK OK
28120 ACIS-67 NONE NGC1300 OK OK
30583 ACIS-67 NONE SMC 2857 OK OK
29836 ACIS-0123 NONE PSR J1418-6058 OK OK
30501 ACIS-56789 HETG Vela X-1 OK/NA OK
30528 ACIS-67 NONE LBQS 2211-1915 OK OK
31357 ACIS-67 NONE SDSSJ035011.17-060501.5 OK OK
28629 ACIS-0123 NONE Abell 370 OK OK
28671 ACIS-567 NONE NGC410 OK OK
30215 ACIS-67 NONE WISE J2246-0526 OK OK
31034 HRC-I NONE Eta Car OK OK
28856 ACIS-0123 NONE SPT-CL J2305-2248 OK OK
30853 ACIS-23678 NONE PSR J0901-4046 OK OK
30458 HRC-I NONE Eta Car OK OK
30035 ACIS-567 NONE ACT-CL J2335.6-2950 OK OK
28621 ACIS-0123 NONE Abell 370 OK OK
31470 ACIS-0123 NONE SPT-CL J2305-2248 OK OK
28694 ACIS-01236 NONE RXCJ1314.4-2515 OK OK
28542 ACIS-23567 NONE NGC1385 OK OK
31471 ACIS-67 NONE WISE J2246-0526 OK OK

Trending

This week's focus is ACIS

Last reported on Jun 12.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1cbat -0.0230.004(2.09+/-0.03)e20.02 +/- 0.05KCAMERA BODY TEMP. A
1cbbt -0.1200.005(2.10+/-0.03)e20.00 +/- 0.05KCAMERA BODY TEMP. B
1crat 0.2160.003(1.48+/-0.03)e2-0.00 +/- 0.05KCOLD RADIATOR TEMP. A
1crbt 0.2330.004(1.48+/-0.03)e2-0.01 +/- 0.05KCOLD RADIATOR TEMP. B
1dactbt 0.1180.003(2.58+/-0.02)e20.07 +/- 0.06KDA COLLIMATOR TEMP. B
1deamzt 0.5120.006(2.87+/-0.06)e2-0.10 +/- 0.12KDEA -Z PANEL TEMP
1dpamyt 0.4540.007(2.88+/-0.06)e2-0.22 +/- 0.14KDPA -Y PANEL TEMP
1dpamzt 0.4270.006(2.91+/-0.05)e2-0.17 +/- 0.13KDPA -Z PANEL TEMP
1oahat 0.1310.004(2.44+/-0.02)e2-0.00 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. A
1oahbt 0.1320.003(2.41+/-0.02)e20.06 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. B
1pdeaat -0.0280.009(3.04+/-0.06)e2-0.24 +/- 0.21KPSMC DEA PS A TEMP
1pdeabt 0.0490.009(2.96+/-0.06)e2-0.22 +/- 0.21KPSMC DEA PS B TEMP
1wrat 0.0980.003(1.91+/-0.02)e2-0.01 +/- 0.05KWARM RADIATOR TEMP. A
1wrbt 0.0870.003(1.91+/-0.02)e2-0.01 +/- 0.05KWARM RADIATOR TEMP. B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk1 0.0089.677e-050.24 +/- 0.07-(2.51+/-17.65)e-4CDPA Thermistor 1 - BEP PC Board
deahk2 0.0089.923e-050.22 +/- 0.07-(3.16+/-18.22)e-4CDPA Thermistor 2 - BEP Oscillator
deahk3 0.0021.300e-040.26 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 3 - FEP 0 Mongoose
deahk4 0.0051.176e-040.23 +/- 0.07-(6.47+/-23.78)e-4CDPA Thermistor 4 - FEP 0 PC Board
deahk5 0.0041.274e-040.26 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 5 - FEP 0 ACTEL
deahk6 0.0041.231e-040.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 6 - FEP 0 RAM
deahk7 0.0061.145e-040.20 +/- 0.07-(8.01+/-22.84)e-4CDPA Thermistor 7 - FEP 0 Frame Buf
deahk8 0.0071.251e-040.30 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 8 - FEP 1 Mongoose
deahk9 0.0071.179e-040.26 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 9 - FEP 1 PC Board
deahk10 0.0071.272e-040.29 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 10- FEP 1 ACTEL
deahk11 0.0071.253e-040.28 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 11- FEP 1 RAM
deahk12 0.0071.171e-040.22 +/- 0.08-(8.28+/-23.21)e-4CDPA Thermistor 12- FEP 1 Frame Buf
deahk13 0.000e+000.000e+00(0.00+/-0.00)e0(0.00+/-0.00)e0CDEA Video Board ADC
deahk15 0.0410.040-3.90 +/- 21.69-0.01 +/- 0.02CFocal Plane Temp. Board 12
deahk16 0.0430.041-2.21 +/- 21.70-(9.71+/-205.00)e-4CFocal Plane Temp. Board 11

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk17 -1.859e-051.199e-05-0.00 +/- 0.01(6.71+/-4.81)e-6VDPA Ground Reference 1
deahk18 -9.332e-059.897e-050.05 +/- 0.05-(1.39+/-2.92)e-5VDPA 5V Housekeeping A
deahk19 -1.896e-051.199e-05-0.00 +/- 0.01-(9.78+/-45.05)e-7VDPA Ground Reference 2
deahk20 -7.094e-059.897e-050.05 +/- 0.05(1.84+/-2.44)e-5VDPA 5V Housekeeping B
deahk25 -9.901e-051.958e-040.30 +/- 0.10(9.43+/-5.17)e-5VPrimary Raw DEA 28V DC
deahk26 -2.491e-041.966e-040.25 +/- 0.10(8.55+/-5.01)e-5VPrimary Raw DEA 24V DC
deahk27 2.597e-051.023e-04-0.16 +/- 0.06(6.41+/-8.01)e-5VPrimary Raw DEA -15.5V
deahk28 -1.139e-049.736e-050.16 +/- 0.05-(2.19+/-5.97)e-5VPrimary Raw DEA +15.5V
deahk29 -6.506e-051.007e-04-0.06 +/- 0.05-(1.73+/-31.75)e-6VPrimary Raw DEA -6V DC
deahk30 -7.041e-059.882e-050.06 +/- 0.05(2.29+/-2.35)e-5VPrimary Raw DEA +6V DC
deahk31 -9.755e-061.196e-05(5.94+/-60.00)e-4(3.37+/-2.94)e-6mAmpRelative Dose Rad. Monitor Side A
deahk32 -9.159e-061.197e-05(1.03+/-60.00)e-4(8.65+/-27.51)e-7VInterface Ground Reference
