MTA Monitoring Report 05/02/25 - 05/08/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels             (422,24) (428,122) (84,34)
Current Warm Pixels       (21,95) (680,391)     (884,31) (849,169) (335,412)
Flickering Warm Pixels (786,117) (427,125) (985,393) (910,239) (99,899) (837,378) (178,149) (526,66) (726,537) (803,225) (104,31) (394,80) (811,637) (318,53) (931,553)   (877,408) (728,340) (233,227) (669,577) (263,317) (161,206) (369,376) (367,511) (357,303) (233,102) (282,385) (670,387) (1000,214) (74,134) (368,231) (126,856) (838,239) (275,393) (295,978) (447,769) (139,109) (34,645) (136,65) (333,466) (881,53) (597,187) (178,399) (893,490) (332,324) (182,474) (675,304)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           1022 510 512   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 3 peaks are observed.

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

10 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 05/02/25 05/03/25 05/04/25 05/05/25 05/06/25 05/07/25 05/08/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AFTBLKHDT   308.02           (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI     (-3.39)   (-3.39)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI     (-3.43)   (-3.43)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
HRMAAVG     (304.67)     (303.98)   (306.0)
308.0		 (305.0)
309.0		 KAVG OF HRMA METRICS
MZOBACONE     312.28 313.50 311.86 310.58 312.81 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG           303.05 304.36 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBADIAGRAD 4.60 4.57 4.25 4.19 4.13 4.59 4.51 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 308.65 310.22 309.29 309.57 308.73   308.77 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TFTERANGE     49.44   48.78 47.68 48.73 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

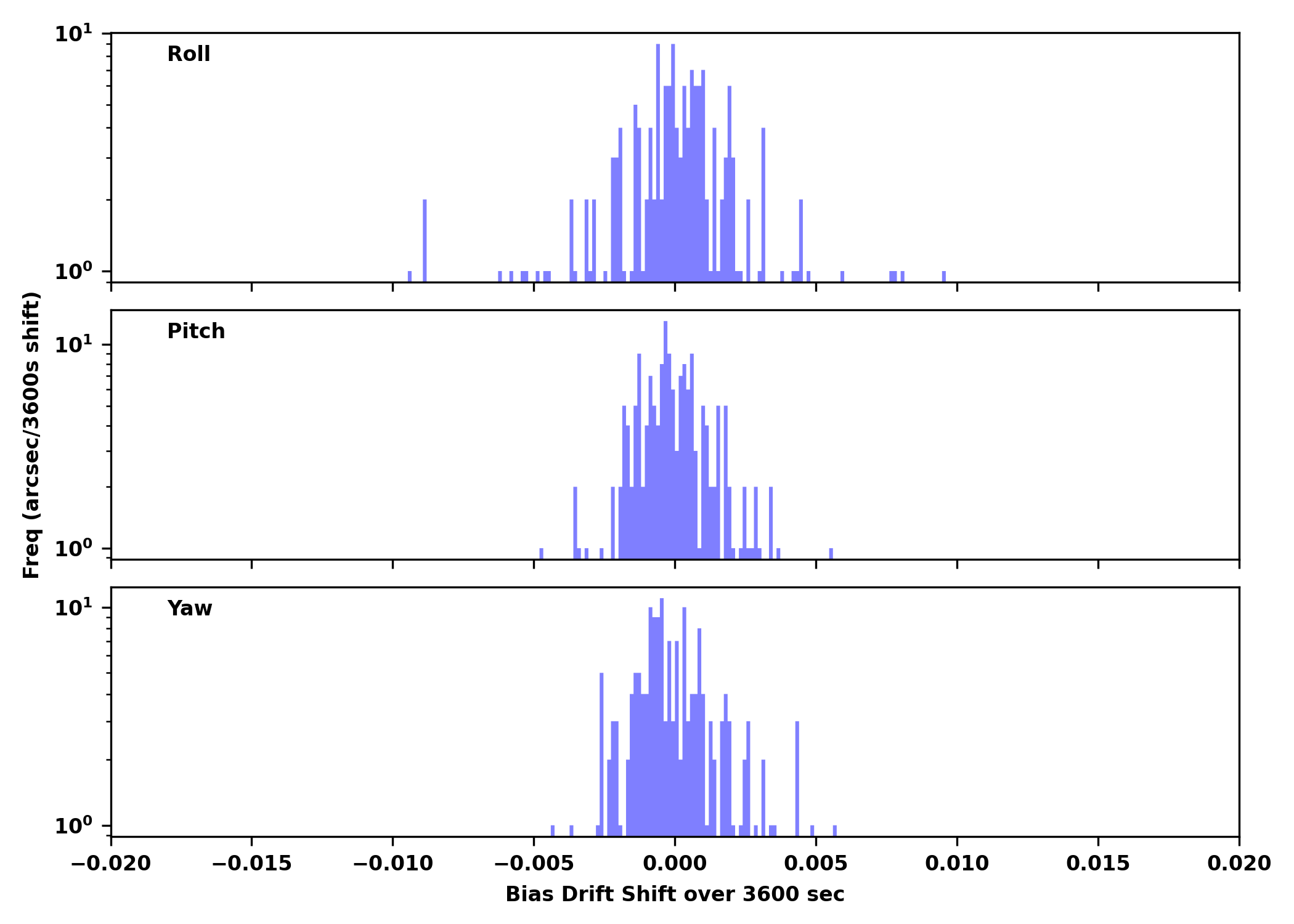

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
30144 ACIS-3678 NONE NGC1317 OK OK
29783 ACIS-5678 HETG 4U 1630-47 CC/NA OK
30730 ACIS-2567 NONE SDSS J082730.64+192159.9 OK OK
30915 ACIS-5678 HETG 4U 1630-47 CC/NA OK
29769 ACIS-678 NONE 1eRASS J143018.7-074535 OK OK
29641 ACIS-3678 NONE NGC1809 OK OK
29768 ACIS-678 NONE 1eRASS J140808.8-090341 OK OK
30913 ACIS-0123 NONE HEP G207.018-16.301 OK OK
30160 ACIS-3678 NONE NGC3137 OK OK
28850 ACIS-01236 NONE [ZCA2021] BOSS1244 SW OK OK
28098 ACIS-23678 NONE WAS 69 OK OK
28524 ACIS-3567 NONE GW170817 OK OK
30786 ACIS-67 NONE PSO J170.8326+20.2083 OK OK
28780 HRC-I NONE SN 1970G OK OK
30917 ACIS-67 NONE GRB 250419A OK OK
30886 ACIS-67 NONE AT2024kmq OK OK
28778 HRC-I NONE SN 1979C OK OK
30920 ACIS-23567 NONE GW170817 OK OK
28149 ACIS-67 NONE PSO J170.8326+20.2083 OK OK
30885 ACIS-67 NONE AT2024lhc OK OK
29929 ACIS-67 NONE SDSS J112657.84+364713.3 OK OK
29930 ACIS-67 NONE SDSS J153227.22+041927.8 OK OK
30092 ACIS-456789 HETG TV Cassiopeia OK/NA OK
30093 ACIS-5678 HETG TV Cassiopeia OK/NA OK
30197 ACIS-67 NONE NGC5728 OK OK
28579 ACIS-3678 NONE NGC 4102 OK OK
30525 ACIS-0123 NONE RXJ 1131-1231 OK OK
28691 ACIS-0123 NONE RXCJ1314.4-2515 OK OK
29944 ACIS-67 NONE 8C 1435+638 OK OK

Trending

This week's focus is Ground Computed Gradients

Last reported on Feb 20.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hcapgrd1 -1.1310.3944.03 +/- 251.65(7.41+/-17.89)e-5KRT100-RT101: HRMA CAP circum
hcapgrd2 -1.1070.3633.94 +/- 232.16(7.84+/-4.61)e-4KRT100-RT104: HRMA CAP ridial
hcapgrd3 0.2230.115-0.88 +/- 73.51-(2.93+/-2.19)e-4KRT101-RT102: HRMA CAP circum
hcapgrd4 0.0240.045-0.09 +/- 28.60(8.45+/-4.26)e-4KRT101-RT104: HRMA CAP ridial
hcapgrd5 0.2430.072-0.68 +/- 46.02(2.21+/-2.44)e-4KRT102-RT103: HRMA CAP circum
hcapgrd6 -0.2770.1080.92 +/- 68.79(8.02+/-5.51)e-4KRT102-RT105: HRMA CAP ridial
hcapgrd7 -0.4670.1751.57 +/- 111.77-(5.84+/-17.13)e-5KRT103-RT101: HRMA CAP circum

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hfapgrd1 0.8550.292-3.03 +/- 186.79-(6.75+/-14.93)e-5KRT1-RT2: HRMA Forward Aperture Plate
hfapgrd2 0.1080.047-0.35 +/- 30.000.00 +/- 0.00KRT1-RT4: HRMA Forward Aperture Plate
hfapgrd3 -0.6450.2092.31 +/- 133.40(1.40+/-1.60)e-4KRT2-RT3: HRMA Forward Aperture Plate
hfapgrd4 -0.2100.0770.81 +/- 49.110.00 +/- 0.00KRT2-RT5: HRMA Forward Aperture Plate
hfapgrd5 -0.2100.0900.72 +/- 57.39-(2.80+/-1.29)e-4KRT3-RT1: HRMA Forward Aperture Plate
hfapgrd6 0.3060.095-1.07 +/- 60.880.00 +/- 0.00KRT3-RT6: HRMA Forward Aperture Plate
hfapgrd7 0.5360.173-1.87 +/- 110.55-(1.06+/-2.17)e-4KRT4-RT5: HRMA Forward Aperture Plate
hfapgrd8 -0.1290.0420.43 +/- 26.84(1.43+/-2.61)e-4KRT5-RT6: HRMA Forward Aperture Plate
hfapgrd9 -0.4070.1361.44 +/- 86.86-(1.36+/-10.21)e-5KRT6-RT4: HRMA Forward Aperture Plate

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hsstrtgrd1 16.6735.796-63.30 +/- 3706.05-0.03 +/- 0.03KRT75-RT76: Spacecraft Struts
hsstrtgrd2 -1.1684.062-0.98 +/- 2595.890.01 +/- 0.03KRT76-RT77: Spacecraft Struts
hsstrtgrd3 -32.61313.076(1.15+/-83.60)e2-0.01 +/- 0.01KRT77-RT78: Spacecraft Struts
hsstrtgrd4 10.0464.263-29.71 +/- 2725.24-0.02 +/- 0.03KRT78-RT79: Spacecraft Struts
hsstrtgrd5 12.2763.665-39.55 +/- 2343.970.05 +/- 0.03KRT79-RT80: Spacecraft Struts
hsstrtgrd6 -5.2142.28518.38 +/- 1460.79(7.90+/-27.65)e-4KRT80-RT75: Spacecraft Struts
