5 × 5 boxcar smoothed median XRCF setttings flat field map plots

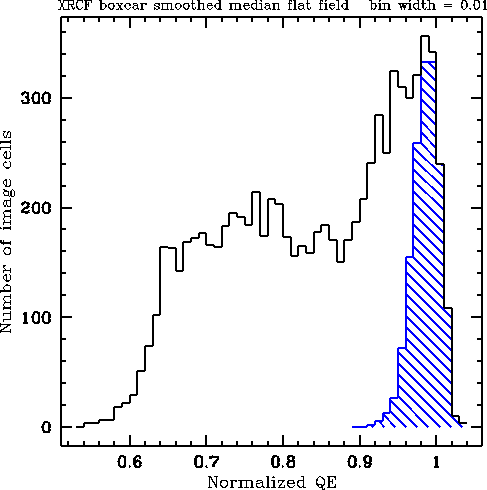

Histogram for the CsI coated area and the central area of the map.

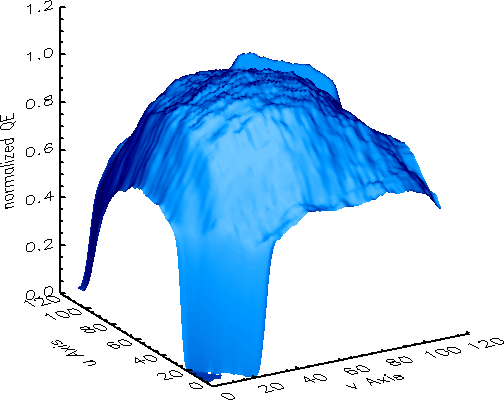

All three plots are of the CsI coated area of the MCP. The histogram ignores the leftmost third (first 40 v columns) of the detector, in order to avoid the portion affected by vignetting. The median calculation excluded the Ni L and Ag L data. The data are normalized such that the mean value in the central region of the MCP is unity.

Download:   FITS image   [normalized data]
