HRC-S Flight settings Al flat field gain map plots

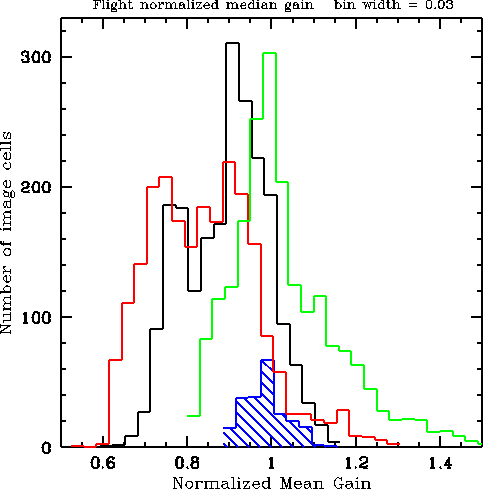

Histogram for the exposed area and the central area of segment 0.

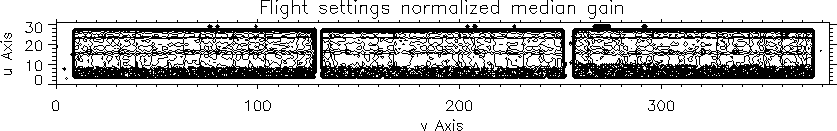

              Segment +1               Segment -1

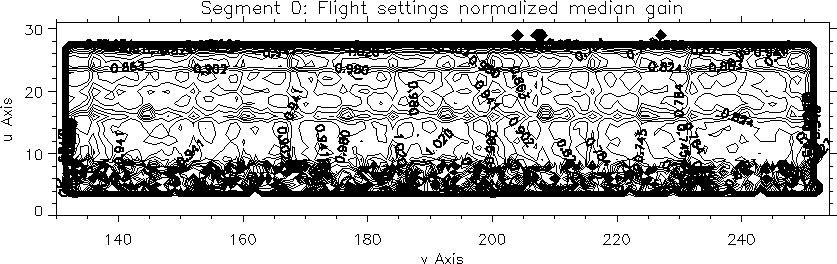

entire S detector segment 0

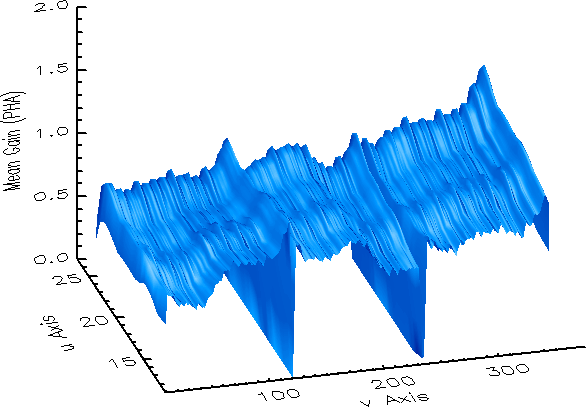

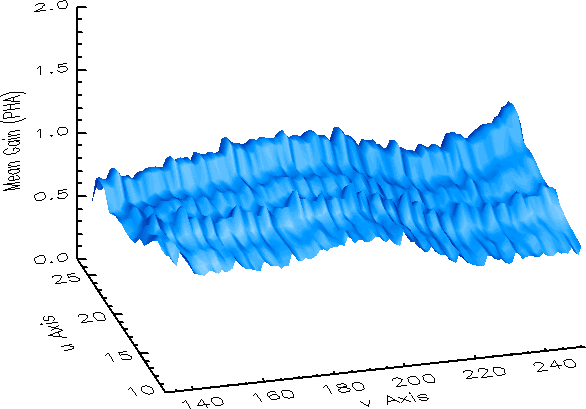

All three plots are of the exposed area of the MCP's. The surface plots have been smoothed with a 2 × 2 boxcar.

Press shift and click left to download FITS image.
