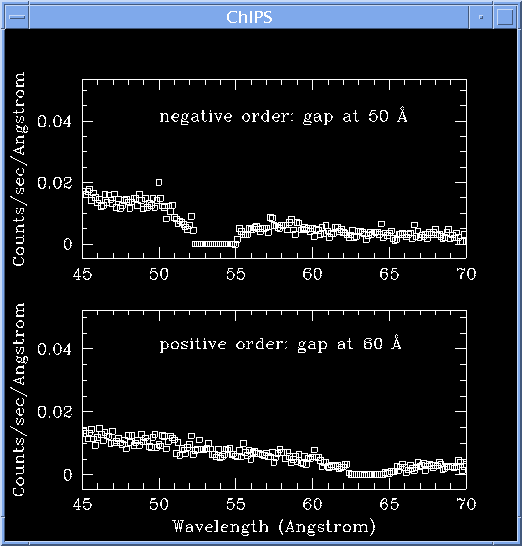

Image 2: Regions where the data dithered into a plate gap
There are two plate gaps in the HRC-S detector: one at ~50 Å and the other at ~60 Å. The effect of dithering into these gaps can be seen in the negative-order (top frame) and positive-order data (bottom frame).
